Installing expansion cards
PC104 expansion card
The terminal may be fitted with two PC104 cards. A universal cover including
spacers, screws and lock washers (PC104 universal cover), and an assembly kit
including expansion contact and spacers (PC104 kit) are available as additions
to the PC104 cards.

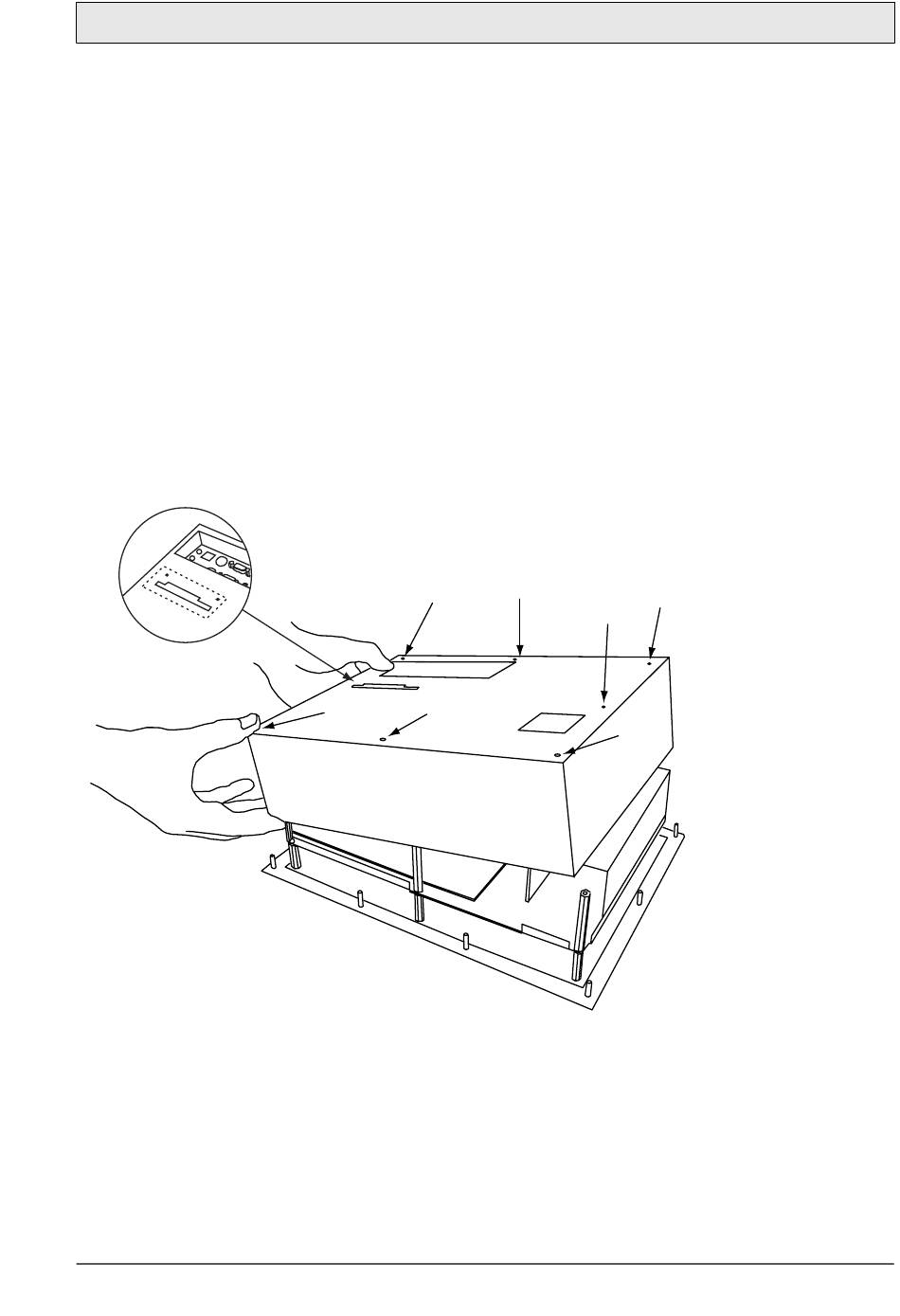

– Make sure that the power is turned OFF and that appropriate safety precau-
tions regarding electrostatic discharge (ESD) are applied. Loosen the seven
screws and lift off the casing. If other expansion cards are mounted, they must
be removed prior to lifting off the case. Also remove the PC104 contact cov-
ering plate.
Beijer Electronics, MA00670
Installing expansion cards
1-15
