Replacing the background lighting

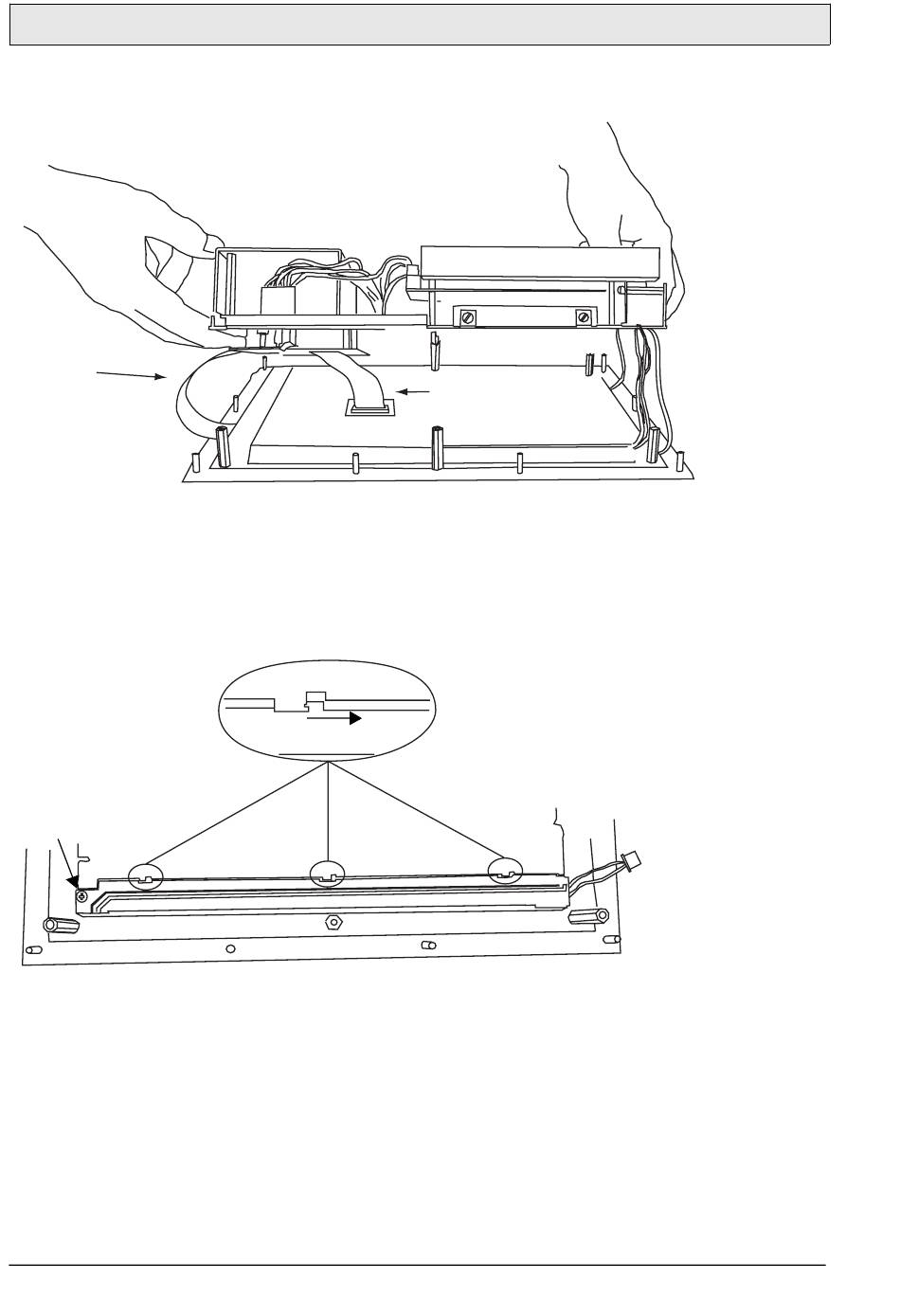

– Carefully lift the plate.
– Unfasten the cables to the touch contact, lighting, display and light emitting
diode (LED) indicated by the arrows.
– Loosen the screw for the lighting element and lift as far as possible. Then
move the lighting element to the right and lift it.
Screw for the
lighting element
– Insert the new lighting element and re-assemble the terminal following the
instructions above in reverse order.
1-14
Lighting element
Beijer Electronics, MA00670
