How to use the seat unit
6
10
7
11
12
8
14
9
15
10
16
Manual Cerox 2.0 v. 2.5

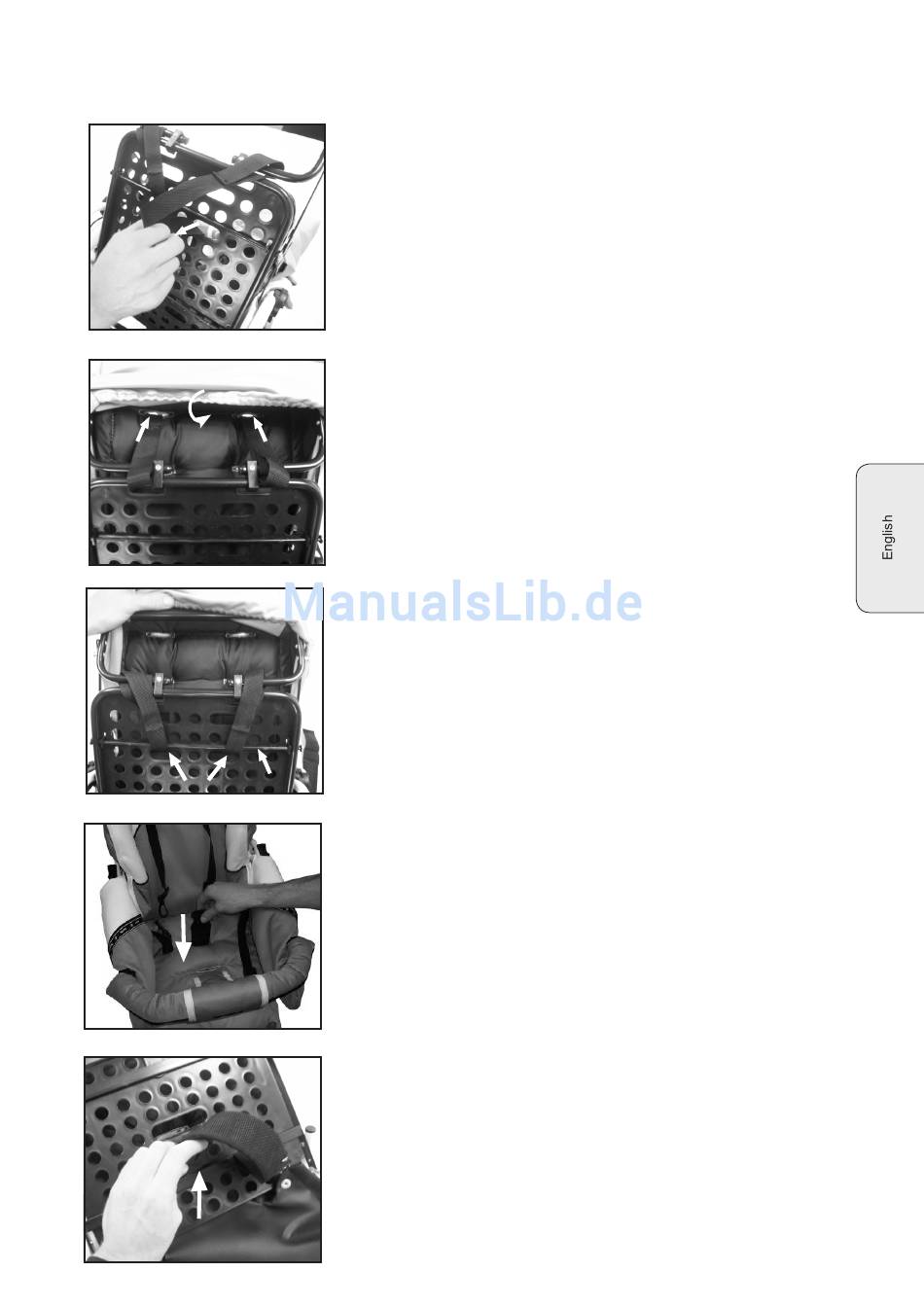

• Insert the straps into the highest holes in the fabrics (12).
• Reposition the fabrics over the back (11) and reposition the shoul-
der pads
12
positioning from the highest to the lowest holes.
• In order to move the shoulder straps from the highest to the lowest
holes, make the above steps in reverse order. Note that the straps
do not go through any holes in the plastic back when the highest
holes are used (12).
WARNING
• When positioning the straps to the lowest holes ensure that the
13
straps go around the metal pole (13) and in to the holes on the
7
plastic back (14).
positioning of crotch strap.
positioning from the inner to the outer hole.
• In order to move the crotch strap from the inner to the outer hole,
first pull the strap through the fabrics, the foot rest cover and the
plastic bottom (15).
• Insert the strap through the outer hole in the plastic bottom (16), the
foot rest cover and the fabric (17).
positioning from the outer to the inner hole.
• In order to move the crotch strap from the outer to the inner hole,
make the above steps in reverse order.
