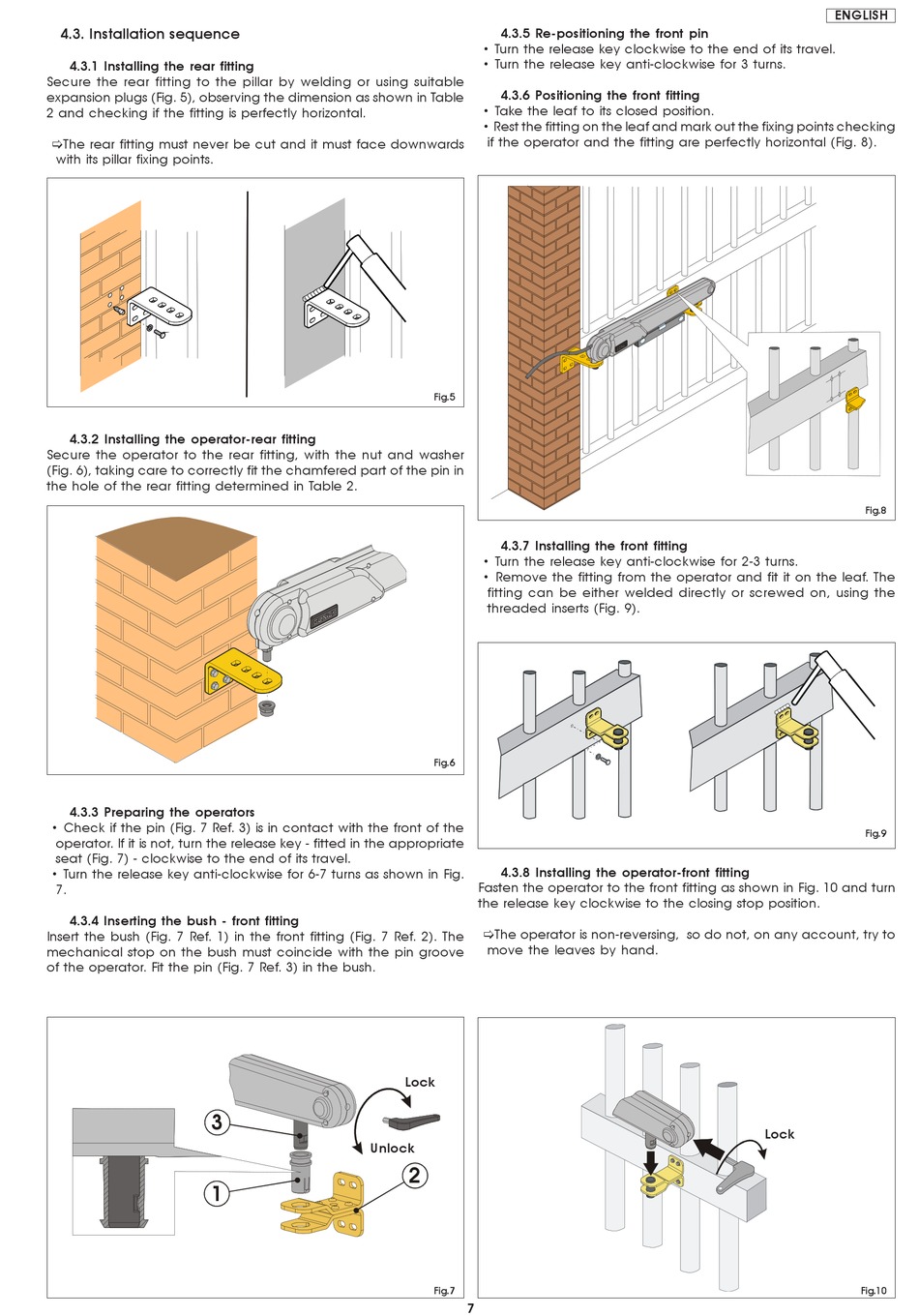

4.3. Installation sequence

4.3.1 Installing the rear fitting
Secure the rear fitting to the pillar by welding or using suitable
expansion plugs (Fig. 5), observing the dimension as shown in Table
2 and checking if the fitting is perfectly horizontal.
!The rear fitting must never be cut and it must face downwards
with its pillar fixing points.
4.3.2 Installing the operator-rear fitting
Secure the operator to the rear fitting, with the nut and washer
(Fig. 6), taking care to correctly fit the chamfered part of the pin in
the hole of the rear fitting determined in Table 2.
4.3.3 Preparing the operators
• Check if the pin (Fig. 7 Ref. 3) is in contact with the front of the
operator. If it is not, turn the release key - fitted in the appropriate
seat (Fig. 7) - clockwise to the end of its travel.
• Turn the release key anti-clockwise for 6-7 turns as shown in Fig.
7.
4.3.4 Inserting the bush - front fitting
Insert the bush (Fig. 7 Ref. 1) in the front fitting (Fig. 7 Ref. 2). The
mechanical stop on the bush must coincide with the pin groove
of the operator. Fit the pin (Fig. 7 Ref. 3) in the bush.
3
1
4.3.5 Re-positioning the front pin
• Turn the release key clockwise to the end of its travel.
• Turn the release key anti-clockwise for 3 turns.
4.3.6 Positioning the front fitting
• Take the leaf to its closed position.
• Rest the fitting on the leaf and mark out the fixing points checking
if the operator and the fitting are perfectly horizontal (Fig. 8).
Fig.5
4.3.7 Installing the front fitting
• Turn the release key anti-clockwise for 2-3 turns.
• Remove the fitting from the operator and fit it on the leaf. The
fitting can be either welded directly or screwed on, using the
threaded inserts (Fig. 9).
Fig.6
4.3.8 Installing the operator-front fitting
Fasten the operator to the front fitting as shown in Fig. 10 and turn
the release key clockwise to the closing stop position.
!The operator is non-reversing, so do not, on any account, try to
move the leaves by hand.
Lock
Unlock
