Installation

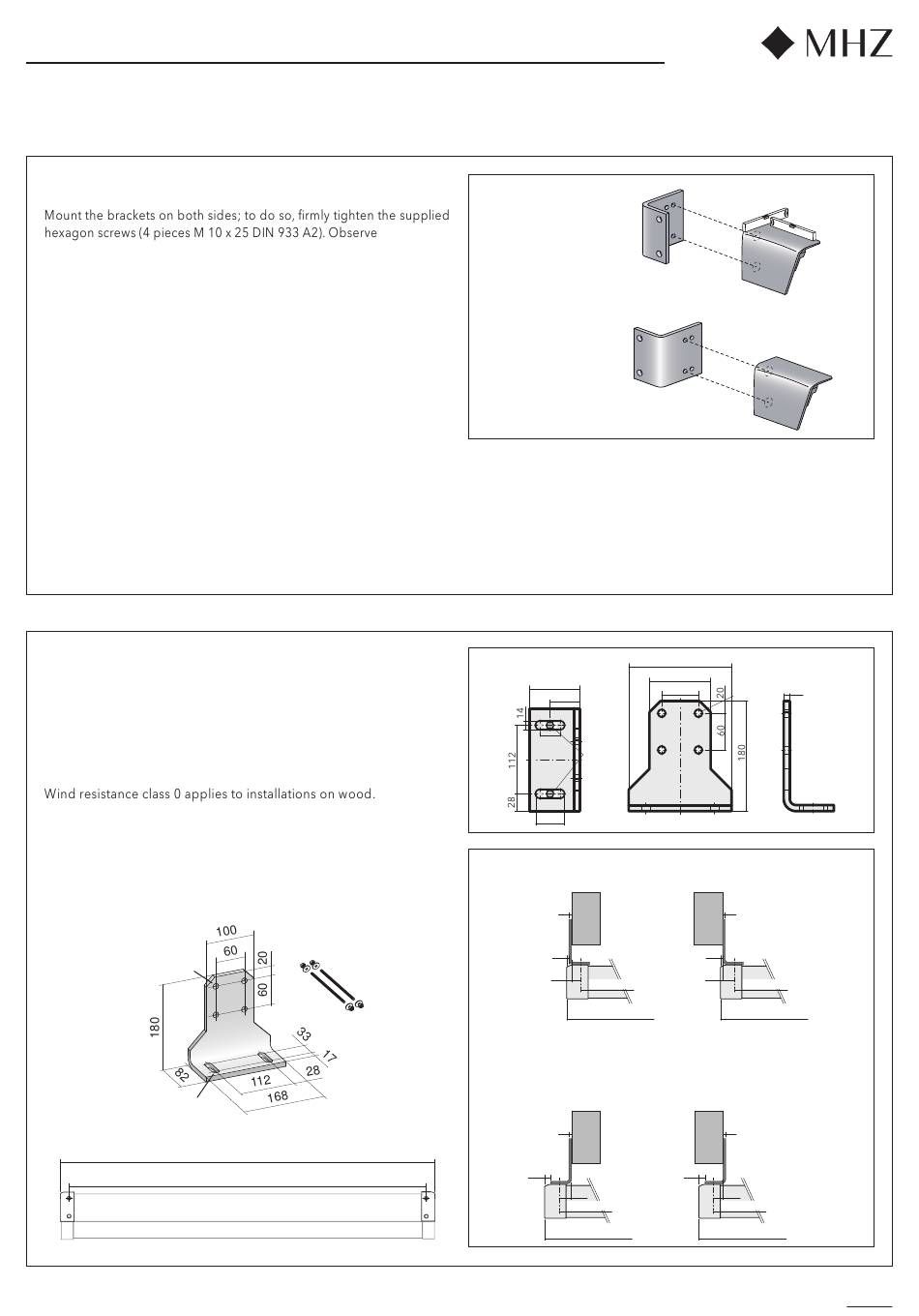

2. Recess installation
2.4 Mounting brackets on recess brackets:
installation variant and mounting method (see Fig. 18).
2.5 Next steps:
See pages 15 and 16 of the installation instructions
for the next steps in the installation process.
See pages 15, 16: 1.8 Mounting awning to 1.12 Incline adjustment
3. Roof rafter installation
Note: Recommended for projections up to max. 300 cm. Please
make sure to check the structural analysis of the sub-construction
beforehand. Produce sketch with position of the awning, the rafter
bracket (incl. installation position) and the rafter. In the case of
art_01, the brackets can only be installed on the very outside in
the area of the functional bearings. The centre-to-centre distance
cannot be changed. The unit width must be adapted to the rafter or
the centre-to-centre distance.
Ordering dimensions = unit width
Unit width = centre-to-centre distance + 104 mm
Centre-to-centre distance = left centre fixation point to right centre
fixation point
Adjustment range = +/- 17 mm per rafter bracket
4 x Ø 12
LL 14 x 47
Unit width = centre-to-centre distance + 104 mm
Centre-to-centre distance = centre fix. point (left) to centre fix. point (right)
