SOLARWATT Battery vision Bedienungsanleitung Seite 9

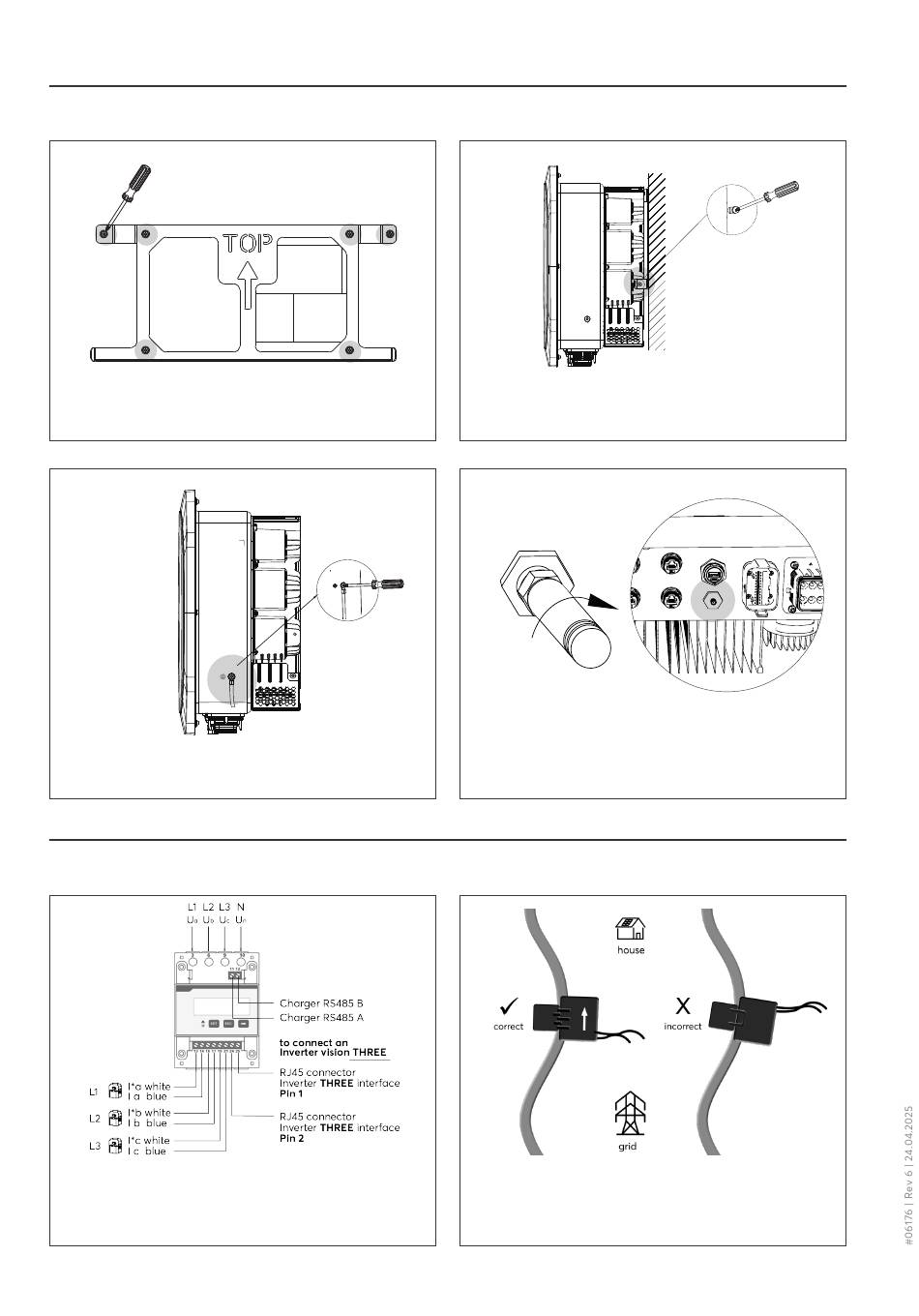

INVERTER ASSEMBLY AND WIRING
Fix wall bracket (11) with screws
Connect ground terminal via cable lug (18)
METER INSTALLATION AND WIRING
Install the meter (21) on the household
cabinets's top hat rail
connect meter as per wiring diagram p. 3
Subject to change | Solarwatt GmbH
Hang inverter over bracket, fix with two
M5-screws
Screw in the antenna (20)
Correct CT clamp current measurement
direction: arrow on the CT clamp points in
the direction of the domestic consumers
9
