SOLARWATT Battery vision Bedienungsanleitung Seite 5

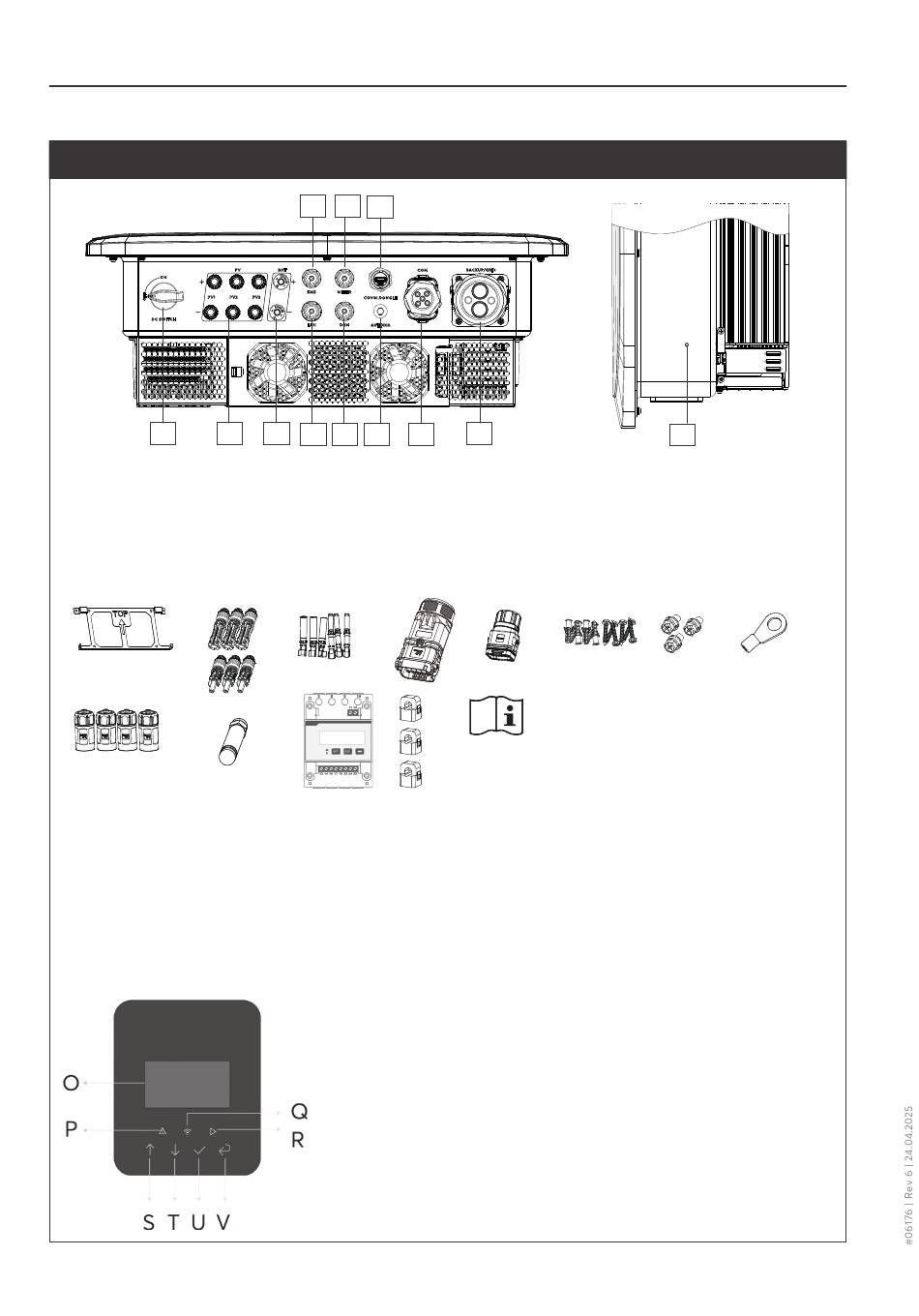

DEVICE DESIGNS AND PACKING LISTS
Inverter vision three 1.0
A
A DC SWITCH
B PV 1, PV 2, PV3
C BATTERY CONNECTOR
D BMS
11
19
11 Fixing bracket
12 PV connectors
(MC4 Stäubli)
13 PV pin contacts
14 AC connector
15 Communication connector
(optionally applicable)
Subject to change | Solarwatt GmbH
D E
I
B C
F G H
E METER
F LAN
G DRM
H ANTENNA
12 13
20
16 Screws and dowels (wall fixing) 22 Quickstart Guide
17 Screws (inverter fixing)
18 Cable lug for grounding cable
19 Ethernet outdoor adapters
20 Antenna
21 Meter with CT-clamps
O LC display
P red: fault
Q blue: WiFi/LAN status
R green: operational state
S move up; increase value
T move down; decrease value
U confirm
V return/exit
K
J
14 15
21
22
Additional equipment required:
• communication cable (2-core
RS485 cable) to chint-meter
• DC- and AC-cable for inverter
• LAN cable for inverter (optional)
• grounding cable for inverter
• circuit breaker
L
I COMM. DONGLE
J COM
K BACKUP / GRID
L GROUNDING
16 17 18
Safety Instructions
5
