DEVICE DESIGNS AND PACKING LISTS

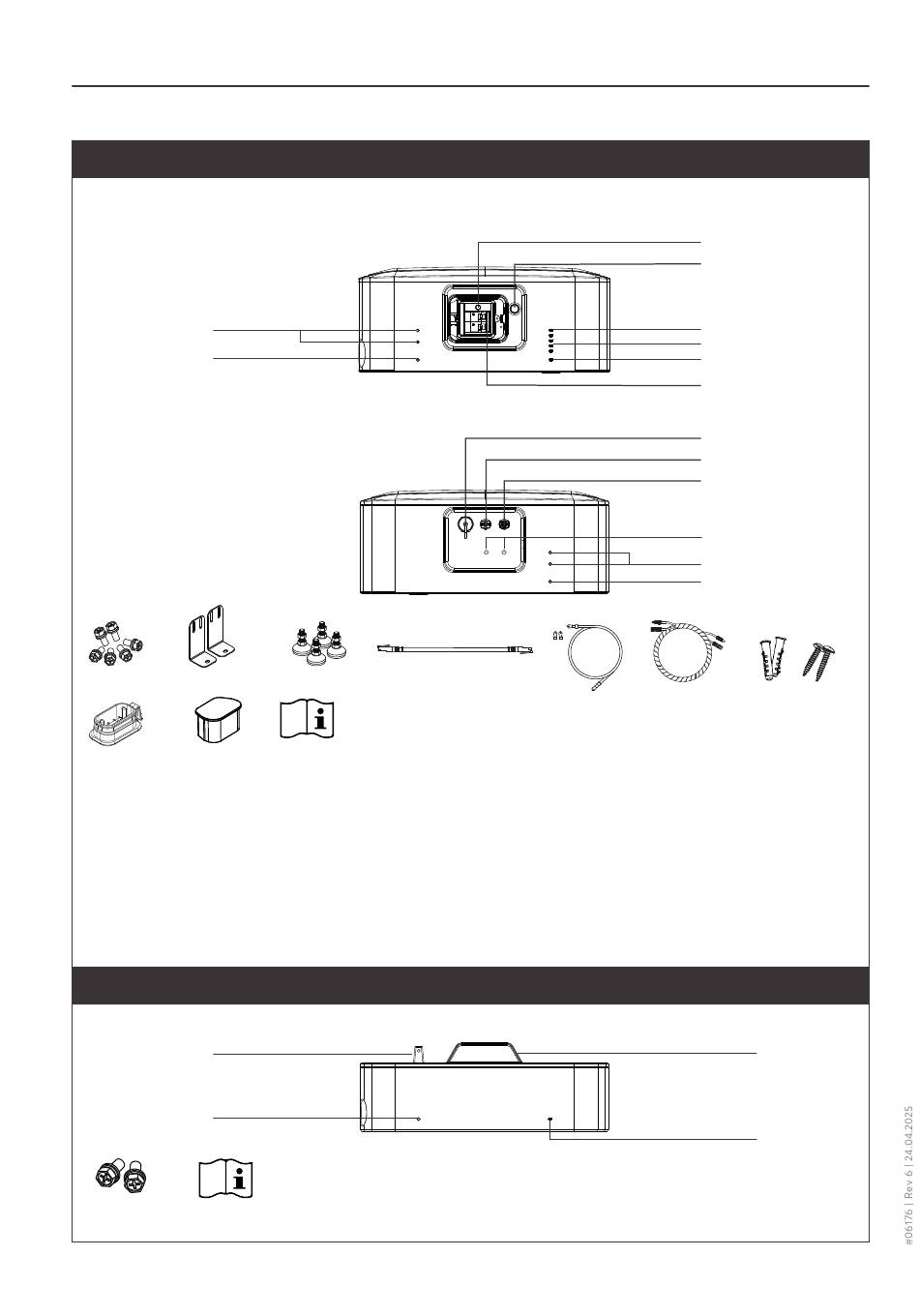

Battery vision top pack 1.0 (2.6 kWh)
View from the left side
Bracket mounting hole
Battery fixing hole
View from the right side
1
8
1 Screws (M5), 2 for pack fixing 5 Grounding cable
and 4 for bracket-fixing
2 Fixing bracket
3 Footstand
4 Communication cable
BMS - Inverter (1,5 m)
Battery vision pack 1.0 (2.6 kWh)
Pack fixing
Battery fixing hole
23
4
2 3
9 10
with 2 additional cable lugs
6 DC cable battery (1,5 m)
7 2 Screws for wall-fixing
8 Bridging plug
23 Screws (M5) for pack-fixing
24 Safety Instructions
24
power
B-start
- +
BMS
4 5
9 Conncetor protection cover
10 Safety Instructions
B-Start Switch
Power Switch
BMS Status LED
SoC LEDs
Status LED
DC Switch
BMS
DC OUT-
DC OUT+
Fixations for DC cables
Bracket mounting hole
Grounding terminal
6 7
Handle
Status LED
