SOLARWATT Battery vision Bedienungsanleitung Seite 12

INVERTER ASSEMBLY AND WIRING
detail 3
16-17 mm
PE
9 mm

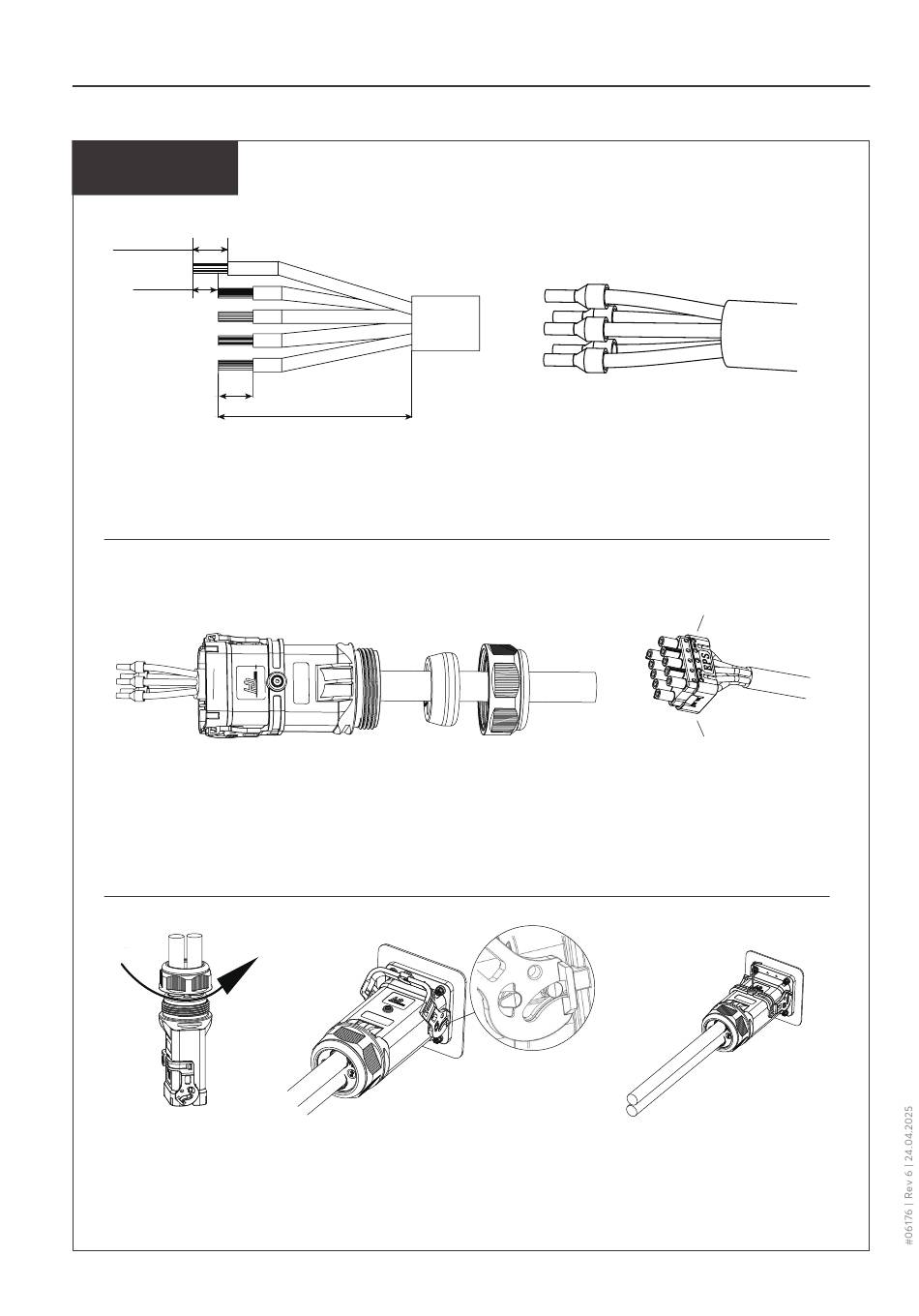

Strip cable sheath, strip cable insulation and crimp wire end ferrules on the cables.
AC-cable
Feed AC cable through AC plug components. Connect the cable ends of the grid
connection cable and the backup cable according to the conductor designation on the
plug.
Fix the lock nut. Plug the AC cable into the BACKUP/GRID port. Adjust, then fix the safe-
ty clip in place.
12
16-17 mm
65-72 mm
housing seal
EPS/BACKUP
lock nut
GRID
Subject to change | Solarwatt GmbH
