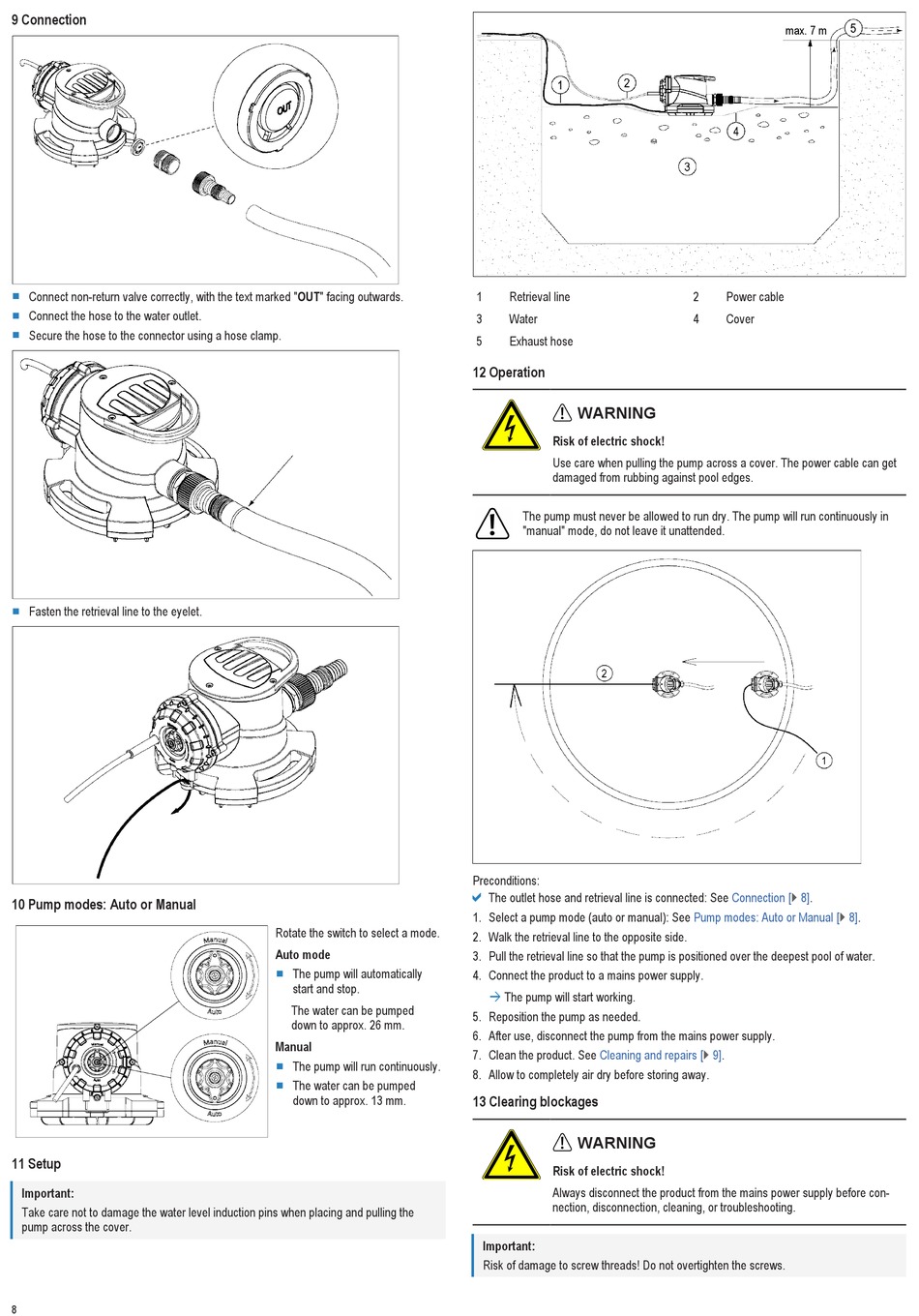

9 Connection
■
Connect non-return valve correctly, with the text marked "OUT" facing outwards.
■
Connect the hose to the water outlet.
■
Secure the hose to the connector using a hose clamp.
■
Fasten the retrieval line to the eyelet.
10 Pump modes: Auto or Manual
11 Setup
Important:
Take care not to damage the water level induction pins when placing and pulling the
pump across the cover.
8
Rotate the switch to select a mode.
Auto mode
■
The pump will automatically
start and stop.
The water can be pumped
down to approx. 26 mm.
Manual
■
The pump will run continuously.
■
The water can be pumped
down to approx. 13 mm.
1
Retrieval line
3
Water
5
Exhaust hose
12 Operation
WARNING
Risk of electric shock!
Use care when pulling the pump across a cover. The power cable can get
damaged from rubbing against pool edges.
The pump must never be allowed to run dry. The pump will run continuously in
"manual" mode, do not leave it unattended.
Preconditions:
a
The outlet hose and retrieval line is connected: See
1. Select a pump mode (auto or manual): See
2. Walk the retrieval line to the opposite side.
3. Pull the retrieval line so that the pump is positioned over the deepest pool of water.
4. Connect the product to a mains power supply.
à
The pump will start working.
5. Reposition the pump as needed.
6. After use, disconnect the pump from the mains power supply.
7. Clean the product. See
Cleaning and repairs
8. Allow to completely air dry before storing away.
13 Clearing blockages
WARNING
Risk of electric shock!
Always disconnect the product from the mains power supply before con-
nection, disconnection, cleaning, or troubleshooting.
Important:
Risk of damage to screw threads! Do not overtighten the screws.
max. 7 m
2
Power cable
4
Cover
Connection
[} 8].
Pump modes: Auto or Manual
[} 8].
[} 9].
