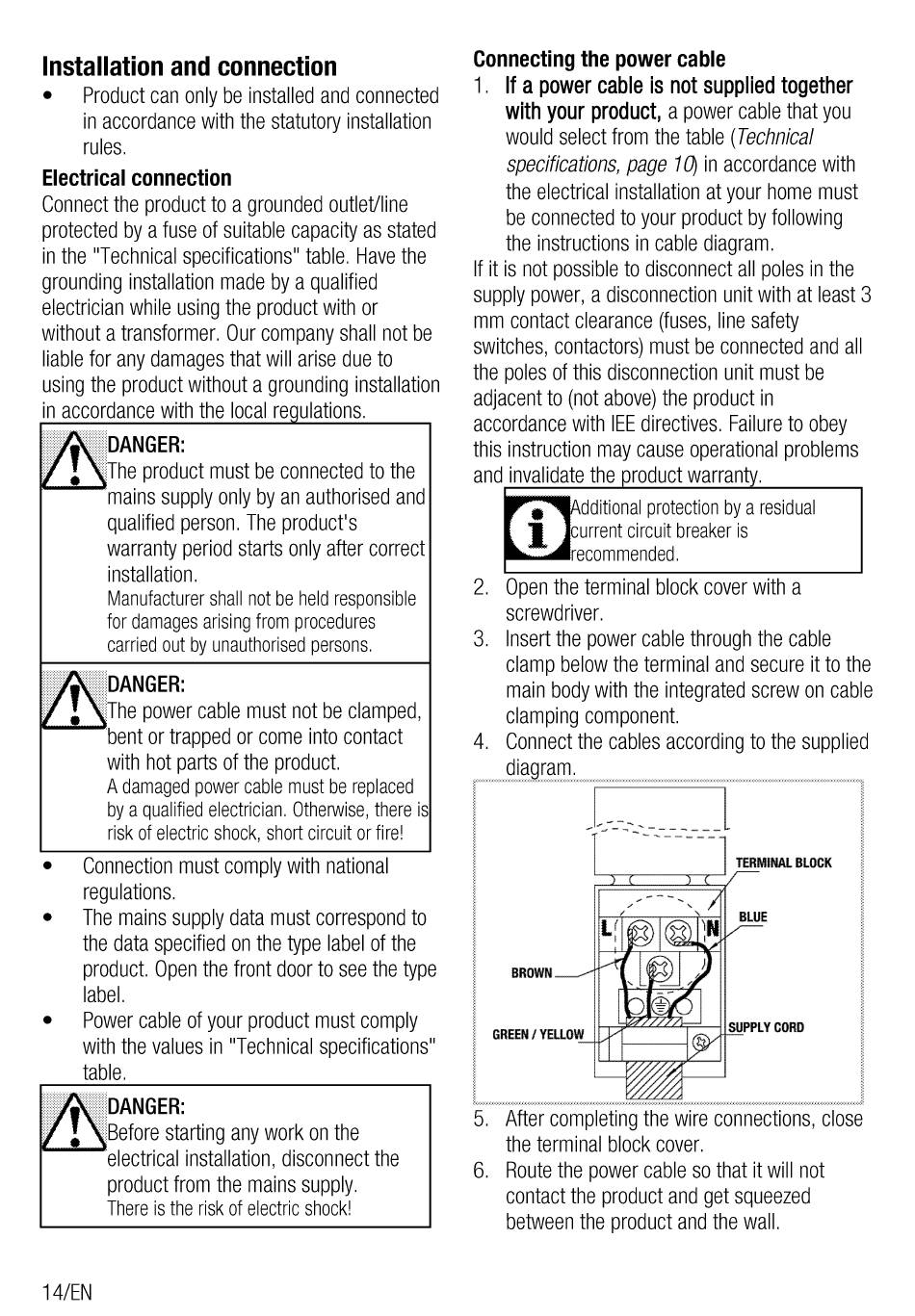

Installation
and connection
Product can only be installed and connected
in accordance with the statutory installation
rules.
Electrical
connection
Connect t he productto a groundedoutlet/line
protected by a fuse of suitable capacity as stated
in the "Technical s pecifications"table. Havethe
groundinginstallationmadeby a qualified
electrician while using the product with or
withouta transformer.Ourcompanyshallnot be
liablefor anydamagesthat will arisedue to
usingthe productwithouta groundinginstallation
in accordance
with the local re ulations.
DANGER:
jhe product must b econnected tothe
mains supply only by an authorised and
qualifiedperson.Theproduct's
warrantyperiodstarts onlyafter correct
installation.
Manufacturer shall not be held responsible
for damages arising from procedures
carried out by unauthorisedpersons,
DANGER:
The power cable must not be clamped,
bent or trapped or come into contact
with hot partsof the product.
A damagedpower cable must be replaced
by a qualified electrician, Otherwise,there is
risk of electric shock, short circuit or fire!
Connection must comply with national
regulations.
The mainssupplydata must correspond to
the dataspecifiedonthe type labelof the
product.Openthe front doorto seethe type
label.
Powercableof your productmust comply
with the valuesin "Technicalspecifications"
table.
DANGER:
Beforestartinganywork onthe
electrical installation, disconnect the
productfrom the mainssupply.
There is the risk of electric shock!
14/EN
Connecting the power cable
1. If a powercable is not supplied together
with your product, a powercablethat you
wouldselectfrom the table(Technical
specifications, p age 10)in accordance with
the electrical installation at your home must
be connectedto your productbyfollowing
the instructionsin cablediagram.
If it is not possibleto disconnectall polesin the
supply power, a disconnection unit with at least 3
mm contactclearance(fuses,linesafety
switches,contactors)must beconnectedand all
the polesof this disconnection unitmust be
adjacent to (not above)the product in
accordance with IEEdirectives. Failure to obey
this instruction may cause operational problems
and invalidate the
roduct warran
dditionalprotection bya residual
i
urrent circuit breaker IS
recommended,
2.
Openthe terminalblockcoverwith a
screwdriver.
3.
Insertthe powercablethroughthe cable
clamp below the terminal and secure it to the
main bodywith the integratedscrew on cable
clampingcomponent.
Connectthe cablesaccordingto the supplied
4.
diagam.
GREEN / YELLOW
After completing the wire connections, c lose
5.
the terminal
block cover.
6.
Route the power cable so that it will not
contactthe productand get squeezed
betweenthe productand the wall.
TERMINAL BLOCK
BLUE
SUPPLY CORD
