General
3.2 Survey and construction
3.3 Accessoires
HVA-FTZ/TSZ
Laying in batch operation
3.4 Technical data
The exact technical data (carrying capacity / working load limit (WLL), dead weight, etc.) are listed on the type plate.
53100451-003
TSZ-UNI-WB-SQ
Gripping of roughly-cut ashlar
rocks
13 / 29

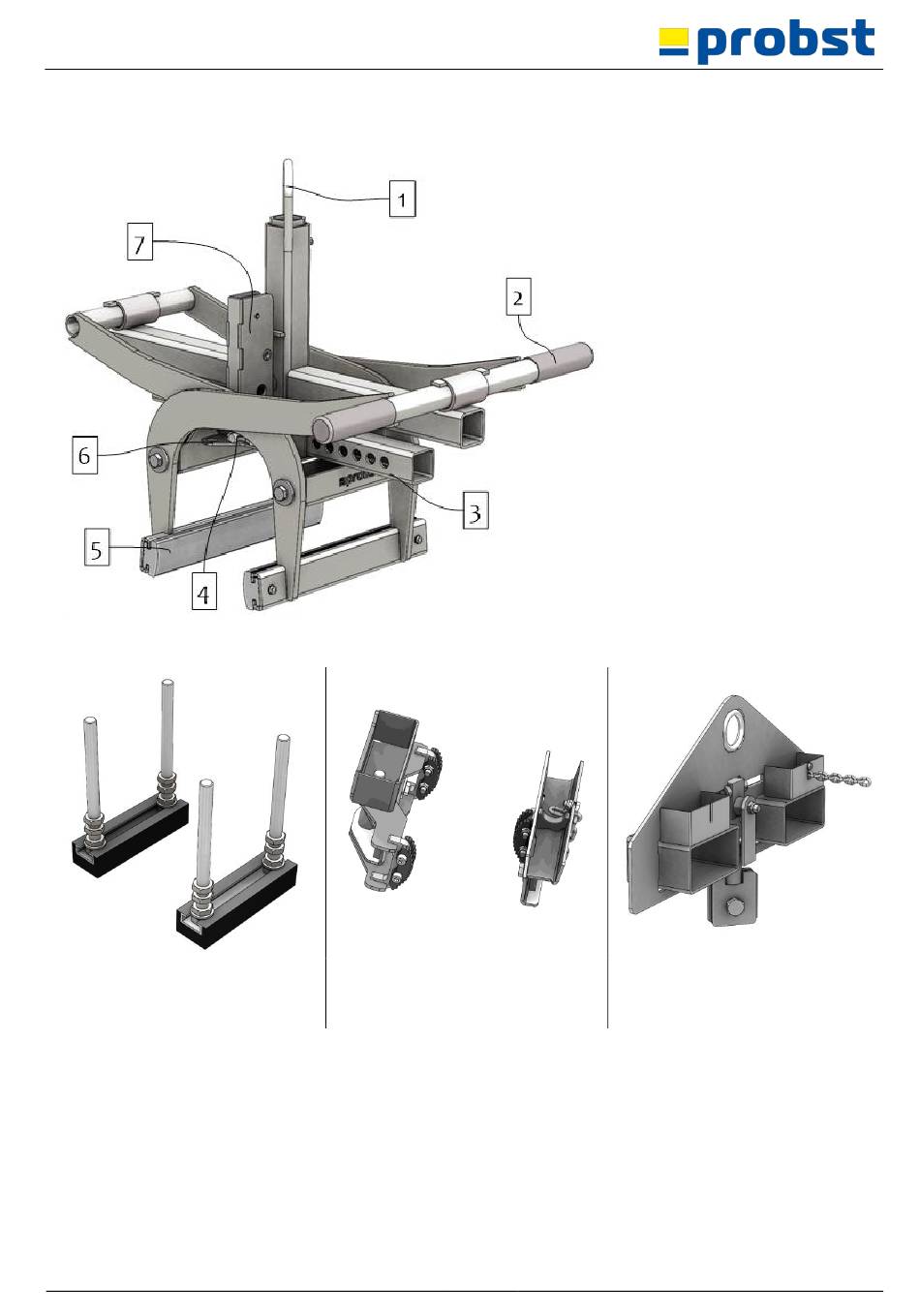

1. Lifting eye for attaching to crane
hook
2. Handles for the guidance of the
device
3. Adjustment of gripping range
4. Spring bolt (for gripping range
adjustment)
5. Rubber gripper (exchangeable)
6. Montageplatte für HVA
7. Automatic release for the fully
automatic switch over from "full"
to "empty"
TSZ-UNI-ET
Fork sleeve
GB
