Delabie SECURITHERM H9601 Bedienungsanleitung

Sequentielle thermostat-mischbatterie für waschtisch

Werbung

Mitigeur de lavabo thermostatique
FR
séquentiel
Single lever sequential thermostatic
EN
mixer for washbasins
Sequentielle Thermostat-Mischbatterie
DE
für Waschtisch
Sekwencyjna bateria termostatyczna
PL
do umywalki
Purger soigneusement les canalisations
FR
avant la pose et la mise en service du produit.
Thoroughly flush the pipes to remove any impurities
EN
before installing and commissioning the product.
Vor Montage und Inbetriebnahme des Produkts
DE
die Anschlussleitungen regelkonform spülen.
Dokładnie wypłukać instalację
PL
przed montażem i uruchomieniem produktu.
Spoel zorgvuldig de leidingen alvorens
NL
tot installatie of ingebruikname van de kraan over te gaan.
Purgar cuidadosamente las tuberías
ES
antes de la instalación y del uso del producto.
Purgar cuidadosamente as canalizações
PT
antes da instalação e utilização do produto.
Перед установкой и подключением устройства
RU
тщательно промыть канализационные трубы напором воды.
SECURITHERM
Thermostatische sequentiële
NL
wastafelmengkraan
Grifo mezclador termostático
ES
secuencial de lavabo
Misturadora de lavatório termostática
PT
sequencial
Термостатический смеситель для
RU
раковины с последовательным
открытием.
NT H9600
Indice E

Werbung

loading

Inhaltszusammenfassung für Delabie SECURITHERM H9601

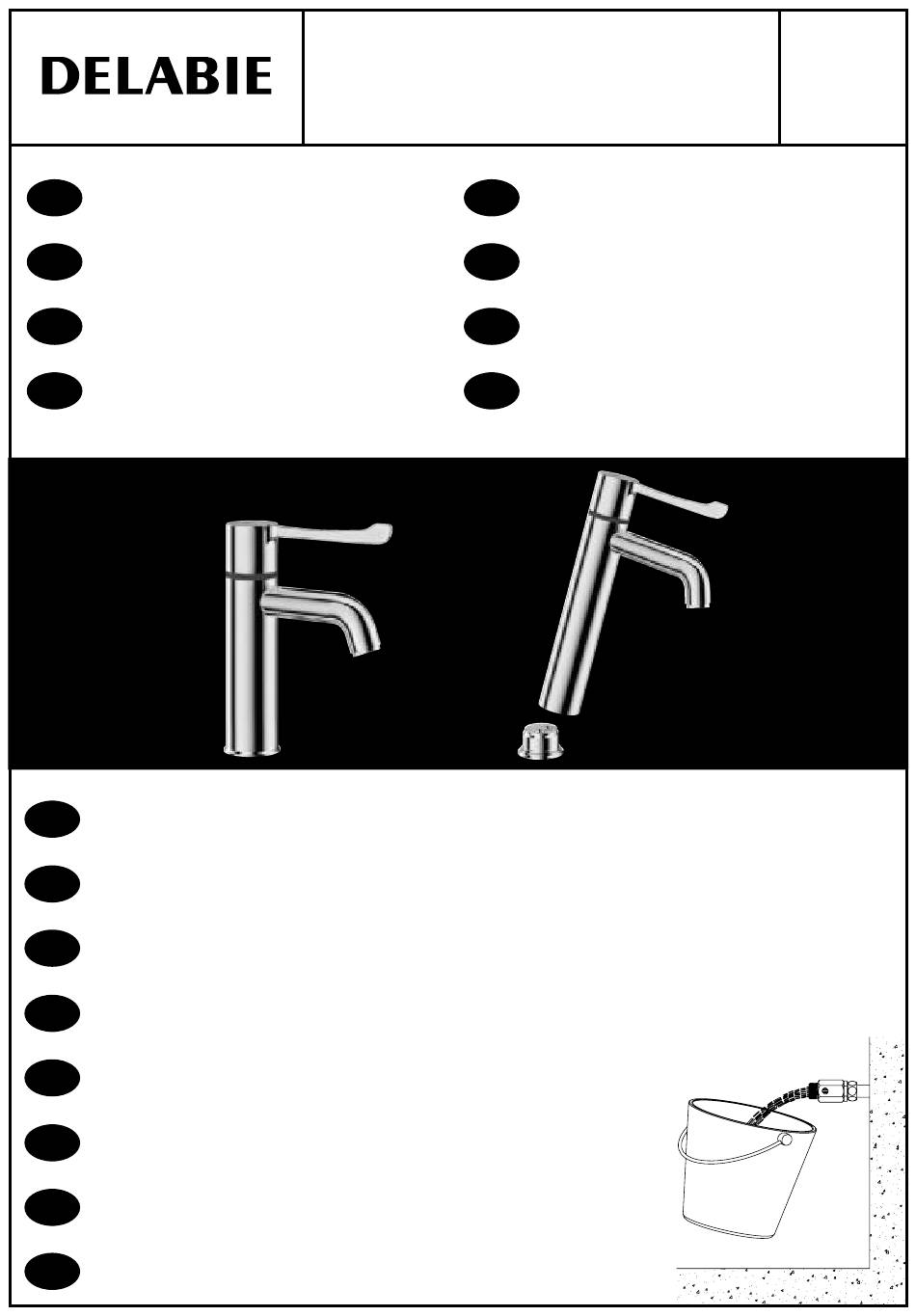

  • Seite 1 NT H9600 SECURITHERM Indice E Mitigeur de lavabo thermostatique Thermostatische sequentiële séquentiel wastafelmengkraan Single lever sequential thermostatic Grifo mezclador termostático mixer for washbasins secuencial de lavabo Sequentielle Thermostat-Mischbatterie Misturadora de lavatório termostática für Waschtisch sequencial Термостатический смеситель для Sekwencyjna bateria termostatyczna раковины...
