Next Level Racing ELITE Serie Bedienungsanleitung Seite 8

A) B)

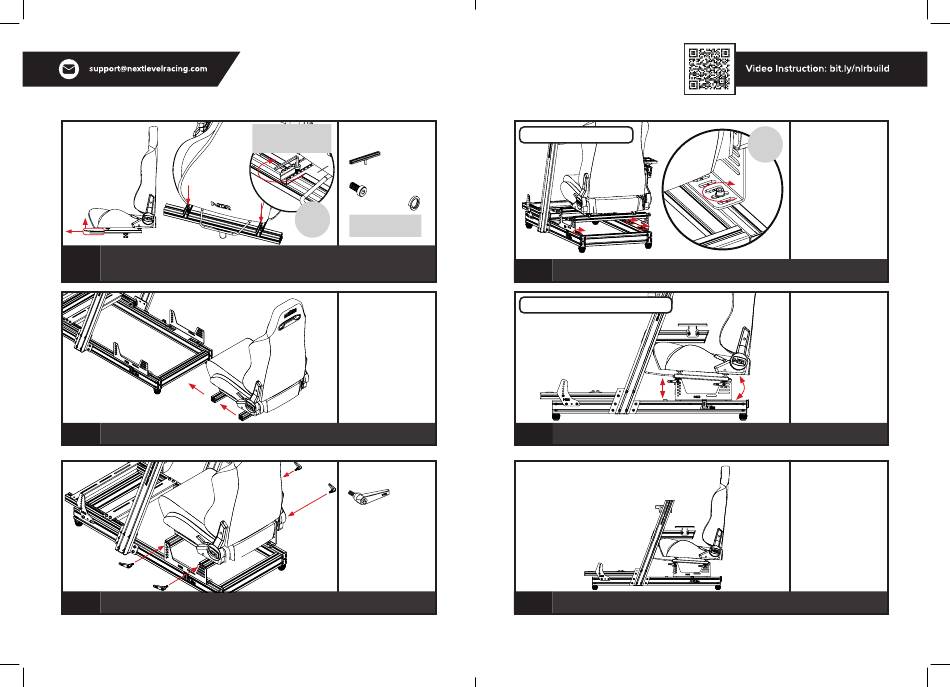

A) Lift the Seat Slider Lever and slide the Seat Rails all the way forward to access the front
mounting holes on the Seat Slider.
22
B) Align the Seat Slider front mounting holes with the T-Nuts in the front 4040 Extrusion that
was uninstalled in Step 14. Secure it to the Seat Sliders using M8 Low Profile Bolts.
Align the threaded holes on the end of the 4040 Extrusions with the mounting holes and slots
23
on the Seat Brackets.
24
Bolt through and secure with Ratchet Handles previously uninstalled in Step 13.
14
NOTE: Partially tighten bolts with
PARTS:
fingers, then secure using M6
Allen Key. • • 1 x Front 4040 Extrusion
• • 2 x M8 16mm Low Profile Bolts
• • 2 x M8 Spring Washers
Repeat
on Other Note: Use Spring Washers with M8
Low Profile Bolts when installing
Side
Seat to the F-GT Elite Cockpit.
PARTS:
• • NIL
PARTS:
• • 4 x Ratchet Handles
LATERAL ADJUSTMENT
Adjust the Seat to the desired distance from pedals. Secure the Bolts connecting the Seat
25
Brackets to the Base Members.
ANGLE & HEIGHT ADJUSTMENT
For angle and height adjustment use the variety of mounting holes and slots provided on the
26
Seat Brackets.
27
Your installation is complete on the Elite Series cockpit.
15
PARTS:
Repeat
on Other • • NIL
Side
PARTS:
• • NIL
PARTS:
• • NIL
