WARNING: The Seat

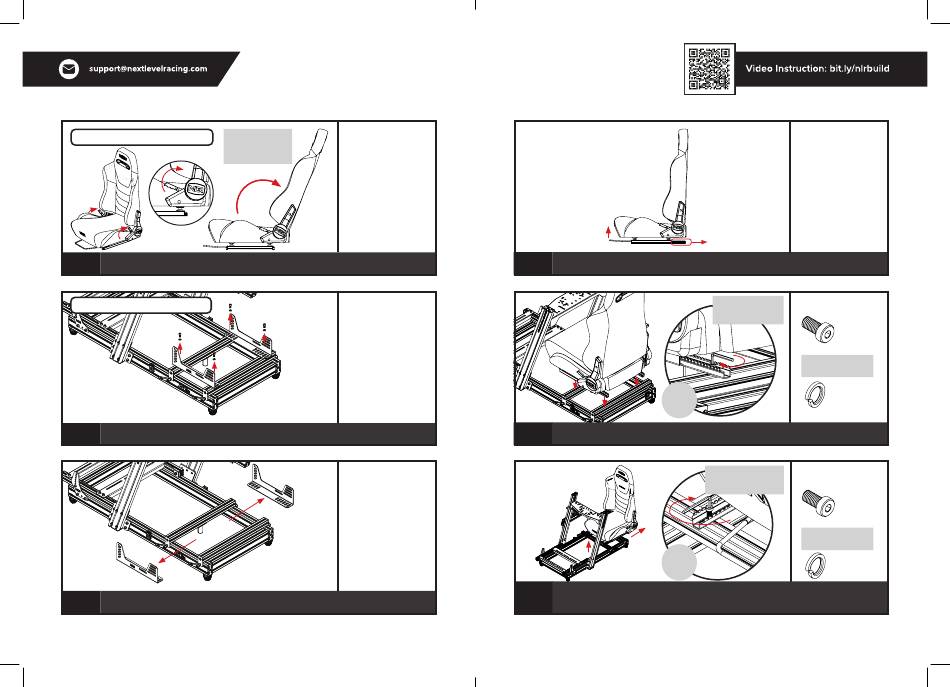

SEAT RECLINER ADJUSTMENT
Recliners are spring loaded,
take care when adjusting to
avoid injury.
Lift both Seat Recliner Levers to change the angle of the Seat Backrest. Release the levers
04
adjusting the backrest to lock in place.
NLR ELITE SERIES ASSEMBLY
05
Uninstall the M8 Bolts and Washers securing the Seat Brackets to the 4040 Extrusions.
06
Remove the Seat Brackets.
8
PARTS:
• • NIL
A)
PARTS:
• • NIL
PARTS:
A)
• • NIL
Lift the Seat Slider Lever and slide the Seat Rails all the way back to access the rear mounting
07
slots on the Seat Slider Rail.
B)
Repeat
on Other
Side
A) Align the Seat Slider rear mounting slots, with the T-Nuts in the rear 4040 Extrusion.
08
B) Bolt through and secure with M8 Low Profile Bolts.
B)
Repeat
on Other
Side
A) Lift the Seat Slider Lever up and slide the Seat all the way back to access the front mounting
09
holes. Align the Seat Slider front mounting holes with the T-Nuts in the front 4040 Extrusions.
B) Bolt through and secure with the M8 Low Profile Bolts.
9
PARTS:
• • NIL
PARTS:
NOTE: Partially tighten bolts
with fingers, then secure
• • 2 x M8 16mm Low Profile Bolts
using M6 Allen Key.
• • 2 x M8 Spring Washers
Note: Use Spring Washers with M8
Low Profile Bolts when installing
Seat to the F-GT Elite Cockpit.
NOTE: Partially tighten bolts with PARTS:
fingers, then secure using M6
• • 2 x M8 16mm Low Profile Bolts
Allen Key.
• • 2 x M8 Spring Washers
Note: Use Spring Washers with M8
Low Profile Bolts when installing
Seat to the F-GT Elite Cockpit.
