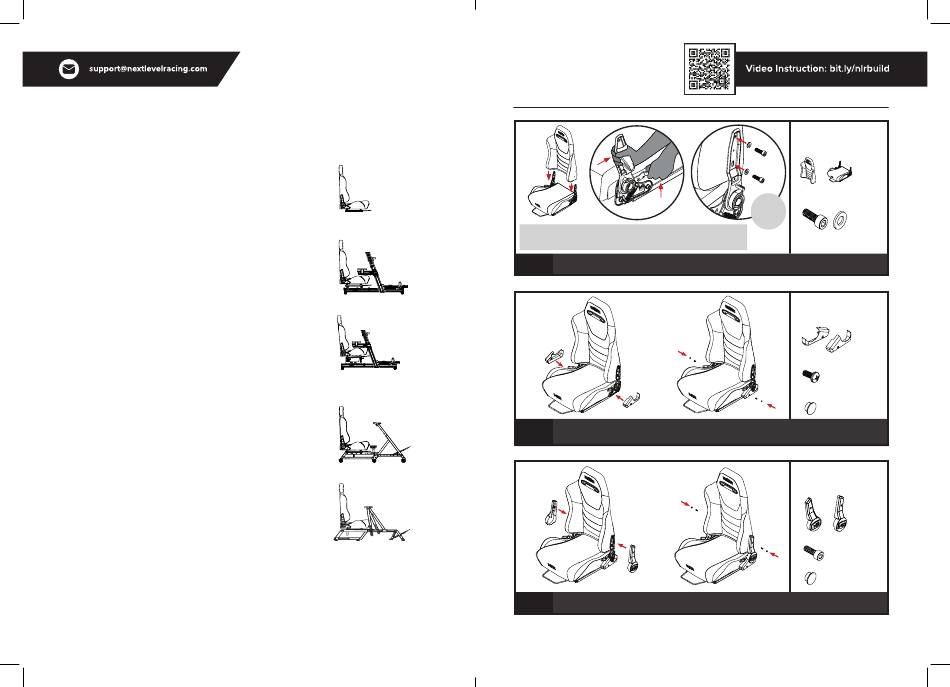

CHOOSE YOUR SEAT SETUP
NLR ELITE SEAT SERIES ASSEMBLY
PAGE: 7
NLR ELITE COCKPIT SERIES ASSEMBLY
PAGES: 8
NLR ELITE COCKPIT SERIES ASSEMBLY
FOR ANGLE & HEIGHT ADJUSTMENT
(NOT COMPATIBLE GT ELITE LITE)
PAGES: 10
NLR GTTRACK ASSEMBLY
PAGES: 16
NLR F-GT ASSEMBLY
(ONLY COMPATIBLE WITH
EXISTING F-GT SEAT SLIDERS)
PAGES: 19
6
INSTRUCTIONS
A) B)
WARNING: Make sure both Seat Recliner Arms are set to the same angle before
assembling the seat. If an adjustment is required use a cloth to protect your
hand while adjusting. Remove warning labels once adjustment has been made.
A) Align the threaded inserts on the Seat Backrest with the mounting holes on the Seat Recliners.
01
B) Bolt through and secure with the M8 Bolts and Washers.
A) B)
A) Align the mounting hole on the Seat Base Recliner Covers with the Seat Recliners.
02
B) Bolt through and secure with 2 x M5 8mm Pan Head Bolts and press fit the Bolt Covers to
cover the hole.
A) B)
A) Align the mounting hole on the Back Rest Recliner Covers with the Seat Recliners.
03
B) Bolt through and secure with M5 16mm Bolts and press fit the Bolt Covers to cover the hole.
PARTS:
• • 1 x Seat Backrest
• • 1 x Seat Bottom
• • 4 x M8 25mm Bolts
• • 4 x M8 Washers
Repeat
on Other
Side
PARTS:
• • 1 x Right Seat Base Recliner Cover
1 x Left Seat Base Recliner Cover
• • 2 x M5 8mm Pan Head Bolts
• • 2 x Bolt Covers
PARTS:
• • 1 x Right Back Rest Recliner Cover
1 x Left Back Rest Recliner Cover
• • 2 x M5 16mm Bolts
• • 2 x Bolt Covers
7
