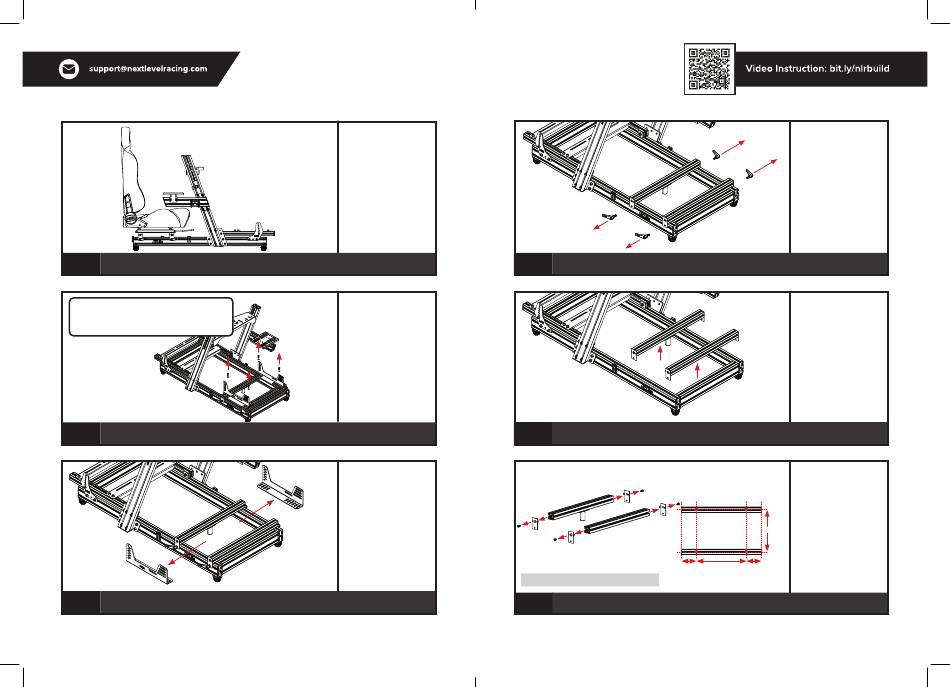

Your installation is complete on the Elite Series Cockpit.
NLR ELITE SERIES ASSEMBLY FOR
ANGLE & HEIGHT ADJUSTMENT
(NOT COMPATIBLE WITH GT ELITE LITE)
11
Uninstall the Bolts securing the Seat Brackets to the 4040 Extrusions.
12
Remove the Seat Brackets.
10
PARTS:
• • NIL
PARTS:
• • NIL
PARTS:
A)
• • NIL
13
Uninstall the Ratchet Handles securing the 4040 Extrusion Assemblies to the Base Members.
14
Remove the 4040 Extrusion Assemblies.
B)
TOP VIEW of 4040 Extrusions
from Elite Cockpits.
104mm
NOTE: Leave the 4040 Extrusions aside for future steps.
15 A) Uninstall the Countersunk Bolts securing the End Plates to the 4040 Extrusions and remove the End
Plates.
11
PARTS:
• • NIL
PARTS:
• • NIL
PARTS:
• • NIL
(FRONT)
285mm
355mm 104mm
(REAR)
