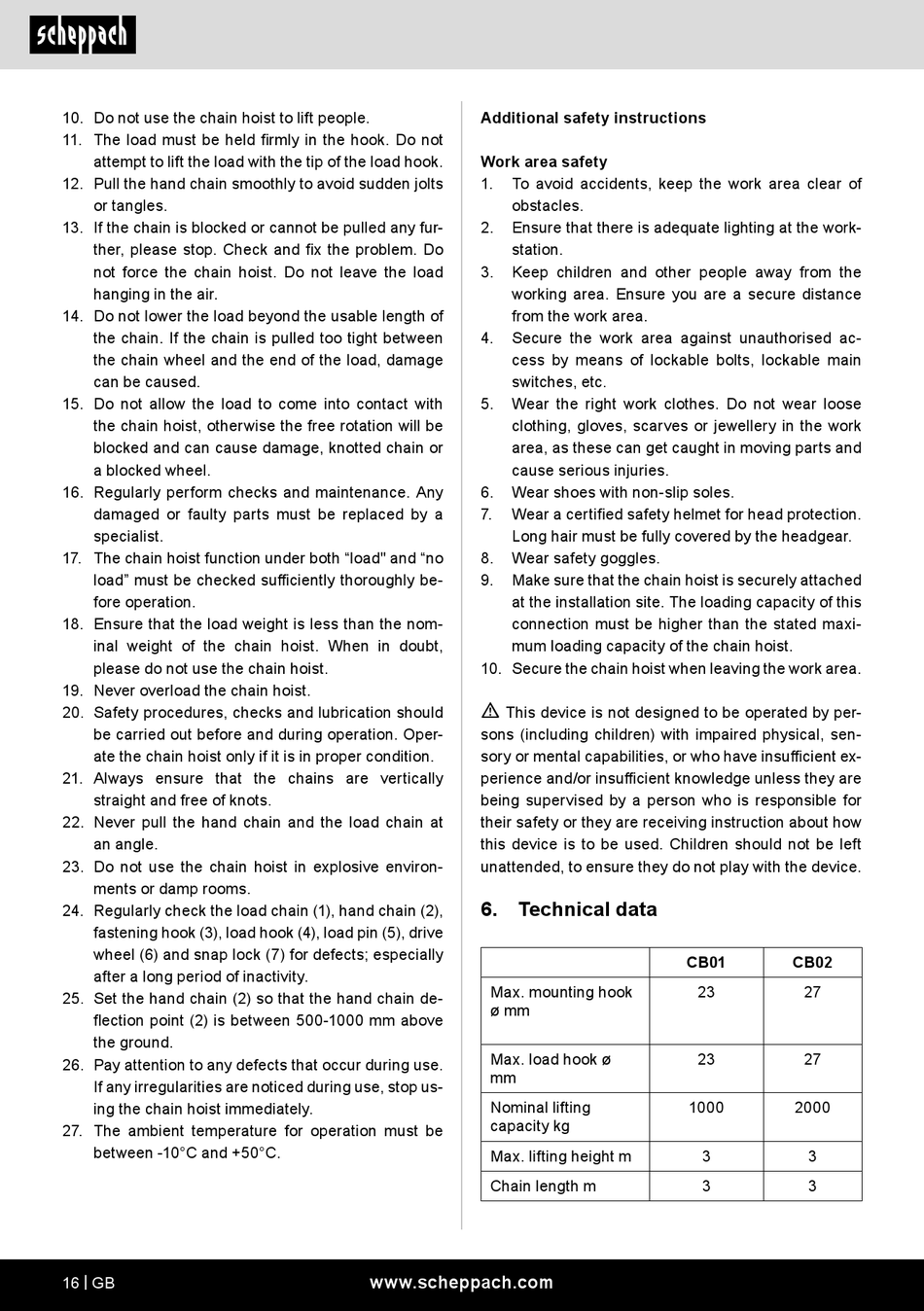

Scheppach CB01 Originalbetriebsanleitung Seite 16

10. Do not use the chain hoist to lift people.
11. The load must be held firmly in the hook. Do not
attempt to lift the load with the tip of the load hook.
12. Pull the hand chain smoothly to avoid sudden jolts
or tangles.
13. If the chain is blocked or cannot be pulled any fur-
ther, please stop. Check and fix the problem. Do
not force the chain hoist. Do not leave the load
hanging in the air.
14. Do not lower the load beyond the usable length of
the chain. If the chain is pulled too tight between
the chain wheel and the end of the load, damage
can be caused.
15. Do not allow the load to come into contact with
the chain hoist, otherwise the free rotation will be
blocked and can cause damage, knotted chain or
a blocked wheel.
16. Regularly perform checks and maintenance. Any
damaged or faulty parts must be replaced by a
specialist.
17. The chain hoist function under both "load" and "no
load" must be checked sufficiently thoroughly be-
fore operation.
18. Ensure that the load weight is less than the nom-
inal weight of the chain hoist. When in doubt,
please do not use the chain hoist.
19. Never overload the chain hoist.
20. Safety procedures, checks and lubrication should
be carried out before and during operation. Oper-
ate the chain hoist only if it is in proper condition.
21. Always ensure that the chains are vertically
straight and free of knots.
22. Never pull the hand chain and the load chain at
an angle.
23. Do not use the chain hoist in explosive environ-
ments or damp rooms.
24. Regularly check the load chain (1), hand chain (2),
fastening hook (3), load hook (4), load pin (5), drive
wheel (6) and snap lock (7) for defects; especially
after a long period of inactivity.
25. Set the hand chain (2) so that the hand chain de-
flection point (2) is between 500-1000 mm above
the ground.
26. Pay attention to any defects that occur during use.
If any irregularities are noticed during use, stop us-
ing the chain hoist immediately.
27. The ambient temperature for operation must be
between -10°C and +50°C.
16 | GB
Additional safety instructions
Work area safety
1. To avoid accidents, keep the work area clear of
obstacles.
2. Ensure that there is adequate lighting at the work-
station.
3. Keep children and other people away from the
working area. Ensure you are a secure distance
from the work area.
4. Secure the work area against unauthorised ac-
cess by means of lockable bolts, lockable main
switches, etc.
5. Wear the right work clothes. Do not wear loose
clothing, gloves, scarves or jewellery in the work
area, as these can get caught in moving parts and
cause serious injuries.
6. Wear shoes with non-slip soles.
7. Wear a certified safety helmet for head protection.
Long hair must be fully covered by the headgear.
8. Wear safety goggles.
9. Make sure that the chain hoist is securely attached
at the installation site. The loading capacity of this
connection must be higher than the stated maxi-
mum loading capacity of the chain hoist.
10. Secure the chain hoist when leaving the work area.
m
This device is not designed to be operated by per-
sons (including children) with impaired physical, sen-
sory or mental capabilities, or who have insufficient ex-
perience and/or insufficient knowledge unless they are
being supervised by a person who is responsible for
their safety or they are receiving instruction about how
this device is to be used. Children should not be left
unattended, to ensure they do not play with the device.
6. Technical data
Max. mounting hook
ø mm
Max. load hook ø
mm
Nominal lifting
capacity kg
Max. lifting height m
Chain length m
www.scheppach.com
CB01 CB02
23 27
23 27
1000 2000
3 3
3 3
