EN

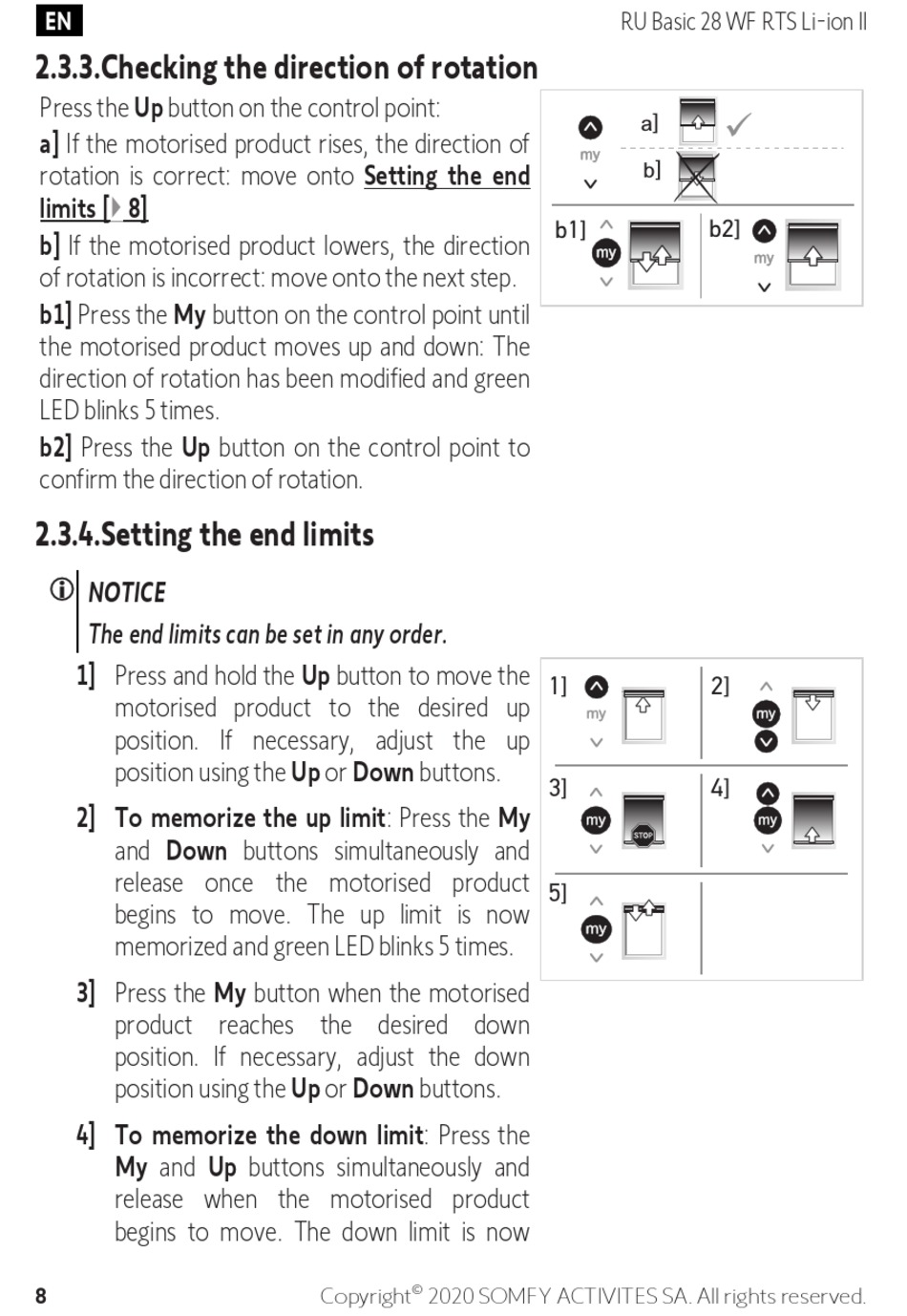

2.3.3.Checking the direction of rotation
Press the Up button on the control point:
a] If the motorised product rises, the direction of
rotation is correct: move onto Setting the end
limits [} 8]
b] If the motorised product lowers, the direction
of rotation is incorrect: move onto the next step.
b1] Press the My button on the control point until
the motorised product moves up and down: The
direction of rotation has been modified and green
LED blinks 5 times.
b2] Press the Up button on the control point to
confirm the direction of rotation.
2.3.4.Setting the end limits
NOTICE
The end limits can be set in any order.
1] Press and hold the Up button to move the
motorised product to the desired up
position. If necessary, adjust the up
position using the Up or Down buttons.
2] To memorize the up limit: Press the My
and Down buttons simultaneously and
release once the motorised product
begins to move. The up limit is now
memorized and green LED blinks 5 times.
3] Press the My button when the motorised
product reaches the desired down
position. If necessary, adjust the down
position using the Up or Down buttons.
4] To memorize the down limit: Press the
My and Up buttons simultaneously and
release when the motorised product
begins to move. The down limit is now
8
©
Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
RU Basic 28 WF RTS Li-ion II
]
a
]
b
b2]
b1]
1] 2]
3] 4]
5]
