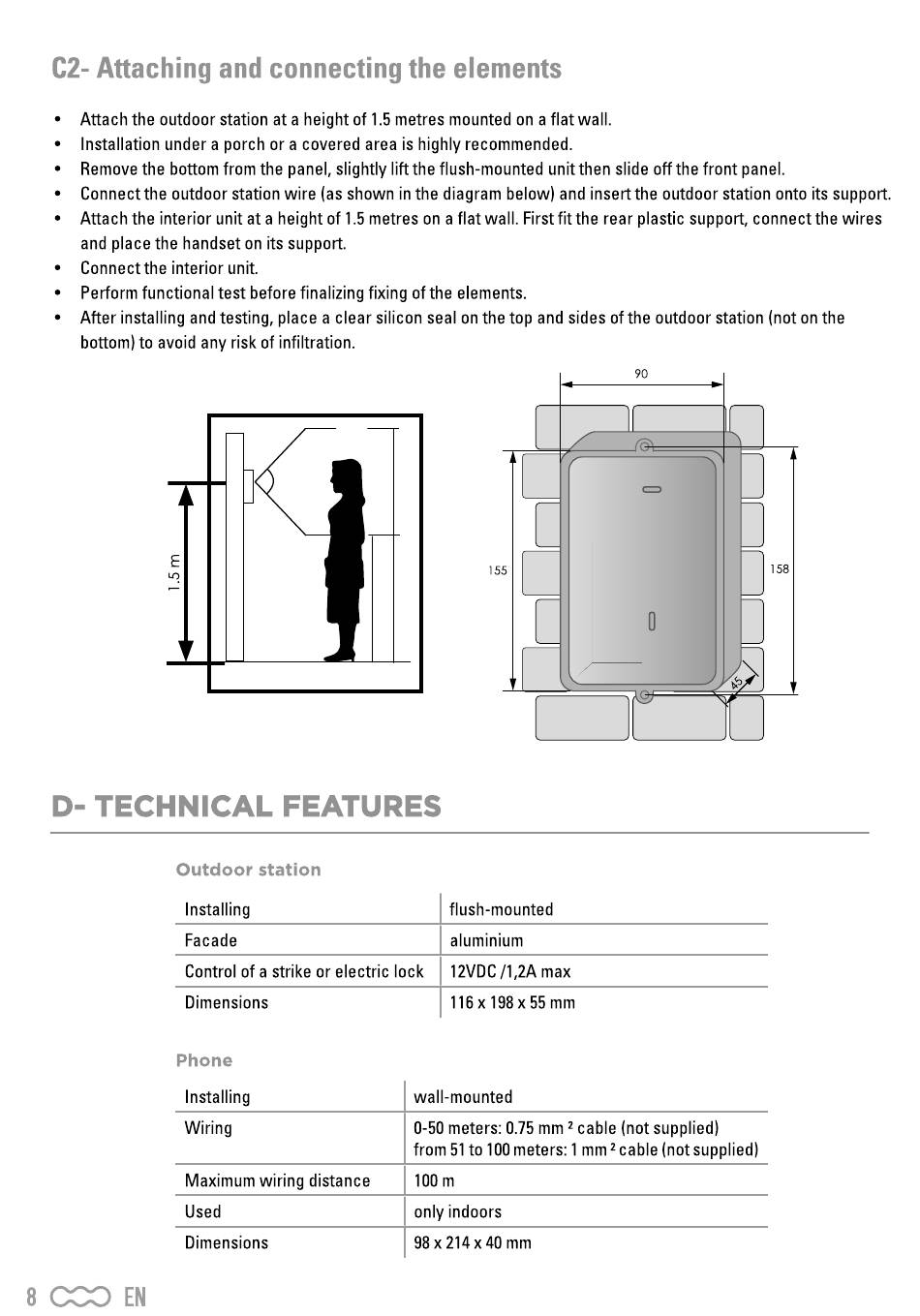

C2- Attaching and connecting the elements
• Attach the outdoor station at a height of 1.5 metres mounted on a flat wall.
• Installation under a porch or a covered area is highly recommended.
Remove the bottom from the panel, slightly lift the flush-mounted unit then slide off the front panel.
Connect the outdoor station wire (as shown in the diagram below) and insert the outdoor station onto its support.
Attach the interior unit at a height of 1.5 metres on a flat wall. First fit the rear plastic support, connect the wires
and place the handset on its support.
Connect the interior unit.
Perform functional test before finalizing fixing of the elements.
After installing and testing, place a clear silicon seal on the top and sides of the outdoor station (not on the
bottom)to avoid any risk of infiltration.
D- TECHNICAL
Outdoor
Installing
Facade
Control
Dimensions
Phone
Installing
Wiring
Maximumwiring distance
Used
Dimensions
8 CCO EN
FEATURES
station
of a strike or electric lock
wall-mounted
0-50 meters: 0.75 mm 2 cable (not supplied)
from 51to 100meters: 1mm2cable (notsupplied)
100 m
only indoors
98 x 214 x 40 mm
155
flush-mounted
aluminium
12VDC/1,2A max
116 x 198 x 55 mm
90
58
