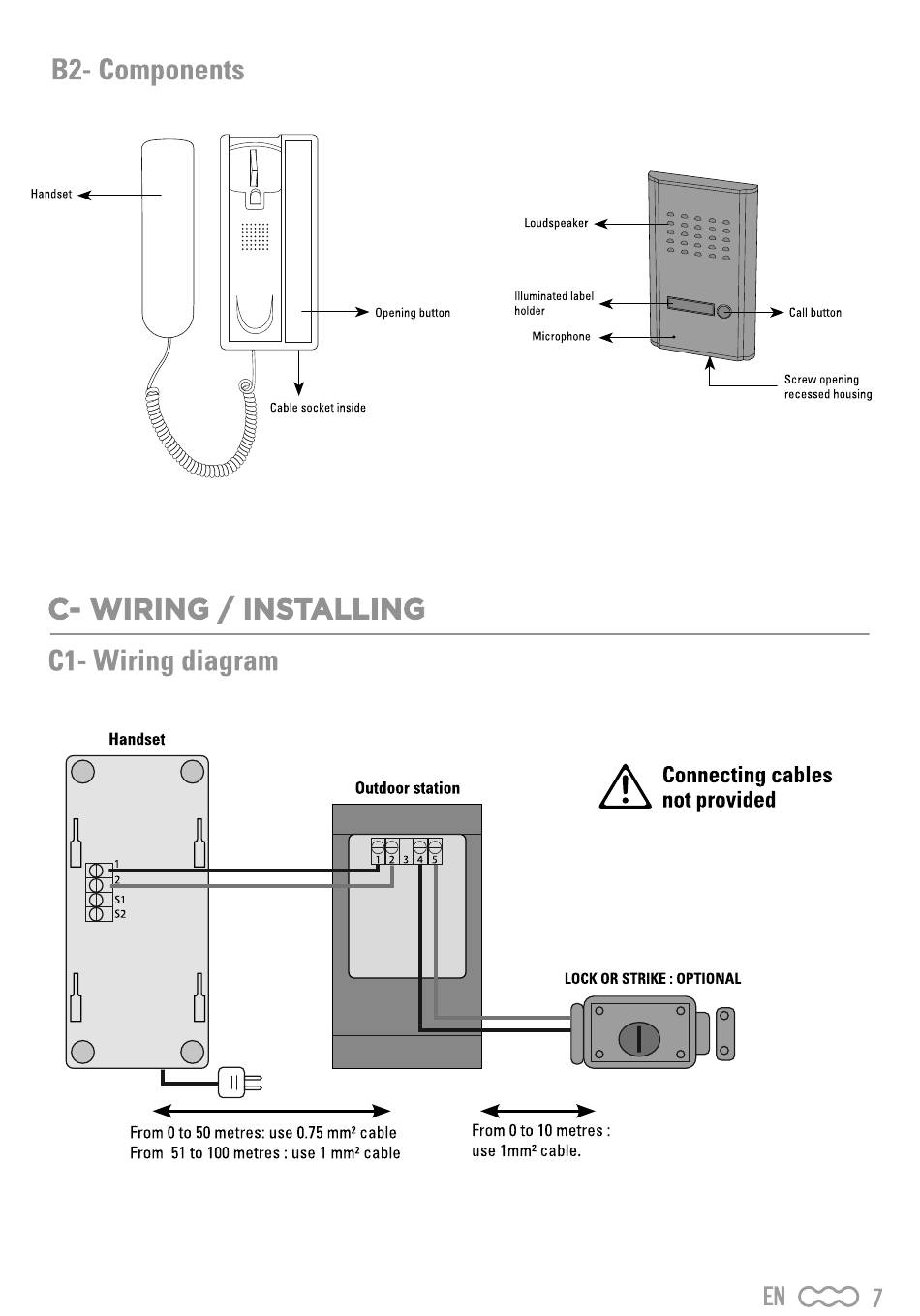

B2- Components
Handset
C- WIRING
Cl- Wiring diagram
Handset
O O
52
O O
From Oto 50 metres:
From 51 to 100 metres
Opening button
Cable socket inside
/ INSTALLING
Outdoor
use 0.75 mm2 cable
. use 1 mm2 cable
Loudspeaker
Illuminated label
holder
Microphone
station
LOCK OR STRIKE : OPTIONAL
From Oto 10 metres
use Imm2 cable.
Connecting cables
not provided
o o
:
EN COO
Call button
Screw opening
recessed housing
7
