EN

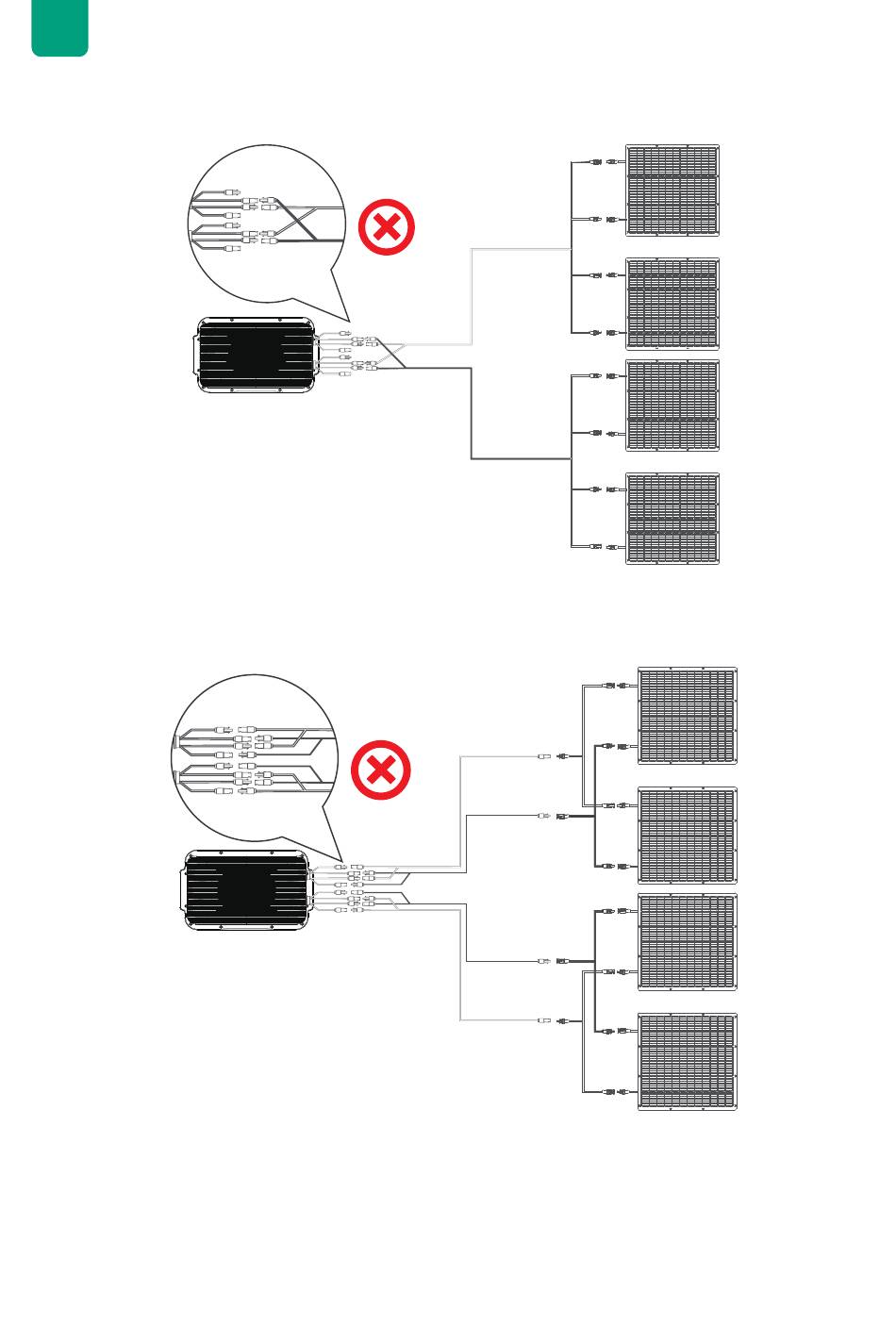

The positive and negative terminals of the same solar panel must be connected to the corresponding positive and
negative terminals of the same PV input to ensure proper electrical flow and system functionality. Do not connect
panels across different PV Inputs.
We are not liable for any damages resulting from improper connections.
(3) PV Cross-Source Error: The SolarFlow 800 Pro has four independent PV ports, each linked to its own MPPT. The
connection method illustrated in the diagram incorrectly parallels two originally independent PV ports. This wiring
approach can create a PV cross-source issue, resulting in uneven power distribution between the ports and potentially
damaging the product.
13
