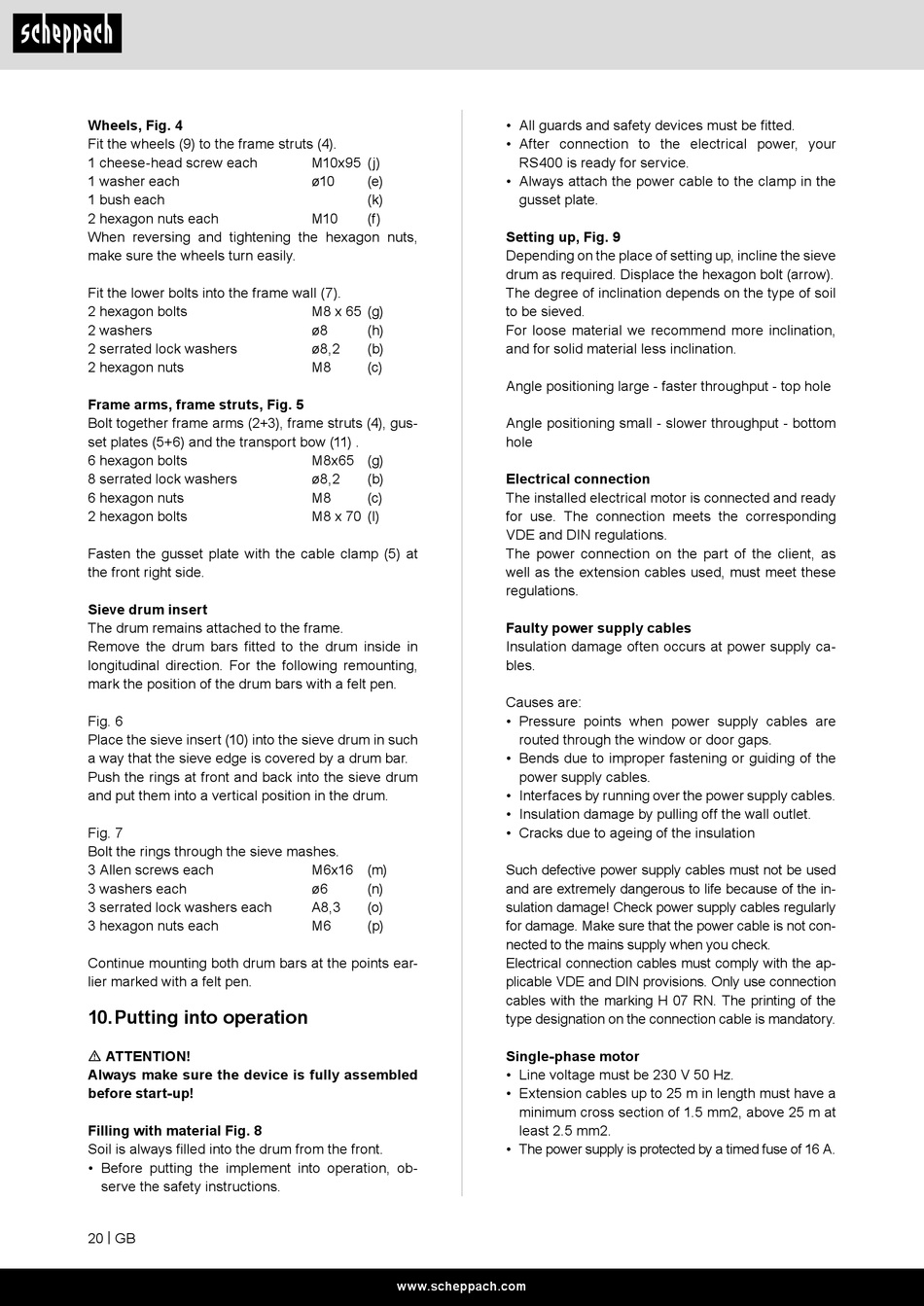

Wheels, Fig. 4
Fit the wheels (9) to the frame struts (4).
1 cheese-head screw each
1 washer each
1 bush each
2 hexagon nuts each
When reversing and tightening the hexagon nuts,
make sure the wheels turn easily.
Fit the lower bolts into the frame wall (7).
2 hexagon bolts
2 washers
2 serrated lock washers
2 hexagon nuts
Frame arms, frame struts, Fig. 5
Bolt together frame arms (2+3), frame struts (4), gus-
set plates (5+6) and the transport bow (11) .
6 hexagon bolts
8 serrated lock washers
6 hexagon nuts
2 hexagon bolts
Fasten the gusset plate with the cable clamp (5) at
the front right side.
Sieve drum insert
The drum remains attached to the frame.
Remove the drum bars fitted to the drum inside in
longitudinal direction. For the following remounting,
mark the position of the drum bars with a felt pen.
Fig. 6
Place the sieve insert (10) into the sieve drum in such
a way that the sieve edge is covered by a drum bar.
Push the rings at front and back into the sieve drum
and put them into a vertical position in the drum.
Fig. 7
Bolt the rings through the sieve mashes.
3 Allen screws each
3 washers each
3 serrated lock washers each
3 hexagon nuts each
Continue mounting both drum bars at the points ear-
lier marked with a felt pen.
10. Putting into operation
m ATTENTION!
Always make sure the device is fully assembled
before start-up!
Filling with material Fig. 8
Soil is always filled into the drum from the front.
• Before putting the implement into operation, ob-
serve the safety instructions.
20 | GB
M10x95 (j)
ø10 (e)
(k)
M10 (f)
M8 x 65 (g)
ø8 (h)
ø8,2 (b)
M8 (c)
M8x65 (g)
ø8,2 (b)
M8 (c)
M8 x 70 (l)
M6x16 (m)
ø6 (n)
A8,3 (o)
M6 (p)
www.scheppach.com
• All guards and safety devices must be fitted.
• After connection to the electrical power, your
RS400 is ready for service.
• Always attach the power cable to the clamp in the
gusset plate.
Setting up, Fig. 9
Depending on the place of setting up, incline the sieve
drum as required. Displace the hexagon bolt (arrow).
The degree of inclination depends on the type of soil
to be sieved.
For loose material we recommend more inclination,
and for solid material less inclination.
Angle positioning large - faster throughput - top hole
Angle positioning small - slower throughput - bottom
hole
Electrical connection
The installed electrical motor is connected and ready
for use. The connection meets the corresponding
VDE and DIN regulations.
The power connection on the part of the client, as
well as the extension cables used, must meet these
regulations.
Faulty power supply cables
Insulation damage often occurs at power supply ca-
bles.
Causes are:
• Pressure points when power supply cables are
routed through the window or door gaps.
• Bends due to improper fastening or guiding of the
power supply cables.
• Interfaces by running over the power supply cables.
• Insulation damage by pulling off the wall outlet.
• Cracks due to ageing of the insulation
Such defective power supply cables must not be used
and are extremely dangerous to life because of the in-
sulation damage! Check power supply cables regularly
for damage. Make sure that the power cable is not con-
nected to the mains supply when you check.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the marking H 07 RN. The printing of the
type designation on the connection cable is mandatory.
Single-phase motor
• Line voltage must be 230 V 50 Hz.
• Extension cables up to 25 m in length must have a
minimum cross section of 1.5 mm2, above 25 m at
least 2.5 mm2.
• The power supply is protected by a timed fuse of 16 A.
