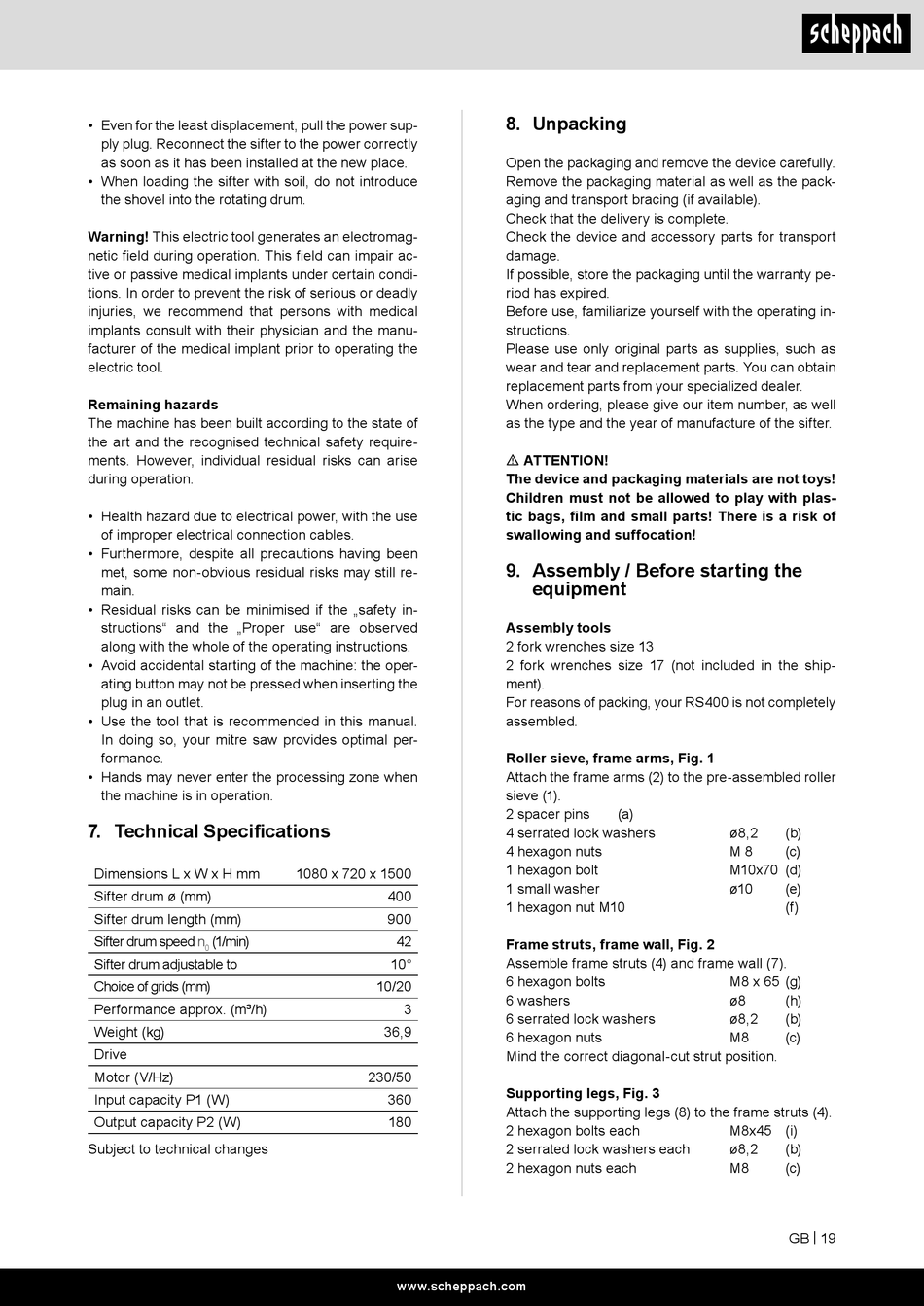

Scheppach RS400 Original Bedienungsanleitung Seite 19

• Even for the least displacement, pull the power sup-
ply plug. Reconnect the sifter to the power correctly
as soon as it has been installed at the new place.
• When loading the sifter with soil, do not introduce
the shovel into the rotating drum.
Warning! This electric tool generates an electromag-
netic field during operation. This field can impair ac-
tive or passive medical implants under certain condi-
tions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical
implants consult with their physician and the manu-
facturer of the medical implant prior to operating the
electric tool.
Remaining hazards
The machine has been built according to the state of
the art and the recognised technical safety require-
ments. However, individual residual risks can arise
during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the „safety in-
structions" and the „Proper use" are observed
along with the whole of the operating instructions.
• Avoid accidental starting of the machine: the oper-
ating button may not be pressed when inserting the
plug in an outlet.
• Use the tool that is recommended in this manual.
In doing so, your mitre saw provides optimal per-
formance.
• Hands may never enter the processing zone when
the machine is in operation.
7. Technical Specifications
Dimensions L x W x H mm
Sifter drum ø (mm)
Sifter drum length (mm)
Sifter drum speed n (1/min)
0
Sifter drum adjustable to
Choice of grids (mm)
Performance approx. (m³/h)
Weight (kg)
Drive
Motor (V/Hz)
Input capacity P1 (W)
Output capacity P2 (W)
Subject to technical changes
1080 x 720 x 1500
400
900
42
10°
10/20
3
36,9
230/50
360
180
www.scheppach.com
8. Unpacking
Open the packaging and remove the device carefully.
Remove the packaging material as well as the pack-
aging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport
damage.
If possible, store the packaging until the warranty pe-
riod has expired.
Before use, familiarize yourself with the operating in-
structions.
Please use only original parts as supplies, such as
wear and tear and replacement parts. You can obtain
replacement parts from your specialized dealer.
When ordering, please give our item number, as well
as the type and the year of manufacture of the sifter.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
9. Assembly / Before starting the
equipment
Assembly tools
2 fork wrenches size 13
2 fork wrenches size 17 (not included in the ship-
ment).
For reasons of packing, your RS400 is not completely
assembled.
Roller sieve, frame arms, Fig. 1
Attach the frame arms (2) to the pre-assembled roller
sieve (1).
2 spacer pins (a)
4 serrated lock washers
4 hexagon nuts
1 hexagon bolt
1 small washer
1 hexagon nut M10
Frame struts, frame wall, Fig. 2
Assemble frame struts (4) and frame wall (7).
6 hexagon bolts
6 washers
6 serrated lock washers
6 hexagon nuts
Mind the correct diagonal-cut strut position.
Supporting legs, Fig. 3
Attach the supporting legs (8) to the frame struts (4).
2 hexagon bolts each
2 serrated lock washers each
2 hexagon nuts each
ø8,2 (b)
M 8 (c)
M10x70 (d)
ø10 (e)
(f)
M8 x 65 (g)
ø8 (h)
ø8,2 (b)
M8 (c)
M8x45 (i)
ø8,2 (b)
M8 (c)
