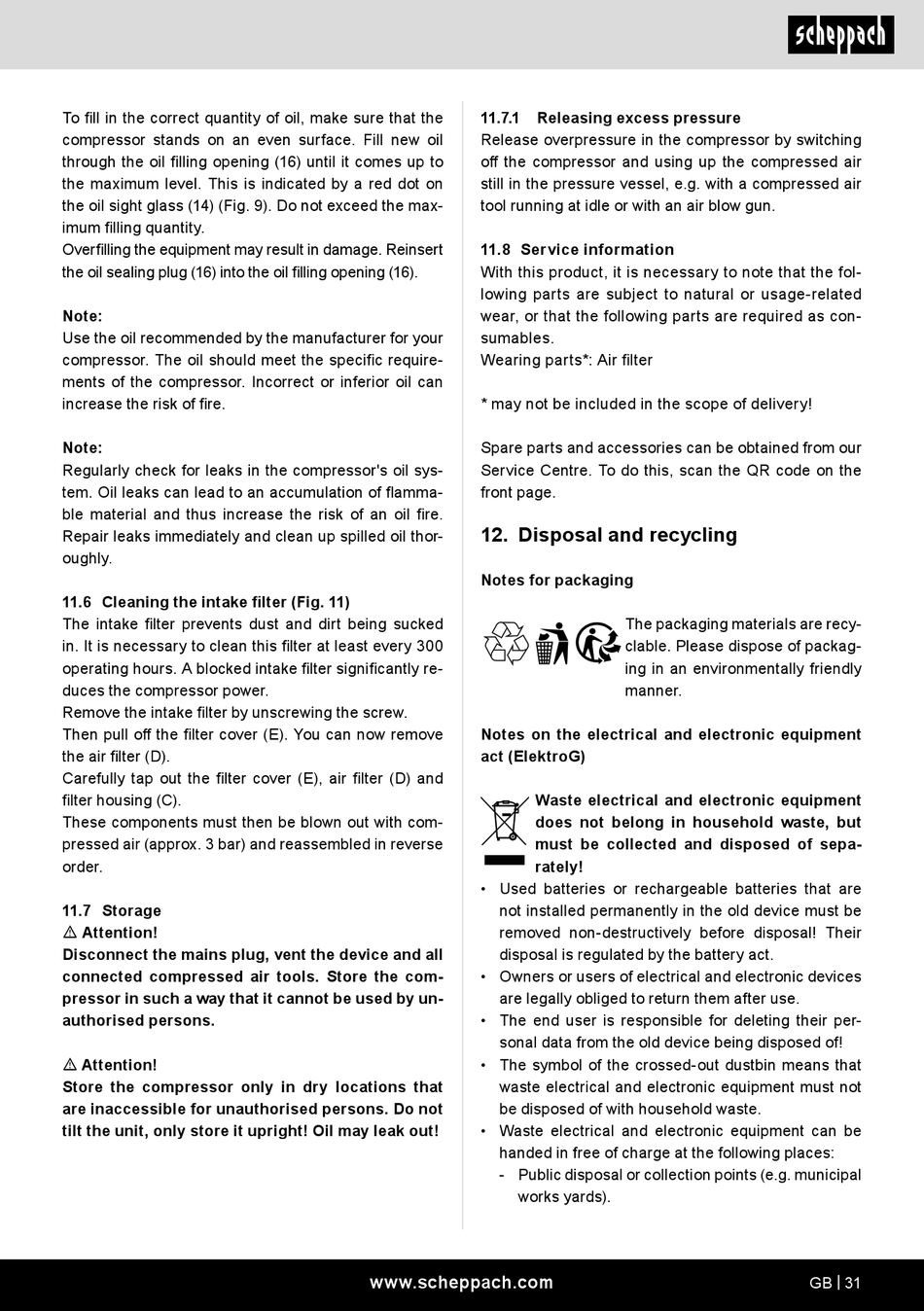

To fill in the correct quantity of oil, make sure that the
compressor stands on an even surface. Fill new oil
through the oil filling opening (16) until it comes up to
the maximum level. This is indicated by a red dot on
the oil sight glass (14) (Fig. 9). Do not exceed the max-
imum filling quantity.
Overfilling the equipment may result in damage. Reinsert
the oil sealing plug (16) into the oil filling opening (16).
Note:
Use the oil recommended by the manufacturer for your
compressor. The oil should meet the specific require-
ments of the compressor. Incorrect or inferior oil can
increase the risk of fire.
Note:
Regularly check for leaks in the compressor's oil sys-
tem. Oil leaks can lead to an accumulation of flamma-
ble material and thus increase the risk of an oil fire.
Repair leaks immediately and clean up spilled oil thor-
oughly.
11.6 Cleaning the intake filter (Fig. 11)
The intake filter prevents dust and dirt being sucked
in. It is necessary to clean this filter at least every 300
operating hours. A blocked intake filter significantly re-
duces the compressor power.
Remove the intake filter by unscrewing the screw.
Then pull off the filter cover (E). You can now remove
the air filter (D).
Carefully tap out the filter cover (E), air filter (D) and
filter housing (C).
These components must then be blown out with com-
pressed air (approx. 3 bar) and reassembled in reverse
order.
11.7 Storage
m Attention!
Disconnect the mains plug, vent the device and all
connected compressed air tools. Store the com-
pressor in such a way that it cannot be used by un-
authorised persons.
m Attention!
Store the compressor only in dry locations that
are inaccessible for unauthorised persons. Do not
tilt the unit, only store it upright! Oil may leak out!
11.7.1
Releasing excess pressure
Release overpressure in the compressor by switching
off the compressor and using up the compressed air
still in the pressure vessel, e.g. with a compressed air
tool running at idle or with an air blow gun.
11.8 Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wearing parts*: Air filter
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
12. Disposal and recycling
Notes for packaging
Notes on the electrical and electronic equipment
act (ElektroG)
Waste electrical and electronic equipment
does not belong in household waste, but
must be collected and disposed of sepa-
rately!
• Used batteries or rechargeable batteries that are
not installed permanently in the old device must be
removed non-destructively before disposal! Their
disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices
are legally obliged to return them after use.
• The end user is responsible for deleting their per-
sonal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that
waste electrical and electronic equipment must not
be disposed of with household waste.
• Waste electrical and electronic equipment can be
handed in free of charge at the following places:
- Public disposal or collection points (e.g. municipal
works yards).
www.scheppach.com
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
GB | 31
