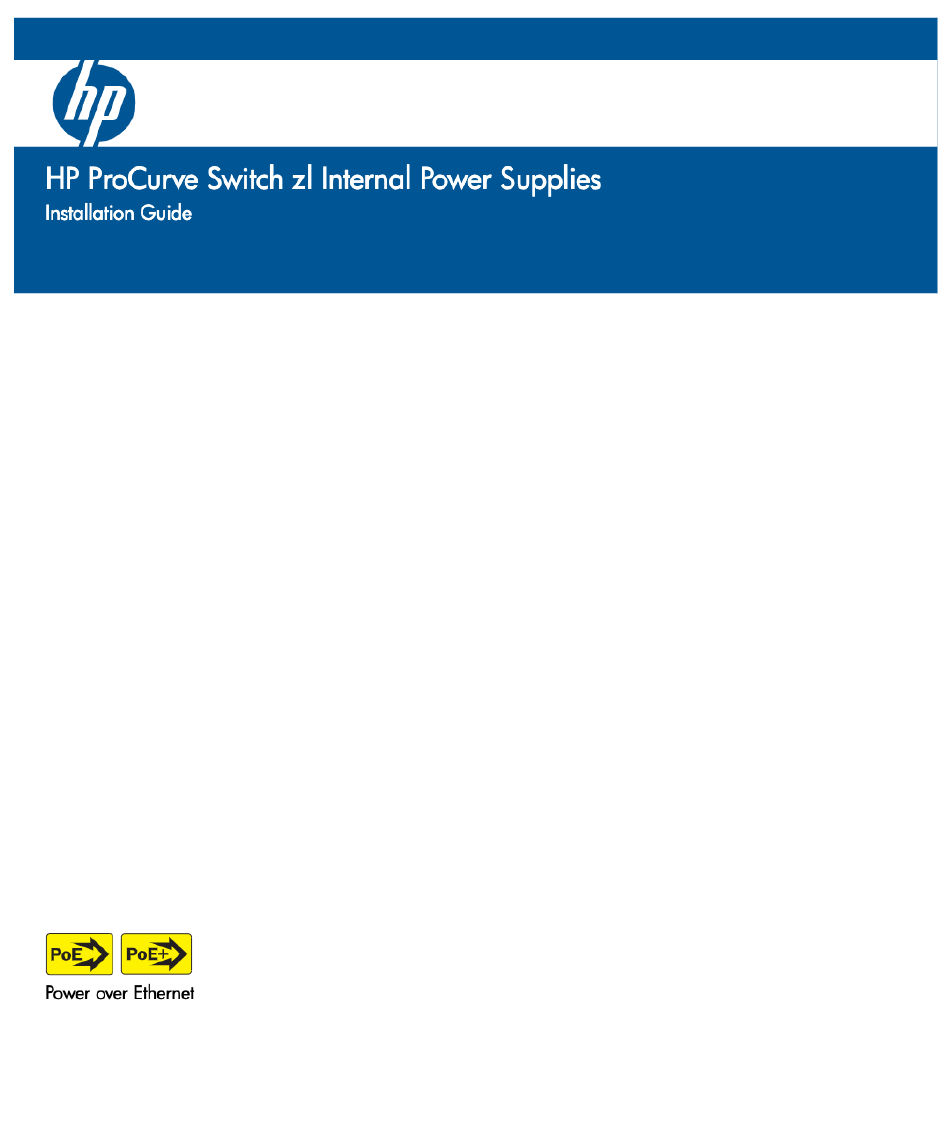

- Seite 1 HPProCurv Switch zl Internal P ower S upplies Installation Guide PoE+ Power over Ethernet...
- Seite 3 HP ProCurve Switch Internal Power Supplies Installation Guide...
- Seite 4 HP Procurve Switch 5412zl-96G J8700A Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or HP Procurve Switch 5412zl-96G PoE+ J9448A authorized dealer. HP Procurve Switch 8212zl J8715A HP Procurve...
- Seite 5 Contents Description.. Included Parts Installing the Power Supply... Installation Cautions: Installation Steps Troubleshooting. Customer Support Services Specifications.. Physical Electrical Environmental Safety Safety Information.. Informations concernant la sécurité.. Hinweise Sicherheit Considerazioni sulla sicurezza.. Consideraciones sobre seguridad Safety Information (Japan) . Safety Information (China) EMC Regulatory Statements .
- Seite 7 Power Supplies Description The HP ProCurve Switch zl Internal Power Supplies (J8712A, J8713A or J9306A) are redundant power supplies that you can add to any of the HP ProCurve zl switches to provide additional switch reliability. These power supplies can also be used with the HP ProCurve Power Supply Shelf (J8714A) to provide additional POE or PoE+ power to any of the zl switches.
- Seite 8 Description ProCurve Networking •O Unit provides 273 W for POE Power Fault • u_SA Figure 1. The J8712A - zl 87M PoE Power supply Networking Unit provides 900 W for POE 0000000 power Fault Figure 2. The J8713A- 1500WPoEPower supply...
- Seite 9 The J9306A zl 1500WPoE+Power supply Included Parts The Switch zl Internal Power Supply has the following components shipped with HP ProCurve Switch zl Internal Power Supply Installation Guide (this manual) Customer Support/Warranty booklet HP ProCurve Switch zl Internal Power Supply Read Me First...
- Seite 10 United Kingdom/HongKong/Singapore 8120-5334 Israel 8121-1009 8121-09731 U.SJCanada/Mexico (NEMA 5-15, 120V) Thailand 8121-0671 8121 «71 South Africa/lndia Taiwan (1IOVoperation) 8120-5341 I A NEMA L6-20,240Vpower cord is also available. Order part number 8121-0941. T o order go to http://www.hp.commuy/parts. Japan Power Cord Warning...
- Seite 11 Otherwise, damage to the equipment may result. If you are installing any of the X2 transceivers the operating ambient temperature should not exceed 400C (1040F). Seetransceiver specifications in Appendix A, of the HP ProCurve Series 8200zl Switch Installation and Getting Started Guide.
- Seite 12 Installing the Power Supply Installation Steps Follow these steps to install the power supply into the back of the switch: Remove the power supply slot cover with either a flat-bladed Torx T-10 screwdriver. Retain slot cover future use. Caution Make sure the AC power is not connected to the power supply being installed before installing the power supply into the switch.
- Seite 13 Installing the Power Supply Note Although the illustration shows a 5406zl switch, the installation procedure is the same all zl switches. Tighten the four retaining screws that hold the power supply in place until the screws are secure, as shown in the next illustration. The screws can be tightened with either a flat-bladed or Torx T-10 screwdriver.
- Seite 14 Installing the Power Supply Note The Switch zl Internal Power Supply does not have a power switch. It is powered on when the power cord is connected to the supply and to a power source. Please see the "Installation Cautions" on page 5. Verify the power supply is installed correctly by checking the LEDs...
- Seite 15 If the power source and power cord are 0K and this condition persists, switch power supply may be faulty. Call your HP-authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer...
- Seite 16 Width: 16.0 cm (6.3 in) Depth: Height: 13.0cm (5.1 in) Electrical The HP ProCurve Switch zl Internal Power Supplies automatically adjust to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz. J8712A J8713A AC voltage: 100-127 volts...
- Seite 17 Specifications Environmental Operating Non-Operating OOC to 550C (320Ft0 131OF) to 700C (-400Ft0 1580F) Temperature. 15%to 95% at 400C(1040F) 15%to at 650C(1490F) Relative humidity: (non-condensing) Maximum altitude: 3.0 km (10,000 ft) 4.6 km (15,000 ft) J8712A 4.6 km (15,000ft) J8713A 3.0 km (10,000 ft) 3.0 km (10,000 ft) 4.6 km (15,000 ft) J9306A...
- Seite 18 Safety Information Safety Information Documentation reference symbol.Ifthe product is markedwith this symbol,refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death. Caution A Caution in the manual denotes a hazard that can damage equip- ment.
- Seite 19 Informations concernant la sécurité Informations concernant la sécurité Symbolede référence å la documentation. Si le produit est marqué de ce symbole, reportez-vous å Iadocumentation duproduit afin d'obtenir des informations plus détaillées. WARNING Dans la documentation, un WARNING indique un danger susceptible d'entrainer des dommages corporels ou la mort.
- Seite 20 Hinweise zur Sicherheit Hinweise Sicherheit Symbolfür Dokumentationsverweis. Wenn das Produkt mit diesem Symbolmarkiert ist, schlagen Sie bitte in der Produktdokumentation nach, um mehr Informationen über das Produkt zu erhalten. WARNING Symbolfür Dokumentationsverweis. Wenn das Produkt mit diesem Symbolmarkiert ist, schlagen Sie bitte in der Produktdokumentation nach, um mehr Informationen über das Produkt zu erhalten.
- Seite 21 Considerazioni sulla sicurezza Considerazioni sulla sicurezza Simbolo di riferimento alla documentazione. Se il prodotto é contrassegnato da questo simbolo, fare riferimento alla documen- tazione sul prodotto per ulteriori informazioni su di esso. WARNING Ladicitura WARNINGdenota un pericolo che puö causare lesioni o morte.
- Seite 22 Consideraciones sobre seguridad Consideraciones sobre seguridad Simbolo de referencia a la documentaci6n. Si el producto va marcado con este simbolo, consultar Ia documentaciön del producto a fin de obtener mayor informaciån sobre el producto. WARNING Una WARNING en la documentaciön sefiala un riesgo que podria resultar en lesiones o la muerte.
- Seite 23 Safety Information (Japan) Safety Information (Japan) AVARNINGJ WARNING rCAUTlONJ CAUTION rWARNINGJ rCAUTlONJ fid"Uåff. F • ± •y • • LAN Japan Power Cord Warning...
- Seite 24 Safety Information (China) Safety Information (China) 010-62623888 6101 100080 010-65645959 m: 010-65645735...
- Seite 25 EMCRegulatory Statements EMC Regulatory Statements U.S.A. FCC Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference when the equipment...
- Seite 26 uenuex ICIY{QEU! IIOE *II-g-IY *-35 ' rlö10 lclc -a-æs-ß* äö-g-oæ *lclclO eoaoy swatua1e1S lumeln6aH...
- Seite 27 Recycle Statements Recycle Statements Waste Electrical and Electronic Equipment (WEEE) Statements Disposal of Waste Equipment by Users in Private Household in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.
- Seite 28 Recycle Statements Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella Jos tuotteessa tai sen pakkauksessaontämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana. Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten Iaitteiden kierrätyspisteeseen. Hävitettävien Iaitteiden erillinen käsittely ja kierrätys auttavat säästämään Iuonnonvaroja ja varmista- maan,että...
- Seite 29 Recycle Statements Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non puö essere smaltitoinsieme airifiutidomestici. Éresponsabilitå d ell'utente smaltire Ieapparecchiature consegnan- dole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed elettroniche.
- Seite 30 Recycle Statements Descarte de Lixo Elétrico na Comunidade Européia Este simbolo encontrado no produto ou na embalagem indica que o produto näo deve ser descartado nolixodoméstico comum.Éresponsabilidade doclientedescartar o material u sado(lixoelétrico), encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse tipo de lixo ajudaräo a conservar as reservas naturais;...
- Seite 31 China Regulatory China Regulatory (Hg) (PBDE) (Cr(V1)) (PBB) (PCA) SJ/TI 1363-2006 sJ/T11363-2006 NetworkingbyHP This information is required by the People's Republic of China as per their legislation titled "Management Methods for Controlling Pollution by Electronic Information Products".
- Seite 32 O Copyright Hewlett-Packard Company, and services. N othing hereinshouldbe construed as constitutingan additional warranty. 2005-2010, 2012. HP will not be liable for technical or editorial errors or omissions contained herein. Printed in Singapore March 2012 Manual Part...
