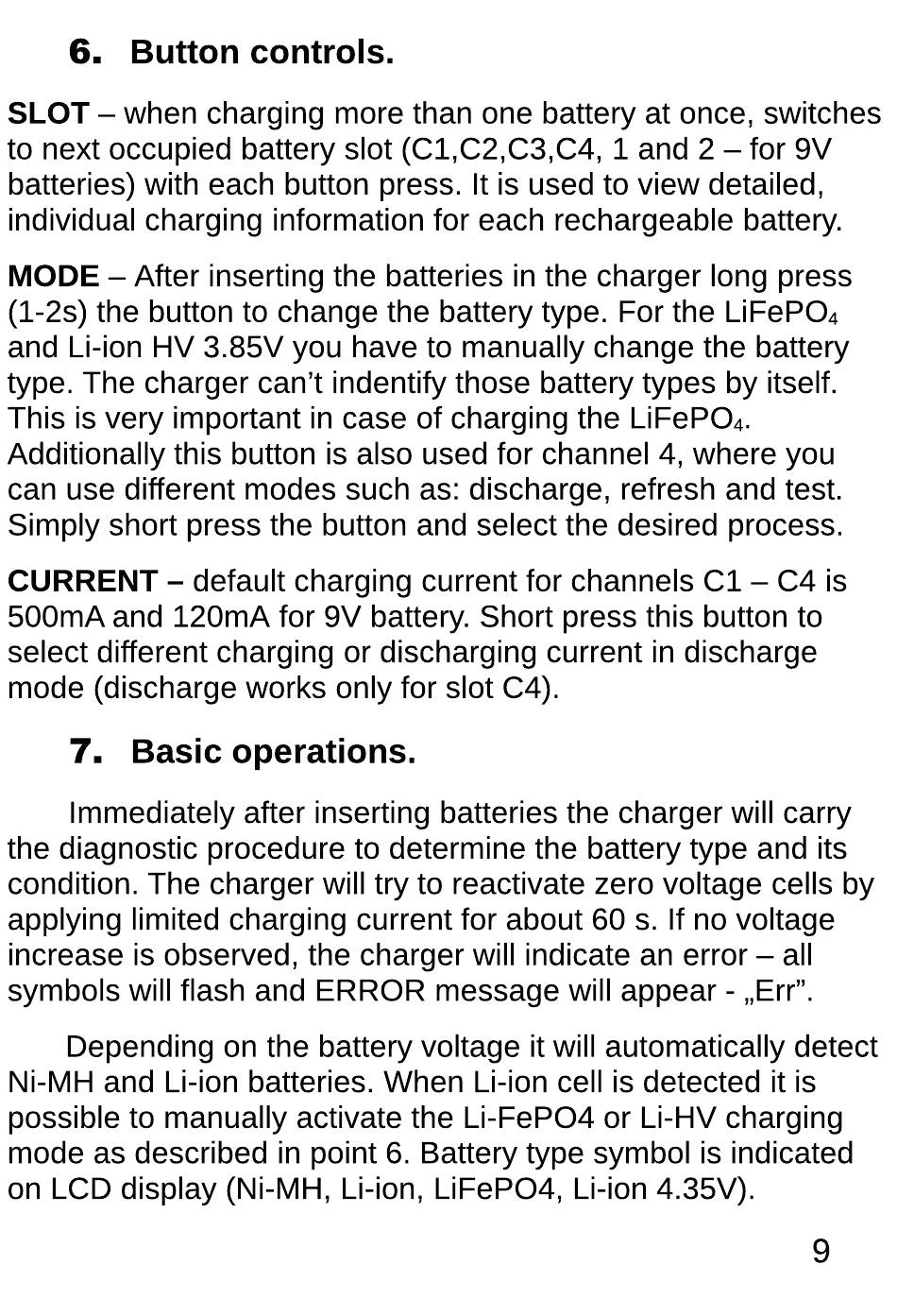

6.
Button
SLOT
when charging more than one battery at once, switches
to next occupied battery slot (CI,C2,C3,C4,
batteries) with each button press. It is used to view detailed,
individual charging information for each rechargeable battery
MODE —After inserting the batteries in the charger long press
(I-2s) the button to change the battery type. For the LiFeP04
and Li-ion HV 3 85V you have to manually change the battery
type. The charger can't indentify those battery types by itself.
This is very important in case of charging the LiFeP04
Additionally this button is also used for channel 4, where you
can use different modes such as: discharge, refresh and test
Simply short press the button and select the desired process
CURRENT - default charging current for channels Cl
500mA and 120mA for 9V battery. Short press this button to
select different charging or discharging current in discharge
mode (discharge works only for slot C4)
7.
Basic operations.
Immediately after inserting batteries the charger will carry
the diagnostic procedure to determine the battery type and its
condition. The charger will try to reactivate zero voltage cells by
applying limited charging current for about 60 s. If no voltage
increase is observed, the charger will indicate an error —all
symbols will flash and ERROR message will appear - „Err"
Depending on the battery voltage it will automatically detect
Ni-MH
and
Li-ion
possible to manually activate the Li-FeP04 or Li-HV charging
mode as described in point 6. Battery type symbol is indicated
on LCD display (Ni-MH, Li-ion, LiFeP04, Li-ion 4.35V)
controls.
batteries.
When
I and 2 —for 9V
Li-ion
cell
is detected
C4 is
it is
9
