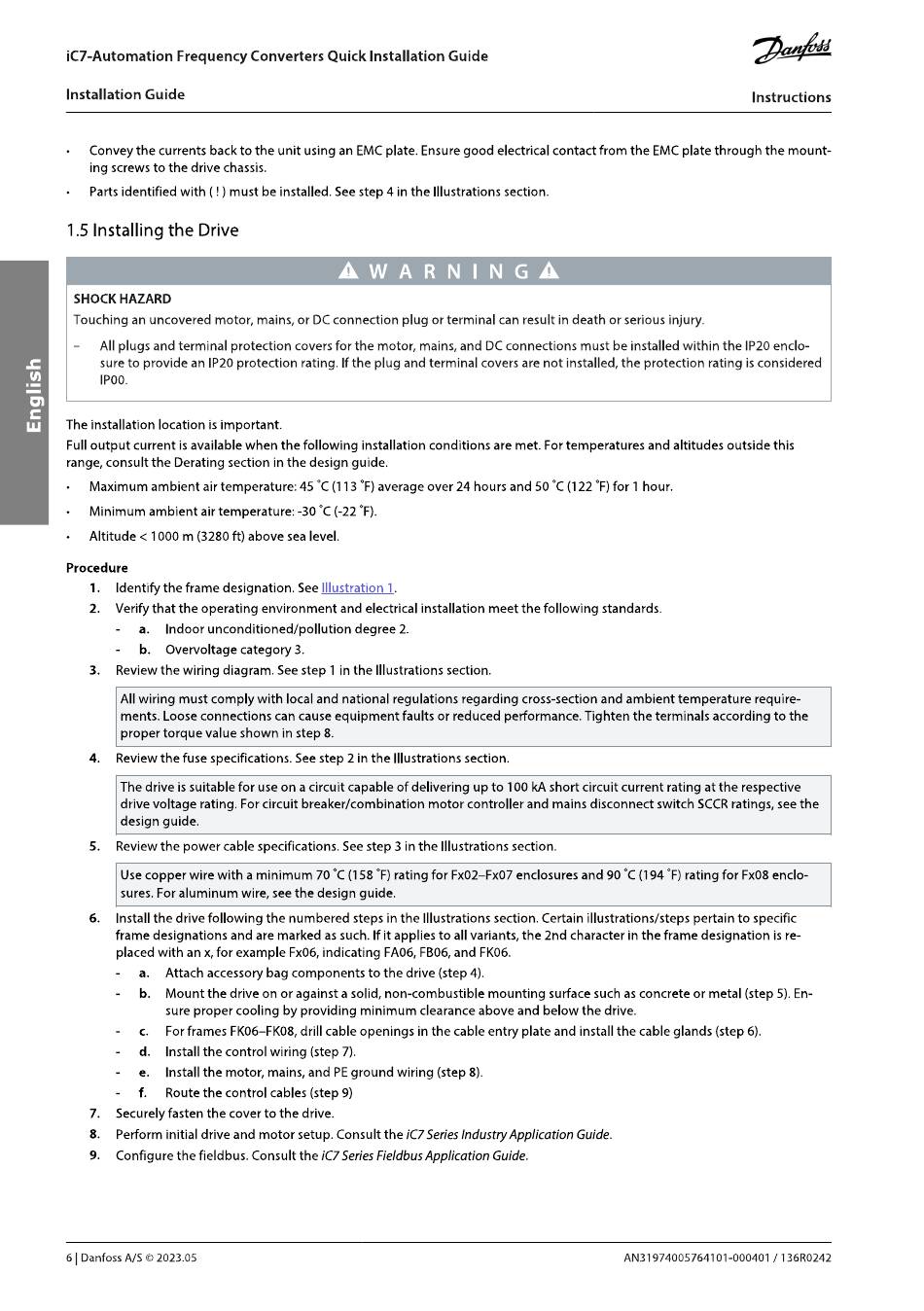

Danfoss iC7 Serie Installationshandbuch Seite 4

iC7-Automation Frequency Converters Quick Installation
Installation Guide
Conveythe currents back to the unit using an EMCplate. Ensuregood electrical contact from the EMCplate through the mount-
ing screws to the drive chassis.
Parts identified with ( ! ) must be installed. See step 4 in the Illustrations section.
1.5 Installing the Drive
SHOCK HAZARD
Touching an uncovered motor, mains,or DCconnection plug or terminal can result in death or serious injury.
All plugs and terminal protection covers for the motor, mains, and DC connections must be installed within the IP20 enclo-
sure to provide an IP20 protection rating. f the plug and terminal covers are not installed, the protection rating is considered
The installation location is important.
Full output current is available when the following installation conditions are met. For temperatures
range, consult the Derating section in the design guide.
Maximum ambient air temperature: 45 C (113OF) a verageover 24 hours and 50 oc(122 OF) for 1 hour.
Minimum ambient air temperature: -30oc (-22OF).
Altitude < 1000 m (3280 ft) above sea level.
Procedure
Identify the frame designation. See Illustration 1.
Verify that the operating environment and electrical installation meet the following
2.
Indoor unconditioned/pollution
b. Overvoltage category 3.
Reviewthe wiring diagram. Seestep 1 in the Illustrations section.
3.
All wiring must comply with local and national regulations regarding cross-sectionand ambient temperature require
ments. Loose connections can cause equipment faults or reduced performance. Tighten the terminals according to the
proper torque value shown in step 8.
4. Review the fuse specifications. See step 2 in the Illustrations section.
The drive is suitable for use on a circuit capable of delivering up to 100 kA short circuit current rating at the respective
drive voltage rating. For circuit breaker/combination
design guide.
Review the power cable specifications. See step 3 in the Illustrations section.
5.
Usecopper wire with a minimum 70
sures. For aluminum wire, see the design guide.
6. Install the drive following the numbered steps in the Illustrations section. Certain illustrations/steps
frame designations and are marked as such. If it applies to all variants, the 2nd character in the frame designation is re
placed with an x,for example Fx06,indicating FA06,FB06, a nd FK06.
Attach accessorybag components to the drive (step 4).
a.
b. Mount the drive on or against a solid, non-combustible
sure proper cooling by providing
For frames FK06-FK08, drill cable openings in the cable entry plate and install the cable glands (step 6).
d. Install the control wiring (step 7).
Install the motor, mains, and PEground wiring (step 8).
e.
Route the control cables (step 9)
Securely fasten the cover to the drive.
7.
Perform initial drive and motor setup. Consult the iC7 Series IndustryApplication Guide.
8.
Configure the fieldbus. Consultthe iC7Series FieldbusApplication Guide.
9.
6 Danfoss 2023.05
Guide
A WARNING
degree 2.
motor controller and mains disconnect switch SCCRratings, see the
(158OF) r ating for Fx02 Fx07enclosuresand 90
mounting surface such as concrete or metal (step 5). En
minimum clearance above and below the drive.
A
and altitudes outside this
standards.
(194OF) r ating for Fx08enclo
pertain to specific
AN31974005/64101-000401
Instructions
/ 136R0242
