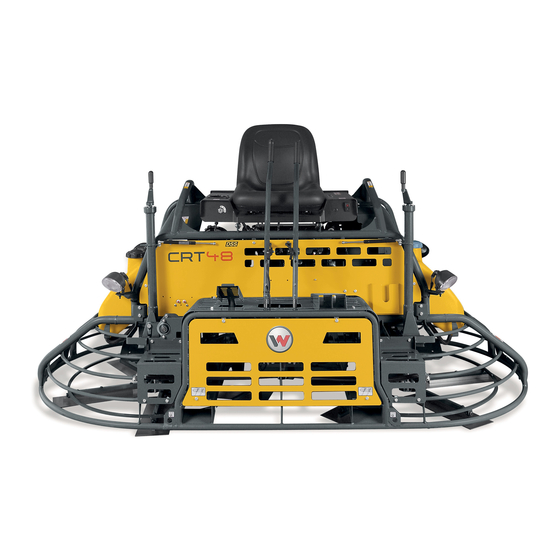

0620112 01.2017 Ride-On Trowels Besitzbare Flügelglätter Alisadoras Dobles Truelles auto portées CRT48-35V Parts Book Ersatzteile Lista de Repuestos Liste de Pièces de Rechange www.wackerneuson.com...
Seite 3
Nameplate CRT48-35V Typenschild Plaque signalétique Placa de Identificación A nameplate listing the Model Number, Item Number, Revision, and Serial Number is attached to each unit. Please record the information found on this plate so it will be available should the nameplate become lost or damaged. When ordering parts or requesting service information, you will always be asked to specify the model, item number, revision number, and serial number of the unit.
Seite 4
Part Numbers - Boldface / Patents CRT48-35V Fettgedruckte Artikelnummern / Patente Números de partes en negritas / Patentes Numéros de pièce - en caractères gras / Brevets d’Invention Part Numbers appearing in boldface type are recommended spare parts. This means that these parts are subject to wear under normal operating conditions and may require periodic service or replacement.
Seat Assembly CRT48-35V Sitz Komplett Asiento Compl. Siège Compl. 0620112 - 234...
Seite 13
Seat Assembly CRT48-35V Sitz Komplett Asiento Compl. Siège Compl. Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Seat Asiento 5200000227 Sitz Siège Plate Placa 14 0171655 Platte Plaque Bracket Soporte 20 0165594...
Seite 14
Seat Assembly CRT48-35V Sitz Komplett Asiento Compl. Siège Compl. 0620112 - 234...
Seite 15
Seat Assembly CRT48-35V Sitz Komplett Asiento Compl. Siège Compl. Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff 1/2 x 1in Clevis pin Pasador de horquilla 520 0173840 Bolzen-Lastöse Vis à oeillet Rivet...
Seite 16
Tank cpl. CRT48-35V Tank kpl. Tanque compl. Réservoir compl. 0620112 - 234...
Seite 29
Mechanical Steering CRT48-35V Mechanische Steuerung Dirección mecánica Direction mécanique Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Switch cap Tapa del interruptor 52 0153562 Schalterkappe Couvercle de l'interrupteur Push button switch Interruptor de botón...
Seite 30
Mechanical Steering CRT48-35V Mechanische Steuerung Dirección mecánica Direction mécanique 0620112 - 234...
Seite 31
Mechanical Steering CRT48-35V Mechanische Steuerung Dirección mecánica Direction mécanique Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff M8 x 55 DIN931 Hexagonal head cap screw Tornillo hexagonal 419 0011344 Sechskantschraube Vis à tête hexagonale 24Nm/18ft.lbs...
Gearbox/Right CRT48-35V Getriebegehäuse/Rechts Caja de Engranajes/Derecha Boîte de Vitesses/Droite 0620112 - 234...
Seite 41
Gearbox/Right CRT48-35V Getriebegehäuse/Rechts Caja de Engranajes/Derecha Boîte de Vitesses/Droite Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Gearbox Caja de engranajes 56 0115919 Getriebegehäuse Boîte de vitesses Cover Tapa 57 0115920 Deckel...
Seite 42
Gearbox/Right CRT48-35V Getriebegehäuse/Rechts Caja de Engranajes/Derecha Boîte de Vitesses/Droite 0620112 - 234...
Seite 43
Gearbox/Right CRT48-35V Getriebegehäuse/Rechts Caja de Engranajes/Derecha Boîte de Vitesses/Droite Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Hexagonal head cap screw Tornillo hexagonal 416 0012362 Sechskantschraube Vis à tête hexagonale 24Nm/18ft.lbs M12 x 35...
Gearbox/Left CRT48-35V Getriebegehäuse/Links Caja de Engranajes/Izquierda Boîte de Vitesses/Gauche 0620112 - 234...
Seite 45
Gearbox/Left CRT48-35V Getriebegehäuse/Links Caja de Engranajes/Izquierda Boîte de Vitesses/Gauche Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Gearbox Caja de engranajes 56 0115919 Getriebegehäuse Boîte de vitesses Cover Tapa 57 0115920 Deckel...
Seite 46
Gearbox/Left CRT48-35V Getriebegehäuse/Links Caja de Engranajes/Izquierda Boîte de Vitesses/Gauche 0620112 - 234...
Seite 47
Gearbox/Left CRT48-35V Getriebegehäuse/Links Caja de Engranajes/Izquierda Boîte de Vitesses/Gauche Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Hexagonal head cap screw Tornillo hexagonal 416 0012362 Sechskantschraube Vis à tête hexagonale 24Nm/18ft.lbs M12 x 35...
Seite 48
Drive cpl. CRT48-35V Antrieb kpl. Sistema Impulsor compl. Entraînement compl. 0620112 - 234...
Cylinder Head CRT48-35V Zylinderkopf Culata Culasse Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Cylinder head Culata 0216157 Zylinderkopf Culasse Cylinder head gasket Junta de culata del cilindro 0216063 Zylinderkopfdichtung Joint de culasse de cylindre...
Seite 66
Cylinder Head CRT48-35V Zylinderkopf Culata Culasse 0620112 - 234...
Seite 67
Cylinder Head CRT48-35V Zylinderkopf Culata Culasse Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Push rod Levantaválvula 1026 0216072 Stoßstange Poussoir de soupape Rocker arm Balancín 1029 0208235 Kipphebel Culbuteur Lifting bracket Ménsula alzadora...
Valve Kit/Engine Gasket Kit/Carburetor Kit CRT48-35V Motorreparaturventilsatz/Motordichtungssatz/Vergas Juego de Válvula de Reparación/Juego de Juntas de Jeu de Joints de Moteur/de Car 0620112 - 234...
Seite 87
Valve Kit/Engine Gasket Kit/Carburetor Kit CRT48-35V Motorreparaturventilsatz/Motordichtungssatz/Vergas Juego de Válvula de Reparación/Juego de Juntas de Jeu de Joints de Moteur/de Car Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Oil seal Empaque de aceite 0216125 Öldichtung...
Seite 88
Valve Kit/Engine Gasket Kit/Carburetor Kit CRT48-35V Motorreparaturventilsatz/Motordichtungssatz/Vergas Juego de Válvula de Reparación/Juego de Juntas de Jeu de Joints de Moteur/de Car 0620112 - 234...
Seite 89
Valve Kit/Engine Gasket Kit/Carburetor Kit CRT48-35V Motorreparaturventilsatz/Motordichtungssatz/Vergas Juego de Válvula de Reparación/Juego de Juntas de Jeu de Joints de Moteur/de Car Measurem./Abm. Norm Ref. Part No. Qty. Description Descripción Pos. Artikel Nr. Beschreibung Description Sealant Torque/Drehm. Schmierstoff Intake gasket Junta de admisión...
Seite 90
