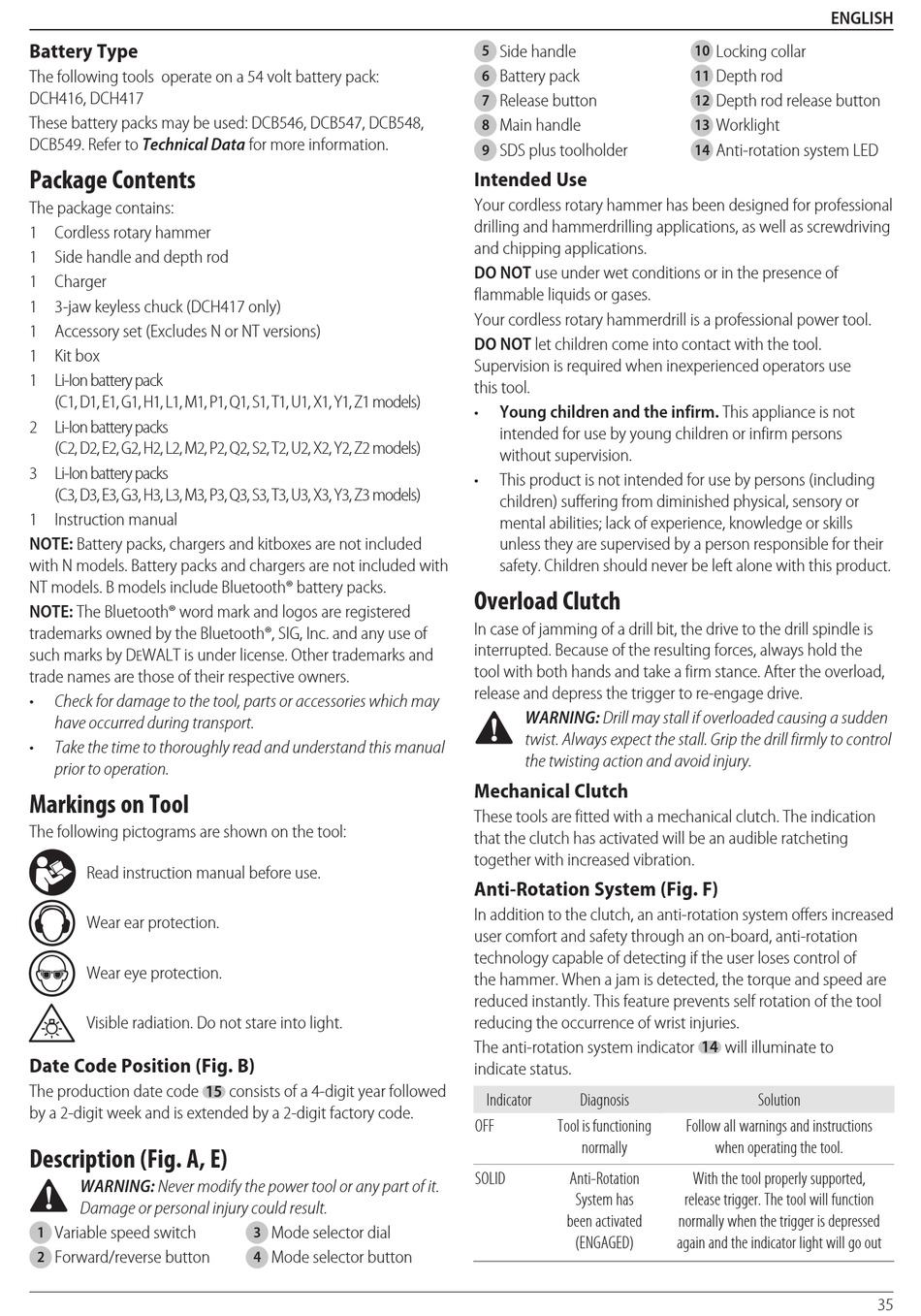

Battery Type
The following tools operate on a 54 volt battery pack:
DCH416, DCH417
These battery packs may be used: DCB546, DCB547, DCB548,
DCB549. Refer to Technical Data for more information.
Package Contents
The package contains:
1 Cordless rotary hammer
1 Side handle and depth rod
1 Charger
1 3-jaw keyless chuck (DCH417 only)
1 Accessory set (Excludes N or NT versions)
1 Kit box
1 Li-Ion battery pack
(C1, D1, E1, G1, H1, L1, M1, P1, Q1, S1, T1, U1, X1, Y1, Z1 models)
2 Li-Ion battery packs
(C2, D2, E2, G2, H2, L2, M2, P2, Q2, S2, T2, U2, X2, Y2, Z2 models)
3 Li-Ion battery packs
(C3, D3, E3, G3, H3, L3, M3, P3, Q3, S3, T3, U3, X3, Y3, Z3 models)
1 Instruction manual
nOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. B models include Bluetooth® battery packs.
nOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by D
WALT is under license. Other trademarks and
e
trade names are those of their respective owners.
•
Check for damage to the tool, parts or accessories which may
have occurred during transport.
•
Take the time to thoroughly read and understand this manual
prior to operation.
Markings on Tool
The following pictograms are shown on the tool:
a
Read instruction manual before use.
g
Wear ear protection.
f
Wear eye protection.
n
Visible radiation. Do not stare into light.
Date Code Position (Fig. B)
The production date code
15
by a 2-digit week and is extended by a 2-digit factory code.
Description (Fig. A, E)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury could result.
Variable speed switch
1
Forward/reverse button
2
consists of a 4-digit year followed
Mode selector dial
3
Mode selector button
4
Side handle
5
Battery pack
6
Release button
7
Main handle
8
SDS plus toolholder
9
Intended Use
Your cordless rotary hammer has been designed for professional
drilling and hammerdrilling applications, as well as screwdriving
and chipping applications.
DO nOT use under wet conditions or in the presence of
flammable liquids or gases.
Your cordless rotary hammerdrill is a professional power tool.
DO nOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
this tool.
•
Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
•
This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with this product.
Overload Clutch
In case of jamming of a drill bit, the drive to the drill spindle is
interrupted. Because of the resulting forces, always hold the
tool with both hands and take a firm stance. After the overload,
release and depress the trigger to re-engage drive.
WARNING: Drill may stall if overloaded causing a sudden
twist. Always expect the stall. Grip the drill firmly to control
the twisting action and avoid injury.
Mechanical Clutch
These tools are fitted with a mechanical clutch. The indication
that the clutch has activated will be an audible ratcheting
together with increased vibration.
Anti-Rotation System (Fig. F)
In addition to the clutch, an anti-rotation system offers increased
user comfort and safety through an on-board, anti-rotation
technology capable of detecting if the user loses control of
the hammer. When a jam is detected, the torque and speed are
reduced instantly. This feature prevents self rotation of the tool
reducing the occurrence of wrist injuries.
The anti-rotation system indicator
indicate status.
Indicator
Diagnosis
OFF
Tool is functioning
normally
SOLID
Anti‑Rotation
System has
been activated
(ENGAGED)
EnGLIsh
Locking collar
10
Depth rod
11
Depth rod release button
12
Worklight
13
Anti-rotation system LED
14
14
will illuminate to
Solution
Follow all warnings and instructions
when operating the tool.
With the tool properly supported,
release trigger. The tool will function
normally when the trigger is depressed
again and the indicator light will go out
35
