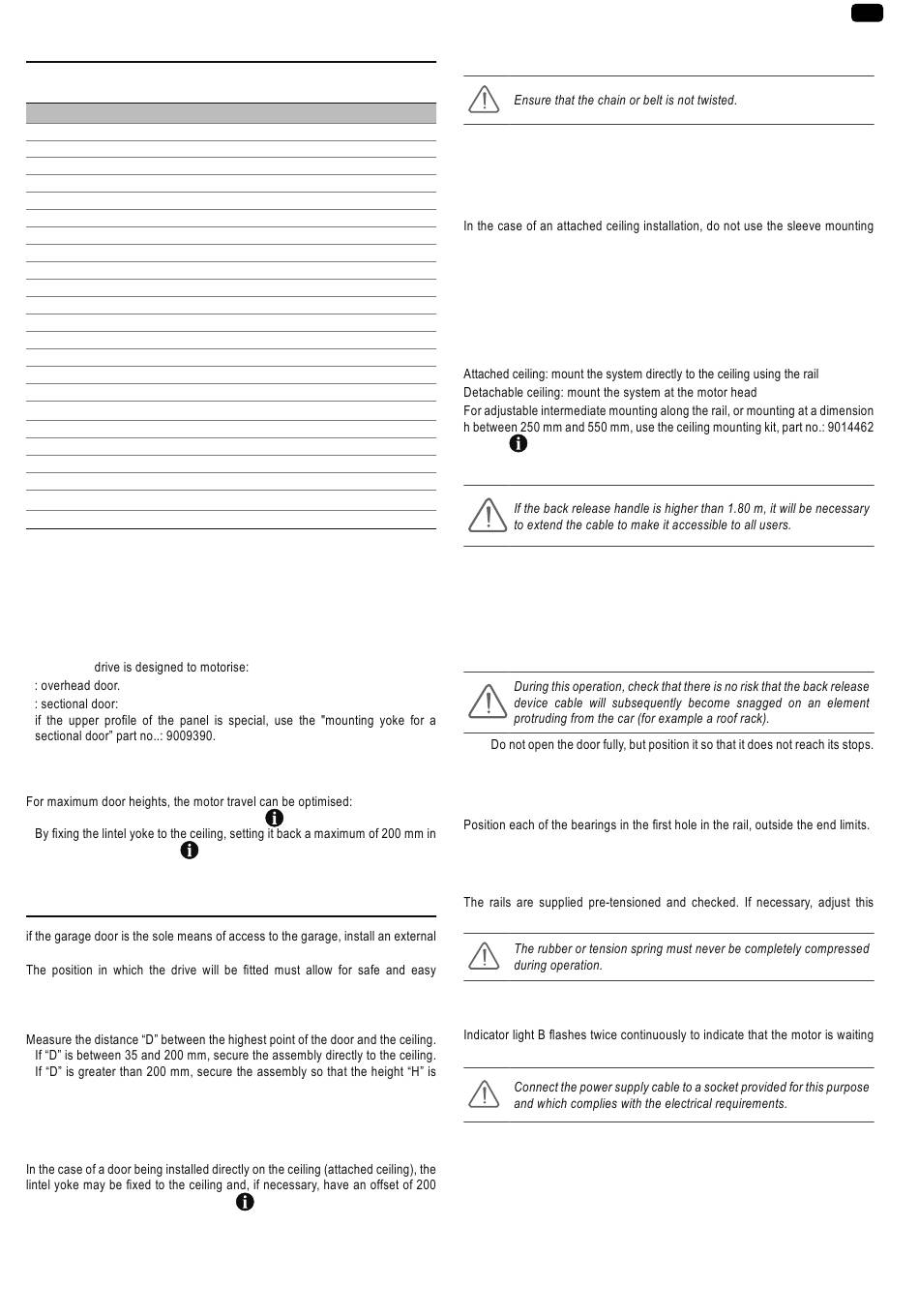

DEXXO COMPACT RTS
2 - PRODUCT DESCRIPTION
2.1 Composition - Fig. 1
No. Qty Description
1 1 Motor head
2 1 Flap
3 1 Lintel bracket
4 1 Door bracket
5 2 Ceiling mounting bracket
6 2 Motor head mounting bracket
7 1 Manual back release device
8 1 Connecting arm
9 1 End limit stop
10 4 TCB-H 4.2x13 zn self-tapping screws
11 1 Power supply cord
12 4 TH10 M8x12 zn washer screws
13 2 TH M8x16 zn screws
14 6 HU8 nut
15 2 Shaft
16 2 Circlips
17 4 Thread-forming screws Ø 4x8
18a 1 Single unit rail
18b 1 2-part rail
18b1 1 Sleeve
18b2 8 Thread-forming screws Ø 4x8
19 2 Remote control*
20 2 Chain bearings
* The model and number of remote controls may vary depending on the pack.
2.2 Field of application - Fig. 2
This drive is exclusively intended to equip a garage door designed for indoor
residential use not exposed to inclement weather.
Types of door (Fig.2)
The DEXXO
A
B
-
Door dimensions (Fig. 2)
Garage doors up to a surface area of 7 m² can be motorised
- By mounting the motor head at 90° (Fig. 6-
-
relation to the lintel (Fig. 4-
- By cutting the connecting arm.
3 - INSTALLATION
back release device (ref. 9012961 or ref. 9012962).
manual release of the product.
3.1 Installation height - Fig. 3
-
-
between 10 and 200 mm.
3.2 installation steps - Fig. 4 to 14
Mounting the lintel yoke and door yoke (Fig. 4)
mm max in relation to the lintel. (Fig. 4-
©
Copyright 2015 SOMFY ACTIVITES SA. All rights reserved.
).
)
).
Assembling the 2-part rail (Fig. 5)
[1]. [2]. [3]. Unfold the 2 sections of the rail.
[4]. Assemble the 2 sections of the rail using the sleeve.
[5]. Secure the assembly using 8 mounting screws.
[6]. Tighten the nut to tension the chain or belt. The compressed rubber must
measure 18 and 20 mm.
The mounting screws must not penetrate the rail (do not drill).
screws.
Assembling the rail to the motor head (Fig. 6)
Mounting the assembly on the garage ceiling (Fig. 7 to 9)
Mounting the lintel yoke (Fig. 7)
Mounting to the ceiling
(Fig. 9 - ).
Mounting the arm to the door and carriage (Fig. 10)
[1]. Release the carriage using the manual back release device.
[2]. Bring the carriage level with the door.
[3]. Secure the arm to the door yoke and carriage.
Adjusting and mounting the opening stop (Fig. 11)
[1]. Release the carriage using the manual back release device and move the
door to the open position.
[2]. Position the stop against the carriage and secure it to the rail.
Mounting the chain bearings (Fig. 12)
For chain rails only.
Ensure that the bearing is fully pushed in so that the positioning lug protrudes
past the outside of the rail.
Checking the tension of the chain or belt (Fig. 13)
tension.
Connection to the electrical power supply (Fig. 14)
Connect to the mains supply.
for auto-programming.
EN
(Fig. 8).
(Fig. 9)
4
