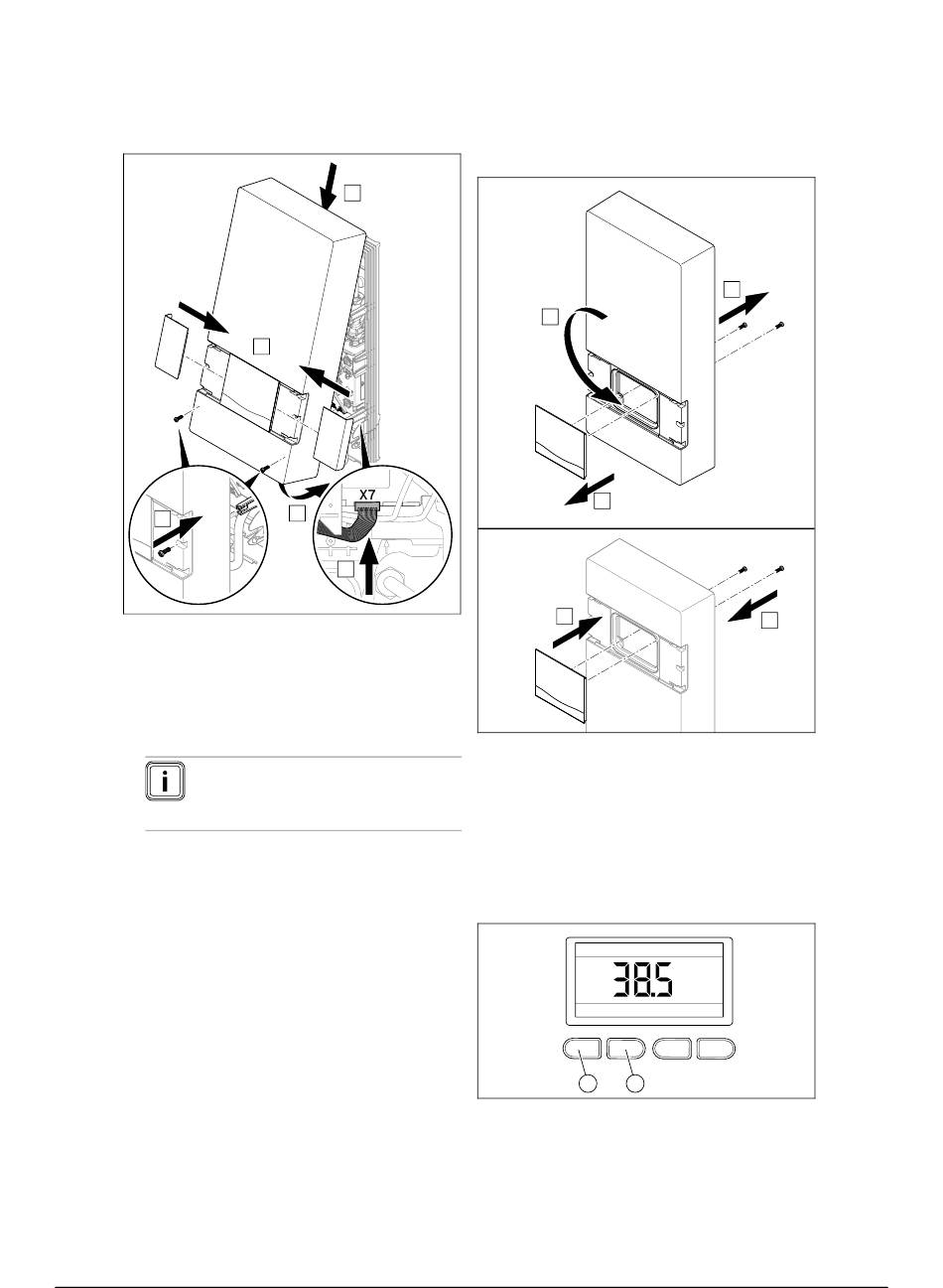

6.2 Fitting the product casing
E
C
D
If the cable for the display is not plugged
into the electronics, the electronics cannot
regulate the power. The outlet temperature
is 30 °C.
▶
Refit the product casing as shown.
Note
Check whether the product cas-
ing has been installed correctly.
0020288446_00 electronicVED exclusive Installation instructions
6.3 Attaching the product casing
A
B
▶
Remove the control panel from the
product casing.
▶
Turn the product casing by 180°.
▶
Install the control panel in the product
casing.
▶
Attach the product casing. (→ Page 47)
6.4 Checking the function
1. Connect the product to the power grid
(switch on the circuit breaker).
Start-up 6
so that it is rotated by 180°
C
180°
B
D
max. 42 °C
°C
– + MEMO eco
1 2
A
E
