CHAPTER 1

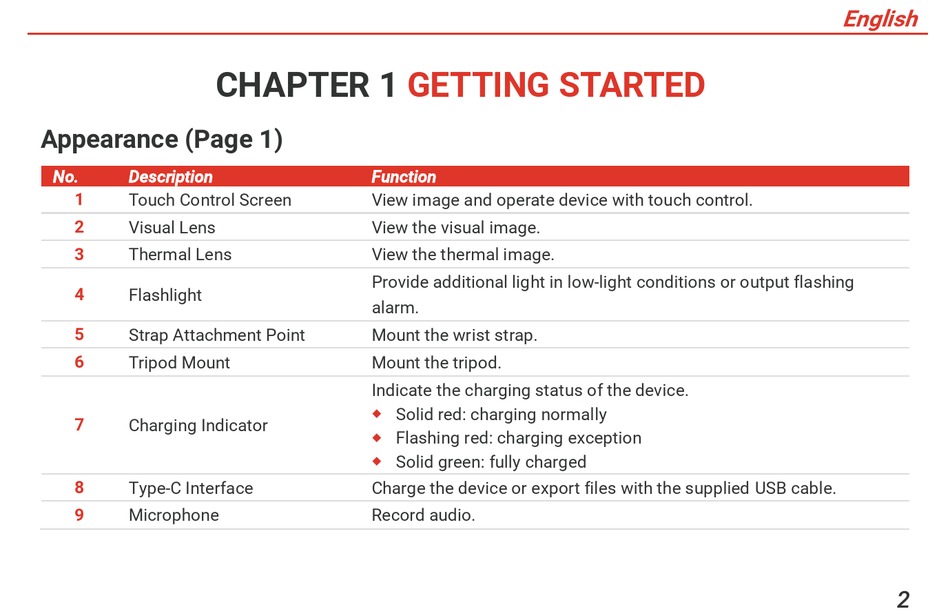

Appearance (Page 1)
No. Description
Touch Control Screen
1
Visual Lens
2
Thermal Lens
3
Flashlight
4
Strap Attachment Point
5
Tripod Mount
6
Charging Indicator
7
Type-C Interface
8
Microphone
9
GETTING STARTED
Function
View image and operate device with touch control.
View the visual image.
View the thermal image.
Provide additional light in low-light conditions or output flashing
alarm.
Mount the wrist strap.
Mount the tripod.
Indicate the charging status of the device.
Solid red: charging normally

Flashing red: charging exception

Solid green: fully charged

Charge the device or export files with the supplied USB cable.
Record audio.
