HIKMICRO E03 Kurzanleitung Seite 11

English

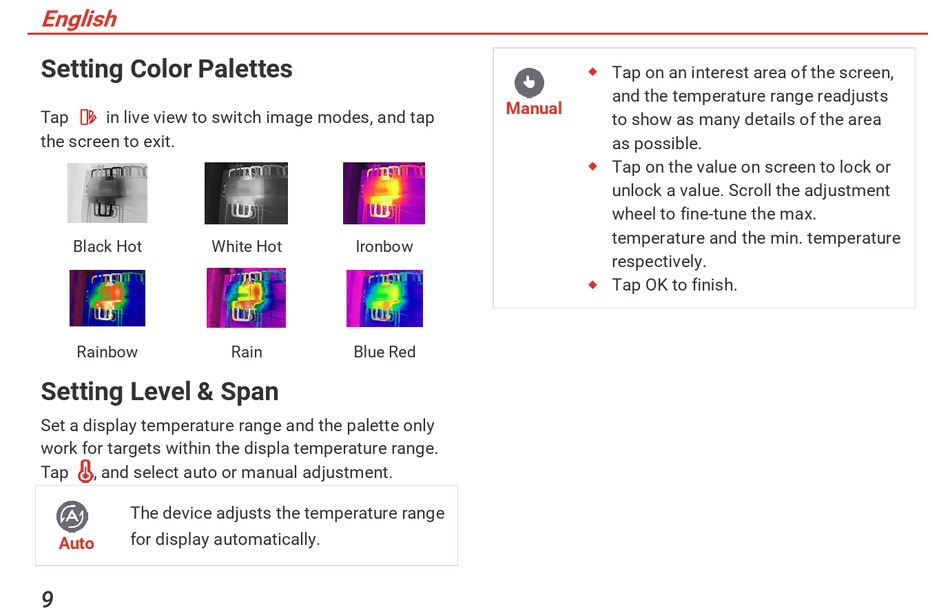

Setting Color Palettes
Tap in live view to switch image modes, and tap
the screen to exit.
Black Hot White Hot
Rainbow
Setting Level & Span
Set a display temperature range and the palette only
work for targets within the displa temperature range.
Tap , and select auto or manual adjustment.
The device adjusts the temperature range
for display automatically.
Auto
9
Ironbow
Rain Blue Red
Tap on an interest area of the screen,

and the temperature range readjusts
Manual
to show as many details of the area
as possible.
Tap on the value on screen to lock or

unlock a value. Scroll the adjustment
wheel to fine-tune the max.
temperature and the min. temperature
respectively.
Tap OK to finish.

