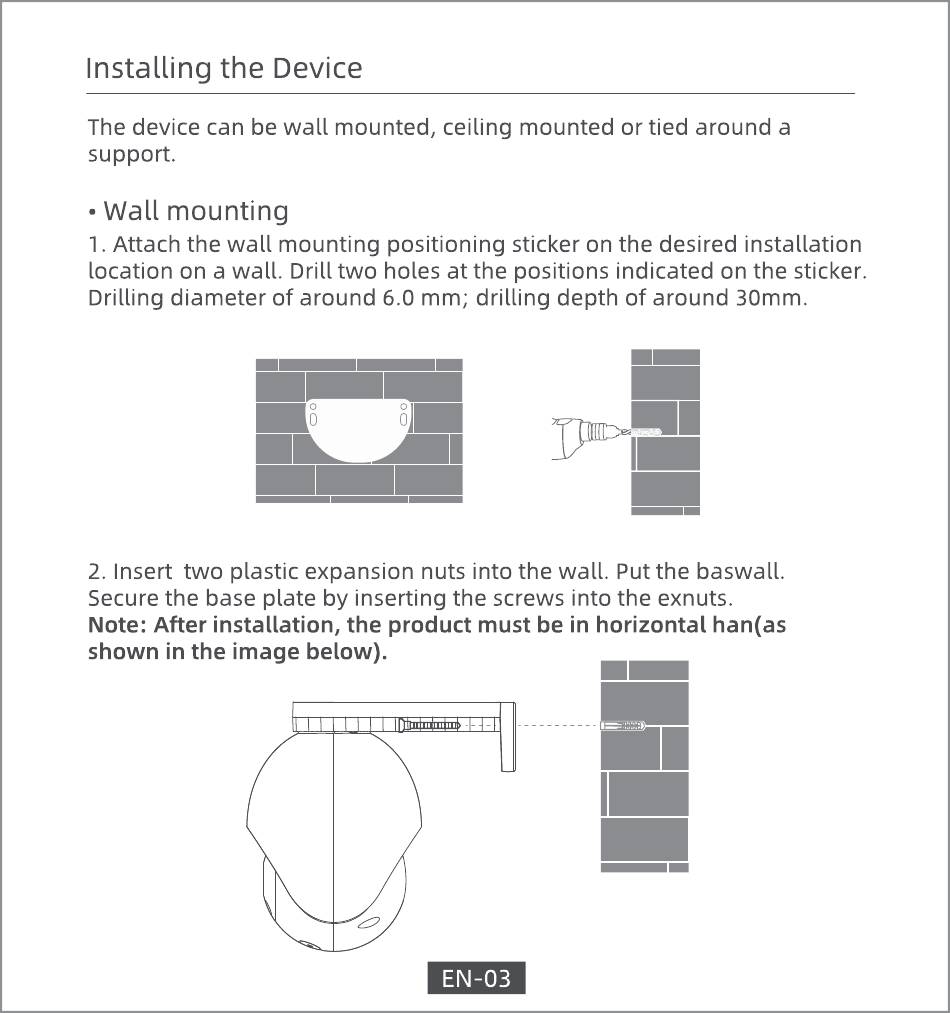

Installing the Device
The device can be wall mounted,
support.
• Wall mounting
1. Attach the wall mounting positioning
location on a wall. Drill two holes at the positions indicated on the sticker.
Drilling diameter of around 6.0 mm; drilling depth of around 30mm.
2. Insert two plastic expansion nuts into the wall. Put the baswall.
Secure the base plate by inserting the screws into the exnuts.
Note: After installation,
shown in the image below).
ceiling mounted or tied around a
sticker on the desired installation
the product must be in horizontal
EN-02
han(as
