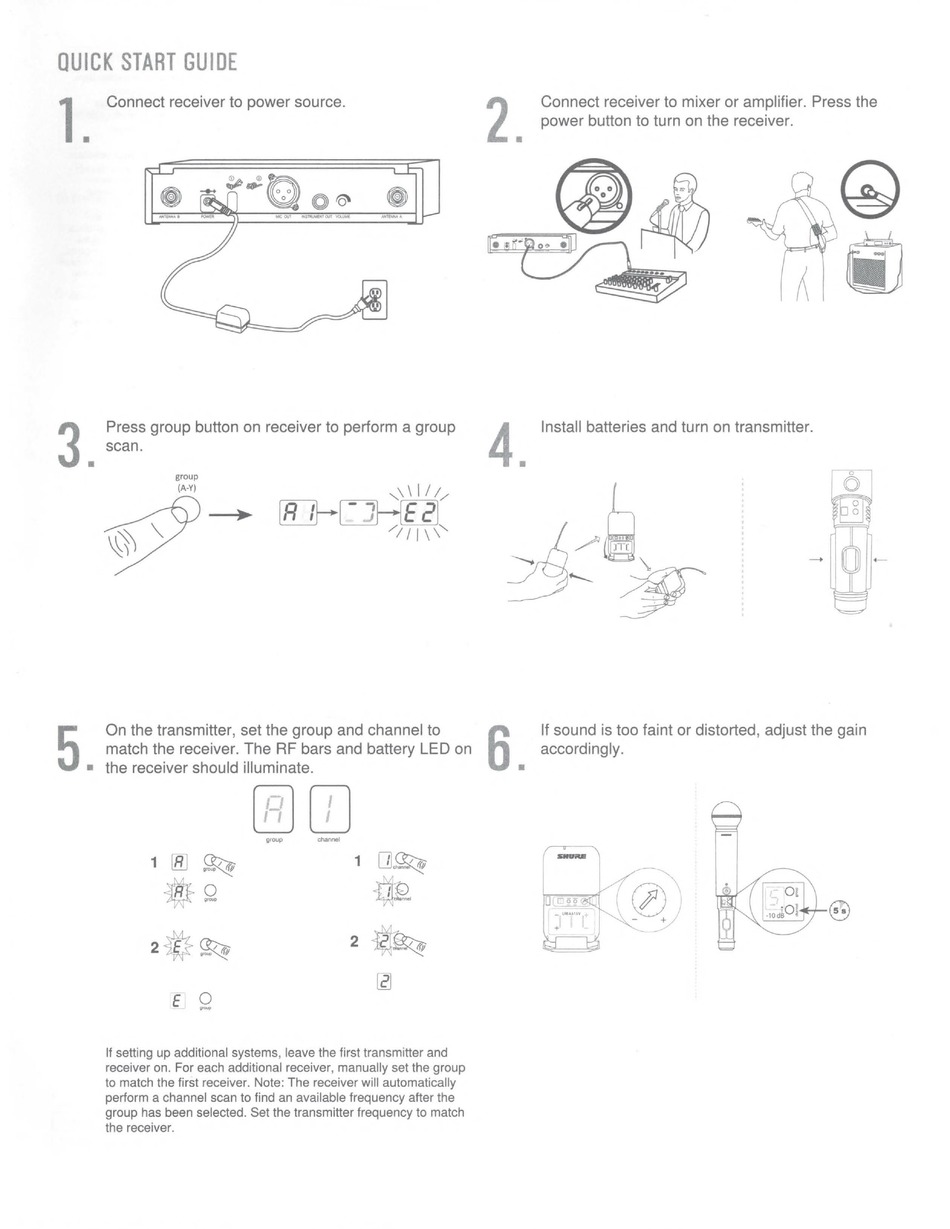

QUICK START GUIDE
1 .
3.
5.
Connect receiver to power source.
(I)
~~a
0 6'
Press group button on receiver to perform a group
scan.
group
(A-Y)
y9- ....__\\I/;,..,.
[[J}--1 - JI ·IE 21
/; I
I \ \'--
On the transmitter, set the group and channel to
match the receiver. The RF bars and battery LED on
the receiver should illuminate.
1
[BJ
~
*Q
2 ~~
E 0
ru7
Ill
~ ~
group channel
1
Q]~
~
2 ~
[2]
If setting up additional systems, leave the first transmitter and
receiver on. For each additional receiver, manually set the group
to match the first receiver. Note: The receiver will automatically
perform a channel scan to find an available frequency after the
group has been selected. Set the transmitter frequency to match
the receiver.
2.
4.
6.
Connect receiver to mixer or amplifier. Press the
power button to turn on the receiver.
~
A
~
~
Install batteries and turn on transmitter.
0
---+ 11 HI Ill I I +-
If sound is too faint or distorted, adjust the gain
accordingly.
_,,.,.
0 \
- +
@
