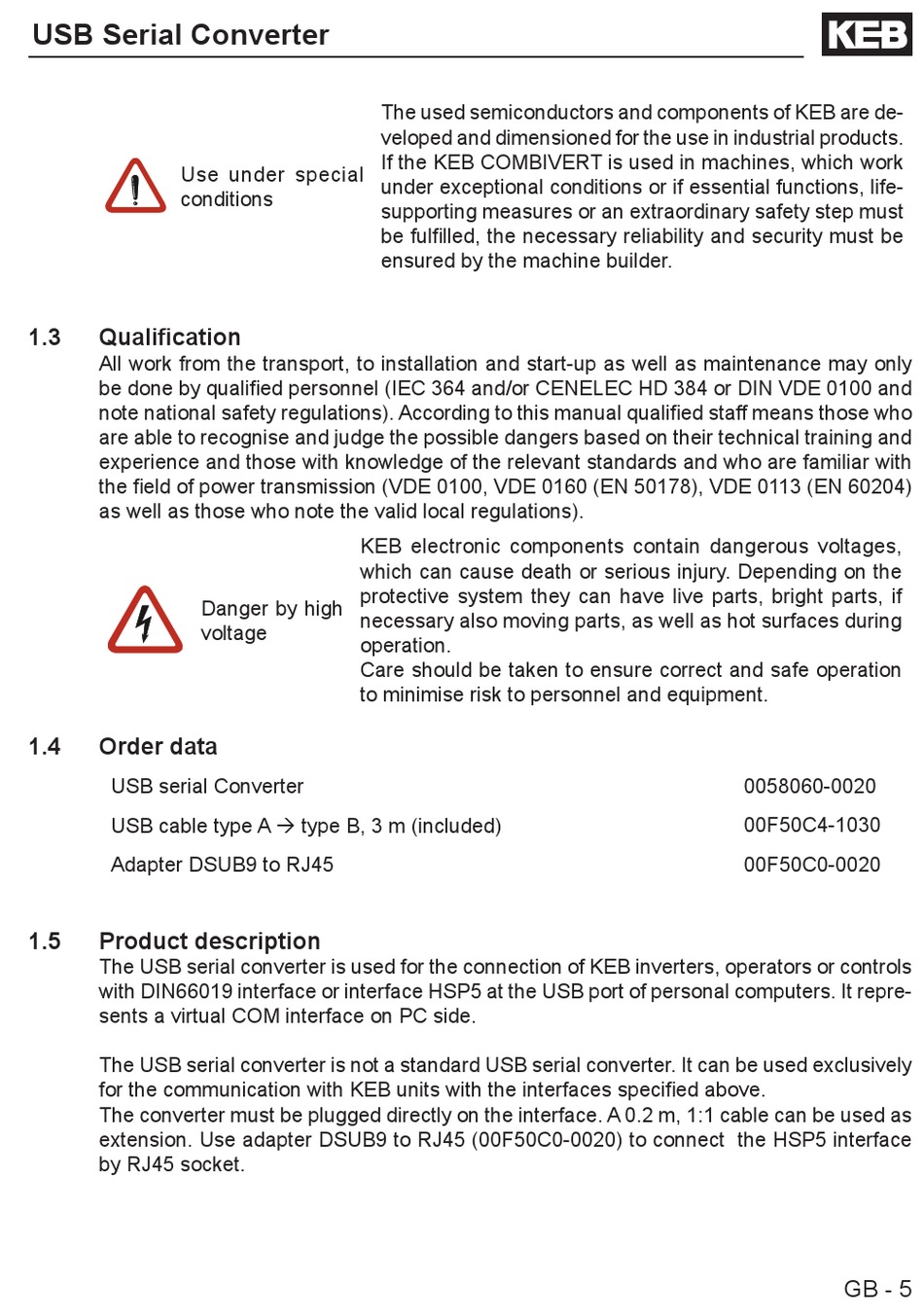

USB Serial Converter
Use under special
conditions
1.3 Qualification
All work from the transport, to installation and start-up as well as maintenance may only
be done by qualified personnel (IEC 364 and/or CENELEC HD 384 or DIN VDE 0100 and
note national safety regulations). According to this manual qualified staff means those who
are able to recognise and judge the possible dangers based on their technical training and
experience and those with knowledge of the relevant standards and who are familiar with
the field of power transmission (VDE 0100, VDE 0160 (EN 50178), VDE 0113 (EN 60204)
as well as those who note the valid local regulations).
Danger by high
voltage
1.4 Order data
USB serial Converter
USB cable type A  type B, 3 m (included)
Adapter DSUB9 to RJ45
1.5 Product description
The USB serial converter is used for the connection of KEB inverters, operators or controls
with DIN66019 interface or interface HSP5 at the USB port of personal computers. It repre-
sents a virtual COM interface on PC side.
The USB serial converter is not a standard USB serial converter. It can be used exclusively
for the communication with KEB units with the interfaces specified above.
The converter must be plugged directly on the interface. A 0.2 m, 1:1 cable can be used as
extension. Use adapter DSUB9 to RJ45 (00F50C0-0020) to connect the HSP5 interface
by RJ45 socket.
The used semiconductors and components of KEB are de-
veloped and dimensioned for the use in industrial products.
If the KEB COMBIVERT is used in machines, which work
under exceptional conditions or if essential functions, life-
supporting measures or an extraordinary safety step must
be fulfilled, the necessary reliability and security must be
ensured by the machine builder.
KEB electronic components contain dangerous voltages,
which can cause death or serious injury. Depending on the
protective system they can have live parts, bright parts, if
necessary also moving parts, as well as hot surfaces during
operation.
Care should be taken to ensure correct and safe operation
to minimise risk to personnel and equipment.
0058060-0020
00F50C4-1030
00F50C0-0020
GB - 5
