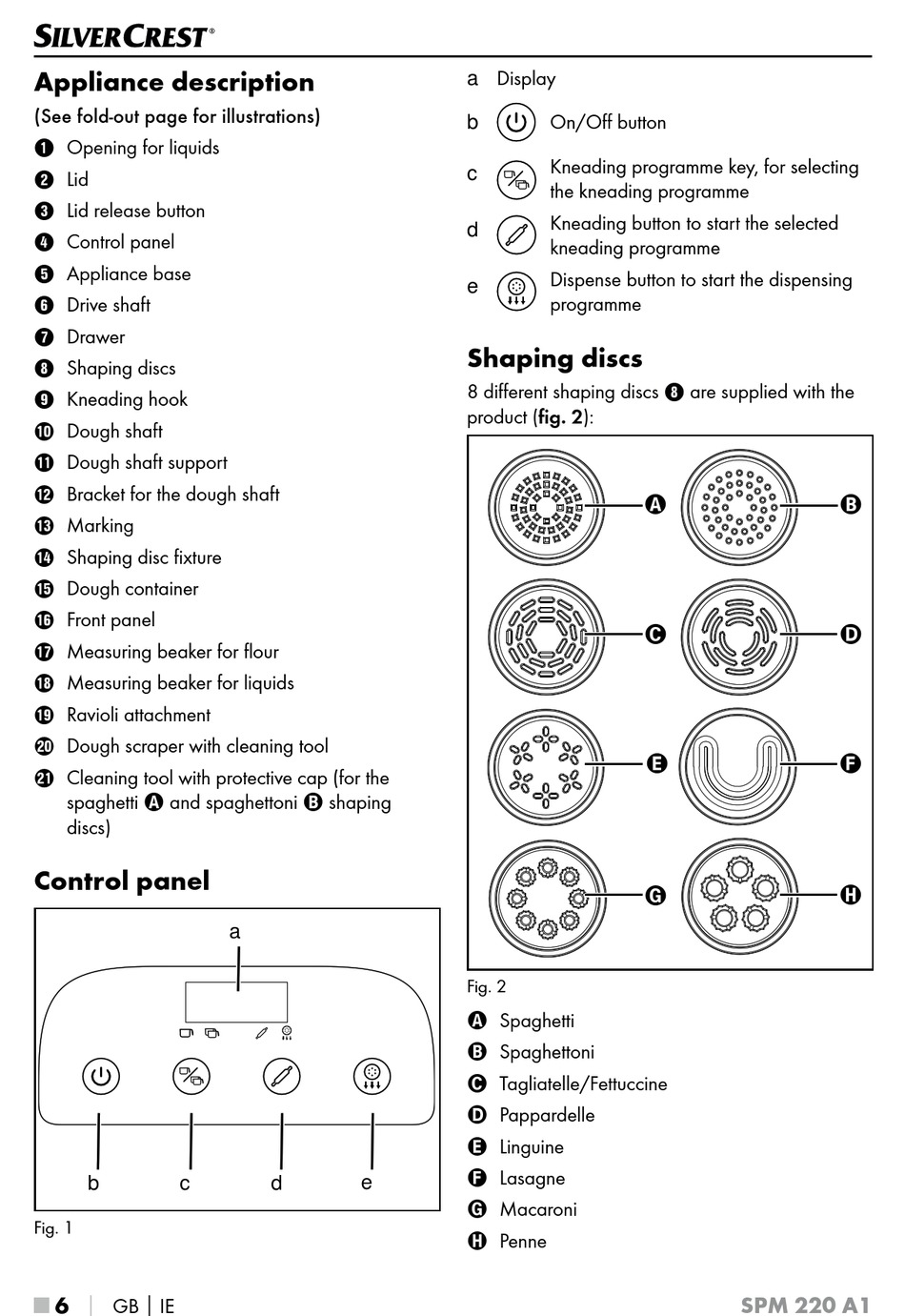

Appliance description
(See fold-out page for illustrations)
1 Opening for liquids
2 Lid
3 Lid release button
4 Control panel
5 Appliance base
6 Drive shaft
7 Drawer
8 Shaping discs
9 Kneading hook
0 Dough shaft
q Dough shaft support
w Bracket for the dough shaft
e Marking
r Shaping disc fixture
t Dough container
z Front panel
u Measuring beaker for flour
i Measuring beaker for liquids
o Ravioli attachment
p Dough scraper with cleaning tool
a Cleaning tool with protective cap (for the
spaghetti A and spaghettoni B shaping
discs)
Control panel
b c
Fig. 1
│ GB │ IE
■ 6
a
e
d
a Display
b
On/Off button
Kneading programme key, for selecting
c
the kneading programme
Kneading button to start the selected
d
kneading programme
Dispense button to start the dispensing
e
programme
Shaping discs
8 different shaping discs 8 are supplied with the
product (fig. 2):
Fig. 2
A Spaghetti
B Spaghettoni
C Tagliatelle/Fettuccine
D Pappardelle
E Linguine
F Lasagne
G Macaroni
H Penne
A
C
E
G
SPM 220 A1
B
D
F
H
