1. SAFETY SUMMARY
DANGER:
DO NOT pour water into the remote controller
-
(hereafter called "controller"). These products are
equipped with electrical parts. If poured, it will cause a
serious electrical shock.
DO NOT operate switches by wet hand. It may cause
-
an electrical shock.
In case that the protective devices often function or
-
the operation switches do not function well, turn OFF
the main power supply and contact your service
contractor of HITACHI.
In case that other abnormalities are found, stop the
-
system, turn OFF the main power supply and contact
your service contractor of HITACHI.
2. INSTALLATION WORK
2.1. SELECTION OF INSTALLATION PLACE
Location of Remote Controller
Select a suitable place for handling and determine the
installation place of the controller with the customer's
acceptance.
Especially in case that a remote control thermistor (C8)
is used, pay attention to select the installation place.
2.2. BEFORE INSTALLATION
Check the contents and the number of the
accessories in the packing.
2 screws
Remote Control
M4x16L For
Switch, for Operation
fixing the
Control
Holding Bracket
onto the wall
2.4. INSTALLATION PROCEDURE
1. Insert the edge of the flat head screwdriver into the dent parts at the bottom of the holding bracket, push and turn the
screwdriver and remove the controller from the holding bracket as shown in the next figure.
Dent
Part
2. Attach the controller to the holding bracket as follows.

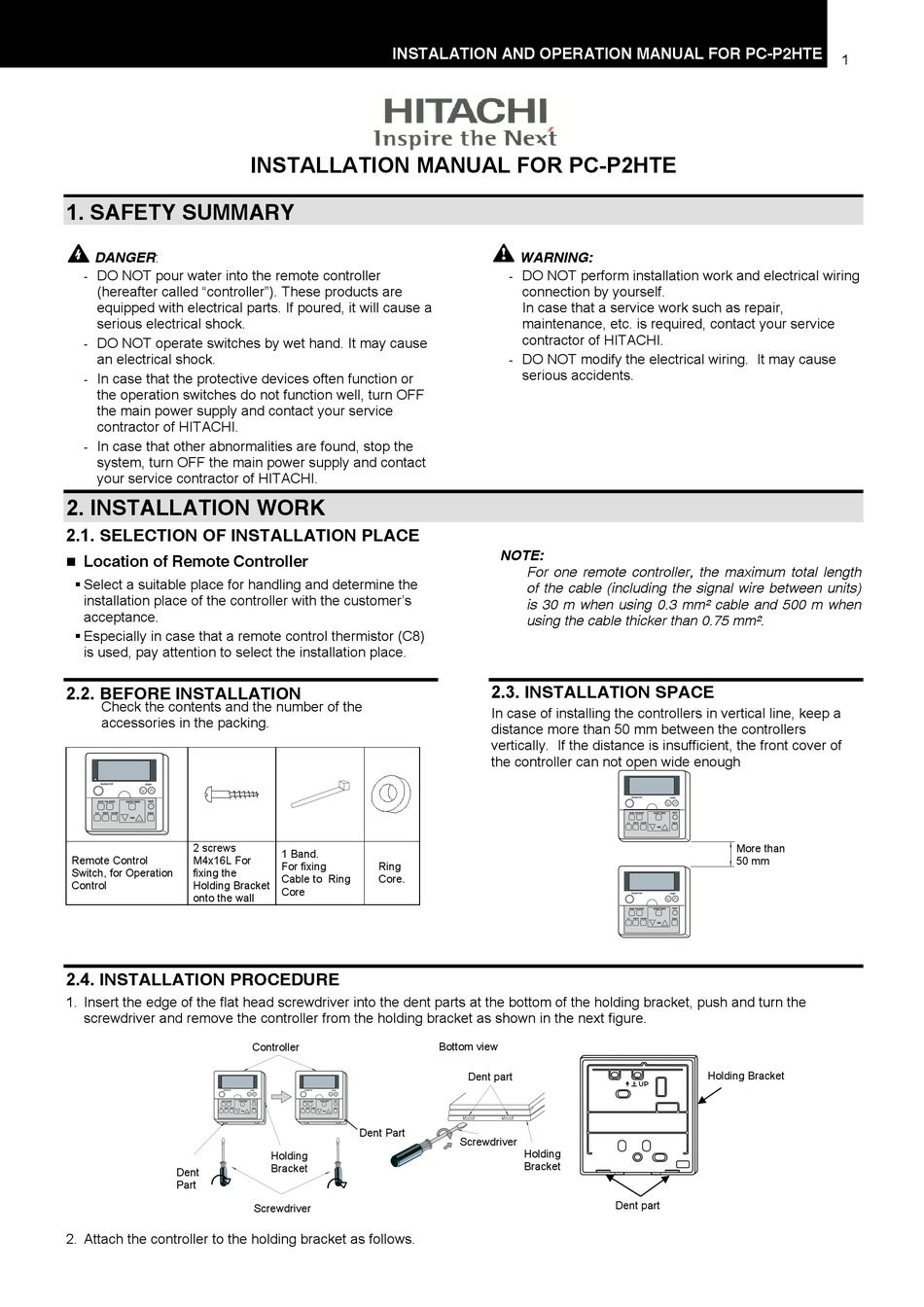

INSTALATION AND OPERATION MANUAL FOR PC-P2HTE
INSTALLATION MANUAL FOR PC-P2HTE
1 Band.
For fixing
Ring
Cable to Ring
Core.
Core
Controller
Dent Part
Holding
Bracket
Screwdriver
WARNING:
DO NOT perform installation work and electrical wiring
-
connection by yourself.
In case that a service work such as repair,
maintenance, etc. is required, contact your service
contractor of HITACHI.
DO NOT modify the electrical wiring. It may cause
-
serious accidents.
NOTE:
For one remote controller, the maximum total length
of the cable (including the signal wire between units)
is 30 m when using 0.3 mm² cable and 500 m when
using the cable thicker than 0.75 mm².
2.3. INSTALLATION SPACE
In case of installing the controllers in vertical line, keep a
distance more than 50 mm between the controllers
vertically. If the distance is insufficient, the front cover of
the controller can not open wide enough
Bottom view
Dent part
Screwdriver
Holding
Bracket
More than
50 mm
Holding Bracket
Dent part
1
Inhaltsverzeichnis
loading

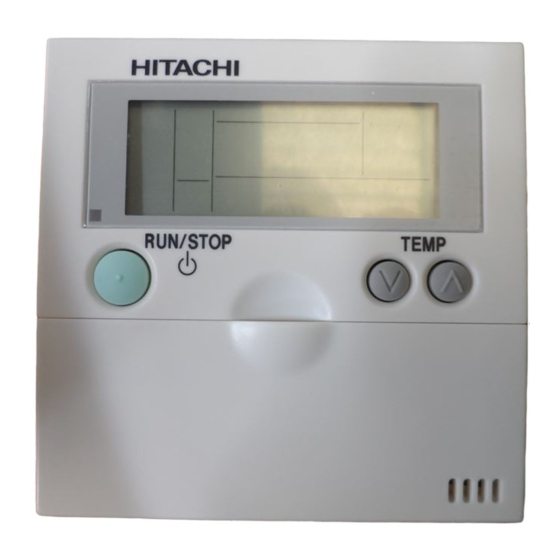

Inhaltszusammenfassung für Hitachi PC-P2HTE

  • Seite 17 INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE INSTALLATIONSHANDBUCH FÜR PC-P2HTE 1. SICHERHEITSÜBERSICHT   GEFAHR: WARNUNG: Lassen Sie die Fernbedienung AUF KEINEN FALL mit Führen Sie Installationsarbeiten und Verkabelung NICHT Wasser in Berührung kommen. Diese Produkte enthalten selbstständig aus. elektrische Komponenten. Das Eindringen von Wasser Sollten Servicearbeiten erforderlich sein, wie z.
  • Seite 18: Verkabelung

    INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE Bei freiliegendem Fernbedienungskabel 2. Bringen Sie den Stopper am Kabel auf der Innenseite der Befestigen Sie die Halterung der folgenden Abbildung Bohrung für die Kabeldurchführung an. entsprechend an der Wand. Kabelbinder (nicht Kabel mitgeliefert) Halterung so befestigen, das „↑UP“...
  • Seite 19: Optionale Einstellungen Und Einstellungen Für Eingang/Ausgang Am Innengerät

    INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE Adressen der Innengeräte:  Hauptgerät 1. Gerät 2. Gerät 3. Gerät VORSICHT: Verwenden Sie das verdrillte (abgeschirmte) Kabel (2 x 0,75 mm²) als Übertragungsleitung, um Fehlfunktionen zu vermeiden (die maximal zulässige Kabellänge beträgt 500m). 4. Gerät 5.
  • Seite 20: Auswählen Des Innengeräts

    INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE 5.2. AUSWÄHLEN DES INNENGERÄTS  Auswahl des Innengeräts für optionale Einstellungen „01“ hört auf zu blinken. Wählen Sie durch Drücken von „“ bzw. „“ das einzustellende Innengerät aus, HIGH   und drücken Sie die Taste OK.
  • Seite 21 INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE Optionale Einstellungen (Fortsetzung) Individuelle Gegenstand Einstellung (B) Einstellungszustand Code möglich 00: Nicht verfügbar Fernbedienungsthermostat 01, 02: *3) Nicht vorhanden Nicht verwendet Nicht vorhanden Nicht verwendet Auswahl der Logik für manuellen 00: A Kontakt Stopp 01: B Kontakt Nicht vorhanden 00: Nicht verfügbar...
  • Seite 22: Timer-Betrieb

    INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE 5.3.2. EINGANG/AUSGANG-NUMMER Einstellmodus für Eingang/Ausgang (Modus-Nr. „02“)  Eingang/Ausgang-Nummer Auswahl der Eingang/Ausgang-Nummer HIGH   COOL Wählen Sie die Eingang/Ausgang-Nummer SERVi C E aus, indem Sie die Taste „SELECT“ bzw.  drücken.  HIGH ...
  • Seite 23: Einstellung Des Timers (Programmierung)

    INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE 6.2. EINSTELLUNG DES TIMERS (PROGRAMMIERUNG) 1. Drücken Sie die Taste 5. Drücken Sie die Taste TIMER. SET und SELECT △▽, um die SCHEDULE werden „minutes“ (Minuten) angezeigt. Die einzustellen und drücken Sie Zeitplannummer „1“ blinkt anschließend auf .
  • Seite 24: Einstellung Der Temperaturumschaltung (Energiesparfunktion)

    INSTALLATIONS- UND BETRIEBSHANDBUCH FÜR PC-P2HTE 6.5. EINSTELLUNG DER TEMPERATURUMSCHALTUNG (ENERGIESPARFUNKTION) Eine Erhöhung oder Senkung der Einstelltemperatur (±3 ºC or ±5 ºC) entsprechend der Temperaturumschaltung in ON-Zeit oder OFF-Zeit hängt ganz vom Betriebsmodus ab. Bei Lüfter-, Kühl- und Trockenbetrieb erfolgt eine + Umschaltung. Bei Heizbetrieb erfolgt eine - Umschaltung.
