The later operation must be carried out exclusively by authorized personnel trained on how to
use the display case.

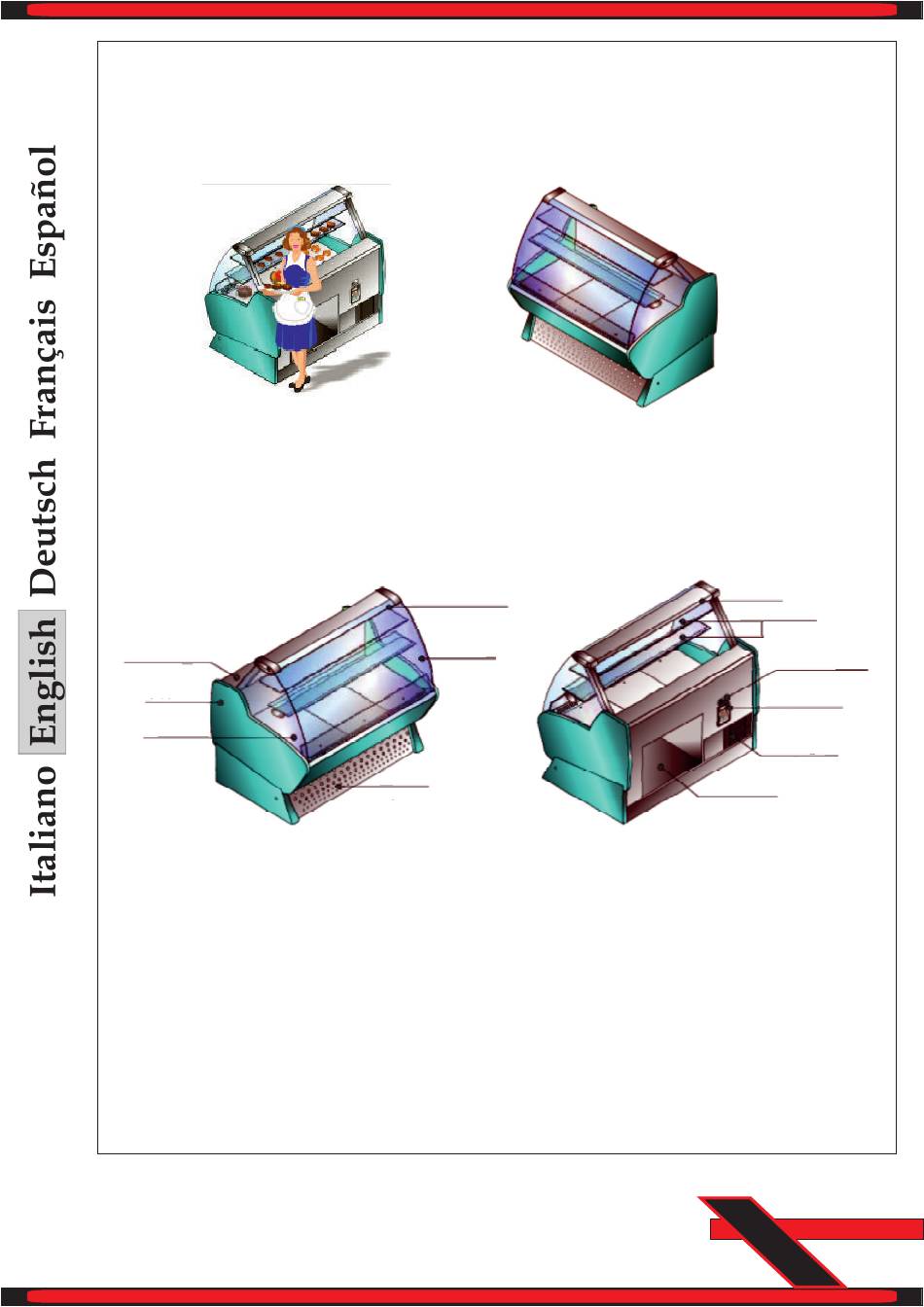

---When this manual discusses switches and other components, it indicates if they are to the
right or left of the display case.
---In most situations, the terms left and right refer to the position of the operator standing in
front of the work surface and facing forward (Figures 6 and 7), unless otherwise specified.
---Never allow anyone to use the display cause without proper instruction. In many countries, it
is legally mandatory for all operators to receive due instruction on the exact use and operating
procedures of the display case and on safetymethods prior to use.
---Carefully read the instructions manual before using the display case.
---Failure to observe use regulations can cause accidents.
---Make sure that each piece of equipment or accessory is installed correctly and that they are
also approved for use on this display case.
Work
Counter
Side
Panel
Side
Glass
GENERAL INFORMATION
This chapter offers a technical description of the display case and its operation. It supplies all
the information deemed useful for the operator and maintenance personnel so they can gain a
better understanding of correct operation to enable more rapid identification of any faults or
malfunctions (fig.8).
DISPLAY SECTION
The case is the area used to display the products.
It can be divided into two sections:
- the lower part (base shelf)
- the upper part (shelves)
The interior of the base shelf is made of stainless steel panels, which guarantee complete
hygiene and excellent stability at the same time.The shelves consist of a metallic structure that
house the lighting fixture and a glass top for resting product trays.
RIGHT SIDE
FIG.7
CUSTOMER SIDE
Lighting
Front
glass
Front
grate
FIG.8
OPERATOR SIDE
FIG.6
LEFT SIDE
Curtain
Glass shelves
Nameplate
Control Panel
Back grate
Open
compartment
