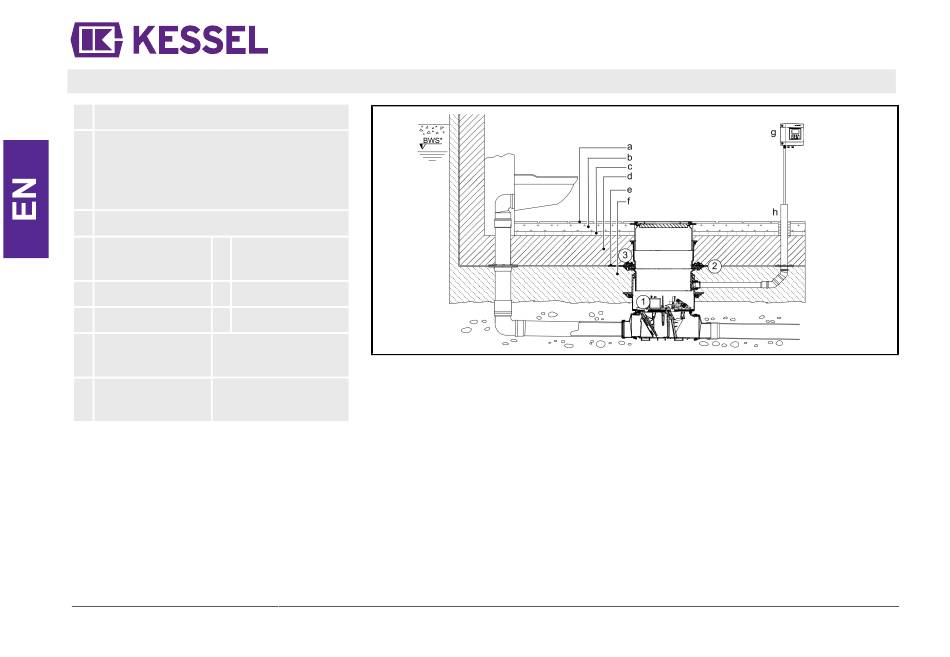

4.1.3 Installation example bituminous membrane (floor slab with separating layer)
1 Staufix FKA
2 Seal set art. no. 83073: extension
section with flange and counter-
flange (for connection to an on-site
sealing sheet)
3 Extension section art. no. 83070
a Floor covering f Protective con-
crete
b Screed g Control unit
c Insulation h Cable conduit
d Concrete floor BWS* Rated water
level
e Waterproofing
layer
