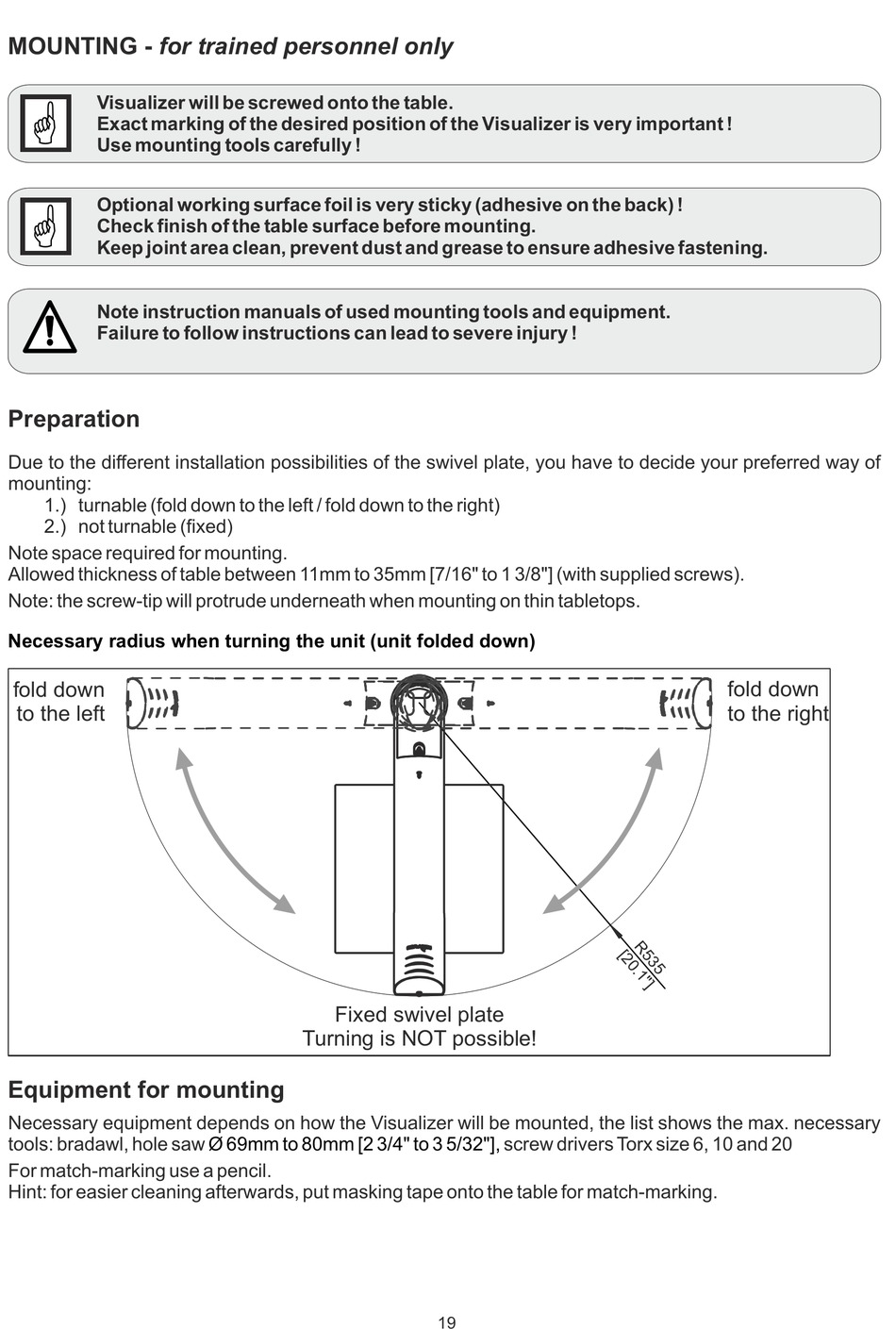

MOUNTING - for trained personnel only
Visualizer will be screwed onto the table.
G
Exact marking of the desired position of the Visualizer is very important !
Use mounting tools carefully !
Optional working surface foil is very sticky (adhesive on the back) !
G
Check finish of the table surface before mounting.
Keep joint area clean, prevent dust and grease to ensure adhesive fastening.
Note instruction manuals of used mounting tools and equipment.
Failure to follow instructions can lead to severe injury !
Preparation
Due to the different installation possibilities of the swivel plate, you have to decide your preferred way of
mounting:
1.) turnable (fold down to the left / fold down to the right)
2.) not turnable (fixed)
Note space required for mounting.
Allowed thickness of table between 11mm to 35mm [7/16" to 1 3/8"] (with supplied screws).
Note: the screw-tip will protrude underneath when mounting on thin tabletops.
Necessary radius when turning the unit (unit folded down)
fold down
to the left
Equipment for mounting
Necessary equipment depends on how the Visualizer will be mounted, the list shows the max. necessary
tools: bradawl, hole saw
For match-marking use a pencil.
Hint: for easier cleaning afterwards, put masking tape onto the table for match-marking.
Fixed swivel plate
Turning is NOT possible!
Ø 69mm to 80mm [2 3/4" to 3 5/32"], screw drivers Torx size 6, 10 and 20
19
fold down
to the right
