WolfVision VZ-8neo and Swivel Option Bedienungsanleitung Seite 17

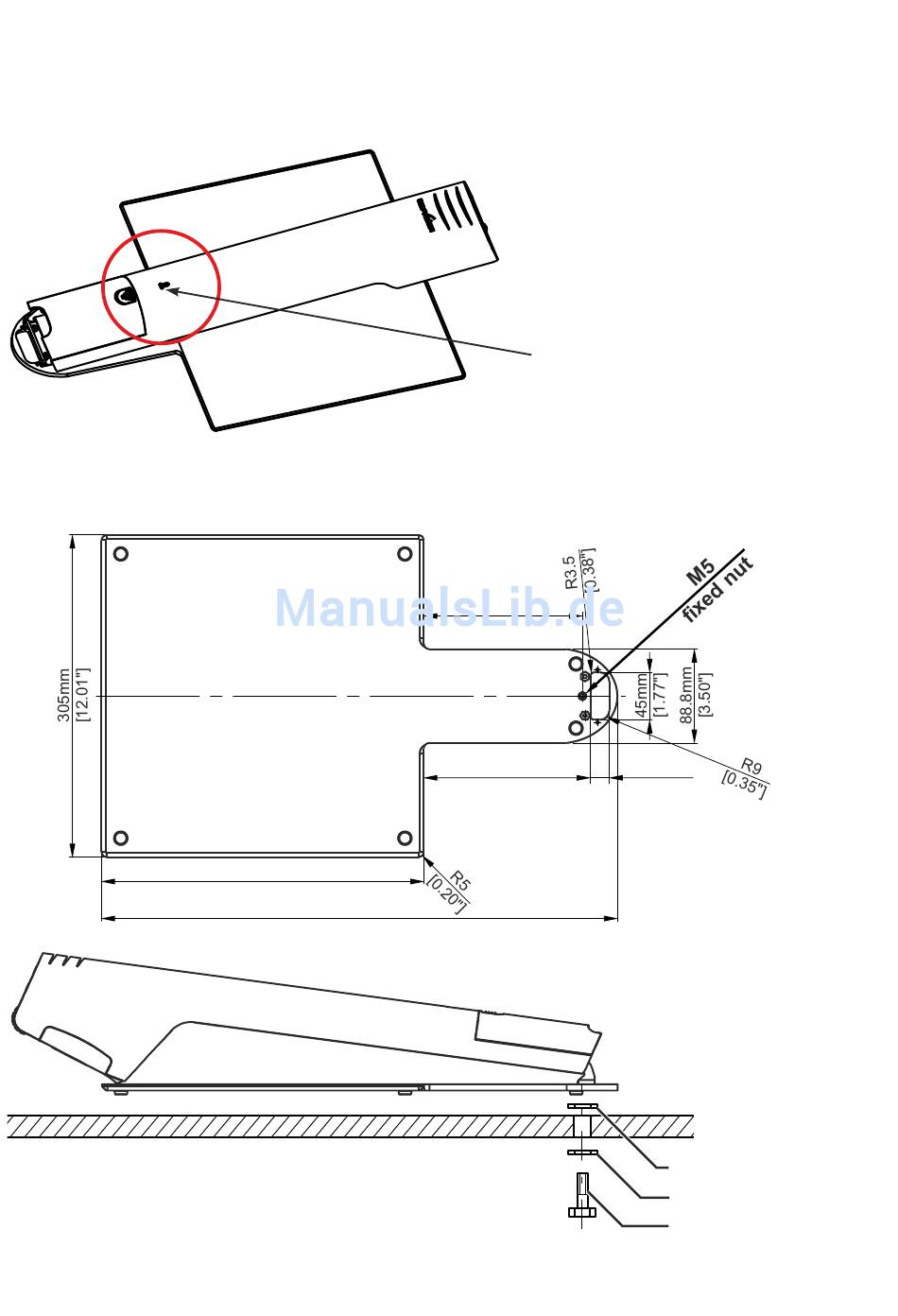

Anti-theft
T-bar lock (Kensington Lock)
The Visualizer can be fixed with a
instructions from the cable lock manual.
Fixing the Visualizer onto the table
The Visualizer can also be fixed onto table top by using an M5 screw bolt.
Please note that the usable depth of thread is 6mm, do not
screw in more than this.
®
security cable T-bar lock
base plate underneath
305mm
[12.01"]
488.1mm
[19.21"]
, so that it can not be stolen. Follow the
slot for lock
150mm
[22.48"]
157.5mm
[6.20"]
table top
(cutaway view )
Technical Specifications are Subject to Change!
16
18mm
[0.71"]
washer M5 (3mm thick)
washer M5
screw M5
