WolfVision VZ-8neo Erste Schritte

Quick Setup Guide - First Steps
Before Starting
When using the Swivel option, mount the Visualizer onto table top according mounting instructions first.

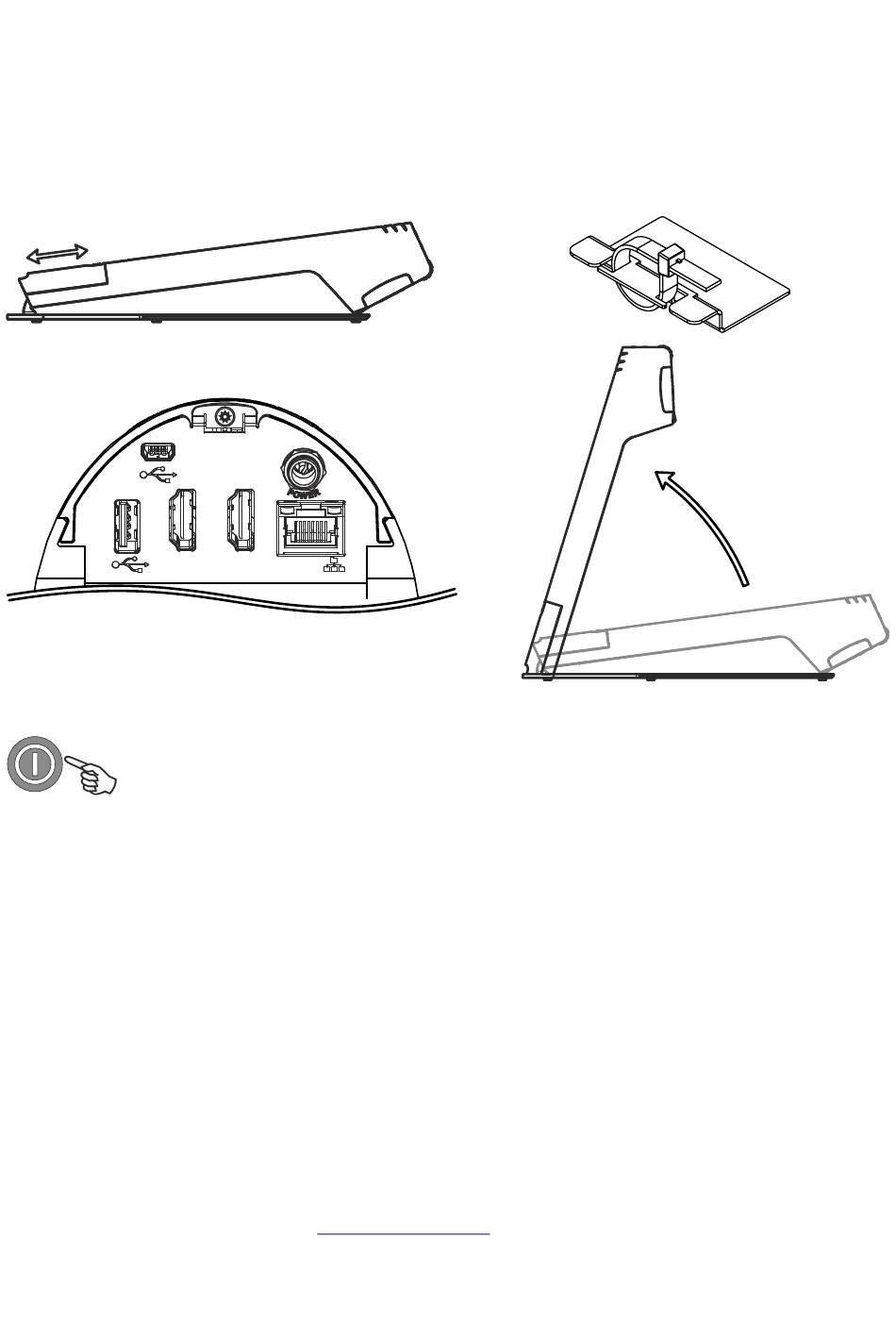

Fold the arm down and remove the cable cover.
Establish all needed cable connections and fix the cables by fastening the cable tie (supplied cable tie can
be unfastened by using the lug).
Move the arm up and the Visualizer will start automatically.
OUT
Power Key
The Visualizer will be switched on and off by folding the arm up and down.
Additionally, the Visualizer can be switched on and off by pressing the POWER key on the
camera head quickly.
Basic Menu Settings
When the Visualizer is switched on the first time, the Quick Setup Guide will be started automatically on-
screen (visible on HDMI output). Use the arrow keys and the OK key to navigate through the menu.
Language
Select the desired language for the on-screen menu.
Ethernet Settings
The IP-address, Subnet Mask and Gateway IP-address can be set automatically by a DHCP-server or
manually.
Time Settings
The Visualizer offers the possibility to use the internal clock or an external time server (provided a time
server IP address and Internet connection).
Audio Settings
Set up audio configuration.
Further information will be found on
Printed in Austria - April 2016
HDMI
IN PoE+
www.wolfvision.com and on the supplied CD-ROM.
