Exsys EX-1596HMVS Anleitung Seite 12

English
3. Layout, Connections & Jumpers
3.2 Connections
USB 2.0 B-Buchse:
3.3 Jumper Settings

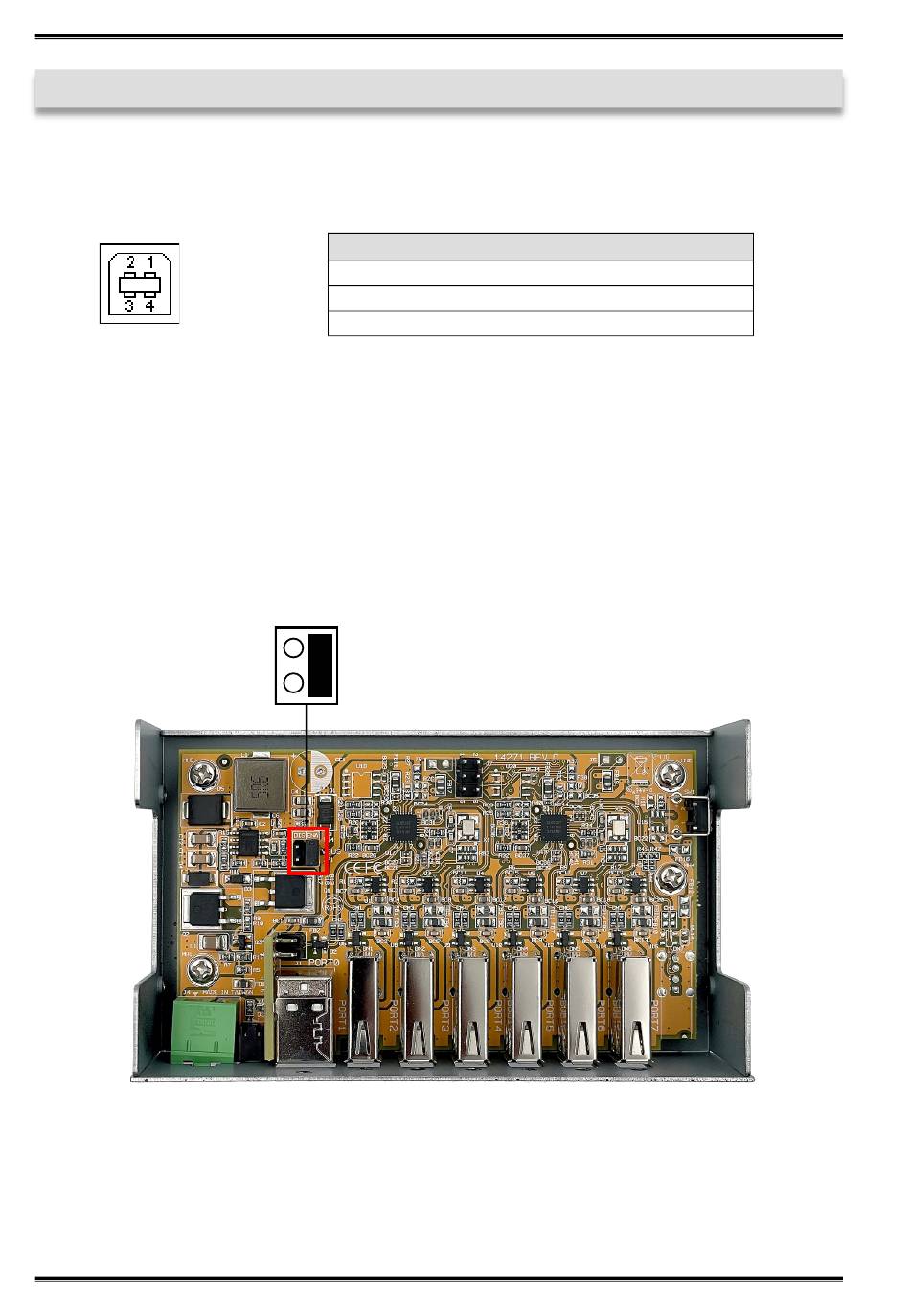

The EX-1596HMVS is supplied in Bus-Power mode, i.e. it can be used both with and without a
power supply unit. With jumper JP1 (BUS PWR) it is possible to disable power on the USB B
socket so that it can only operate with a power supply connected. To do this, open the case by
removing the four screws on the sides. Jumper JP1 can now be set from ENA (Enable) to DIS
(Disable). See the figure below:
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
USB 2.0 B-Buchse
Pin
1
2
DIS ENA
JP1
Signal Pin
VCC 3
DATA- 4
12
EX-1596HMVS
Signal
DATA+
GND
