EX-1596HMVS

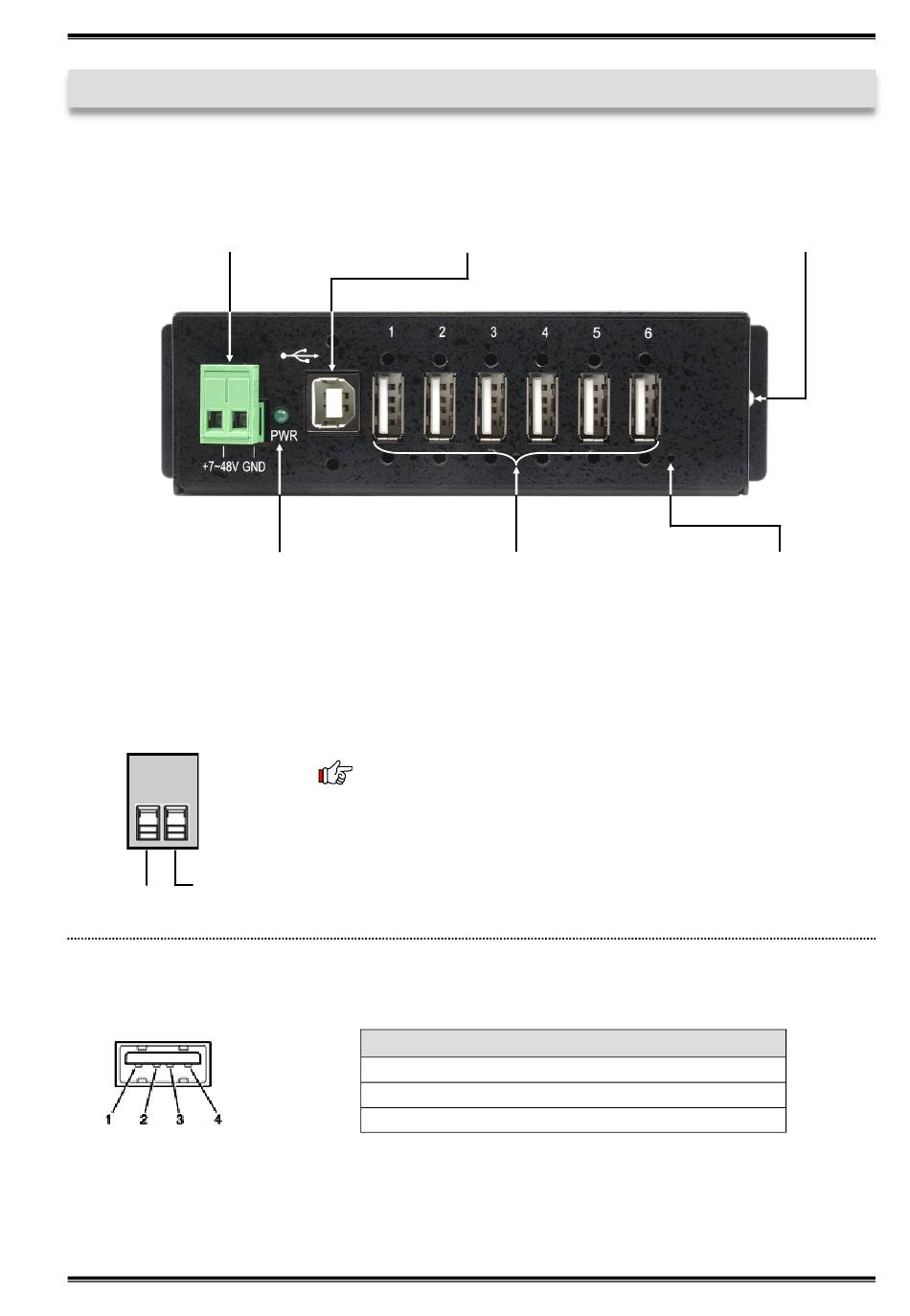

3. Layout, Connections & Jumpers
3.1 Layout
7-48V T-Block for optional
external Power Supply
Power LED
3.2 Connections
+7V - 48V T-Block:
GND (Ground)
+7V - 48V
USB 2.0 A-Port:
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
1x USB 2.0
Upstream B-Port
6x USB 2.0
Downstream A-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
USB 2.0 A-Port
Pin
Signal
1
VCC
2
DATA-
11
Reset Button
Status LED for
each Port
Pin
Signal
3
DATA+
4
GND
