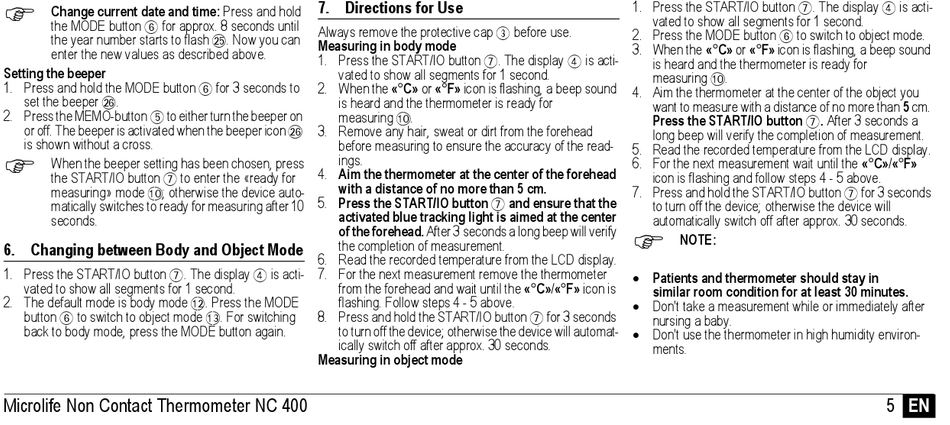

Microlife NC 400 Bedienungsanleitung Seite 5


Change current date and time: Press and hold
the MODE button 6 for approx. 8 seconds until
the year number starts to flash BO. Now you can
enter the new values as described above.
Setting the beeper
1. Press and hold the MODE button 6 for 3 seconds to
set the beeper BP.
2. Press the MEMO-button 5 to either turn the beeper on
or off. The beeper is activated when the beeper icon BP
is shown without a cross.

When the beeper setting has been chosen, press
the START/IO button 7 to enter the «ready for
measuring» mode AT; otherwise the device auto-
matically switches to ready for measuring after 10
seconds.
6. Changing between Body and Object Mode
1. Press the START/IO button 7. The display 4 is acti-
vated to show all segments for 1 second.
2. The default mode is body mode AL. Press the MODE
button 6 to switch to object mode AM. For switching
back to body mode, press the MODE button again.
Microlife Non Contact Thermometer NC 400
7. Directions for Use
Always remove the protective cap 3 before use.
Measuring in body mode
1. Press the START/IO button 7. The display 4 is acti-
vated to show all segments for 1 second.
2. When the «°C» or «°F» icon is flashing, a beep sound
is heard and the thermometer is ready for
measuring AT.
3. Remove any hair, sweat or dirt from the forehead
before measuring to ensure the accuracy of the read-
ings.
4. Aim the thermometer at the center of the forehead
with a distance of no more than 5 cm.
5. Press the START/IO button 7 and ensure that the
activated blue tracking light is aimed at the center
of the forehead. After 3 seconds a long beep will verify
the completion of measurement.
6. Read the recorded temperature from the LCD display.
7. For the next measurement remove the thermometer
from the forehead and wait until the «°C»/«°F» icon is
flashing. Follow steps 4 - 5 above.
8. Press and hold the START/IO button 7 for 3 seconds
to turn off the device; otherwise the device will automat-
ically switch off after approx. 30 seconds.
Measuring in object mode
1. Press the START/IO button 7. The display 4 is acti-
vated to show all segments for 1 second.
2. Press the MODE button 6 to switch to object mode.
3. When the «°C» or «°F» icon is flashing, a beep sound
is heard and the thermometer is ready for
measuring AT.
4. Aim the thermometer at the center of the object you
want to measure with a distance of no more than 5 cm.
Press the START/IO button 7. After 3 seconds a
long beep will verify the completion of measurement.
5. Read the recorded temperature from the LCD display.
6. For the next measurement wait until the «°C»/«°F»
icon is flashing and follow steps 4 - 5 above.
7. Press and hold the START/IO button 7 for 3 seconds
to turn off the device; otherwise the device will
automatically switch off after approx. 30 seconds.

NOTE:
 Patients and thermometer should stay in
similar room condition for at least 30 minutes.
 Don't take a measurement while or immediately after
nursing a baby.
 Don't use the thermometer in high humidity environ-
ments.
5 EN
