Siko MA501 Zusatz Zur Originalmontageanleitung Seite 25

MA501-SW02

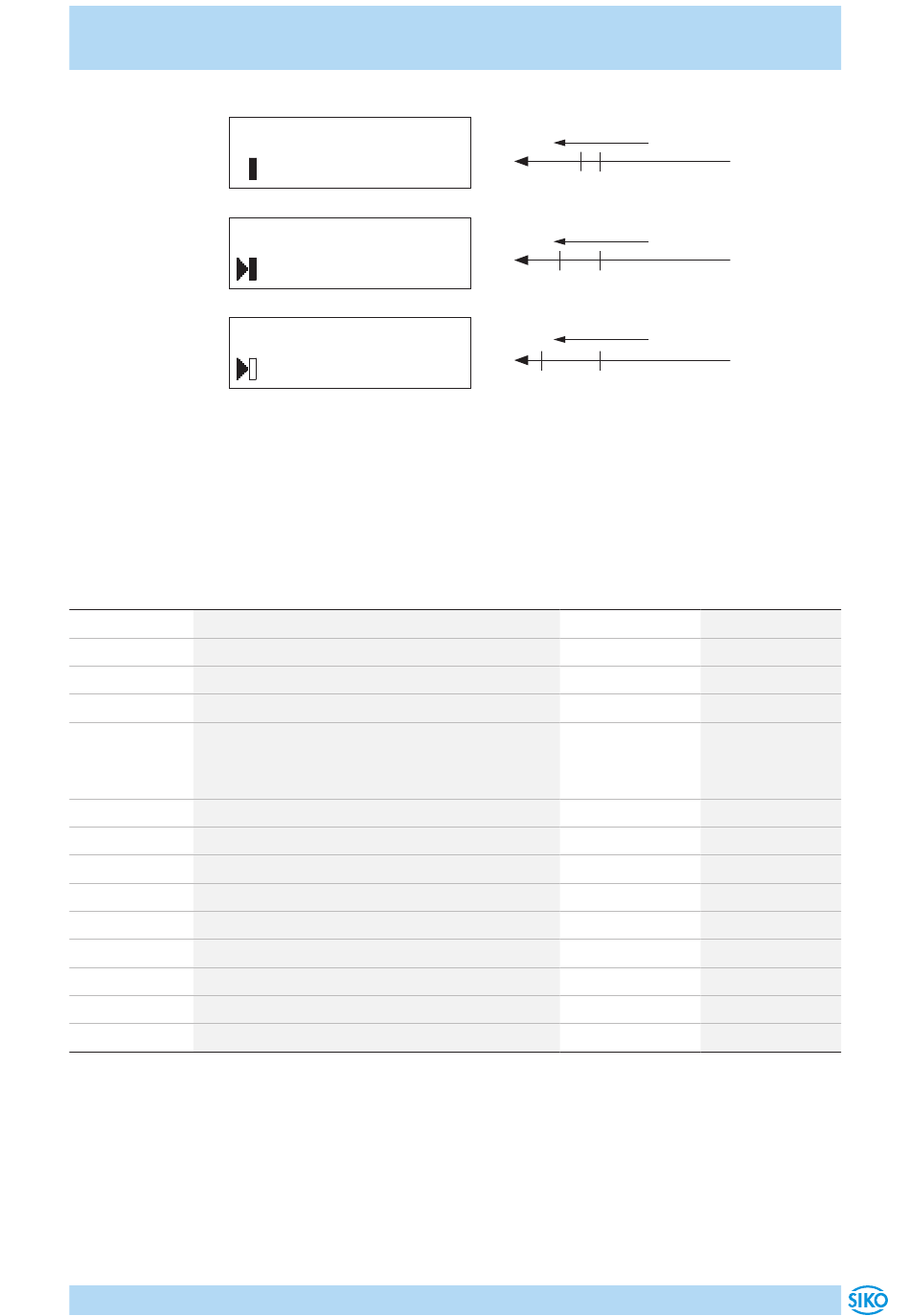

Appendix: Parameter list
11 Appendix: Parameter list
Display Designation / value range
ADDRESS Unit addresse: 00 ... 31
VIEW Contrast adjustment
ABS ON Star key for referencing: ON, OFF
FACTOR Factor input: 000.0001 ... 999.9999
RESOLUTION Resolution: 0.01 MM; 0.05 MM; 0.1 MM;
0.5 MM; 1 MM; 0.001 IN; 0.005 IN; 0.01 IN;
0.01 DEG; 0.05 DEG; 0.1 DEG
REF Reference value: -99999.99 .. +99999.99
OFFS Offset value: -99999.99 .. +99999.99
DIR Counting direction: UP, DOWN
FUNCTION Type of measurement: LINEAR, ROTATIVE
INPOSITION Control range: 0.01 ... 99.99
RANGE Target proximity: 0.01 ... 99.99
LOOP Loop travel: 0.01 ... 99.99
SCOPE Loop travel orientation sign: ON, OFF
BATTERY Battery monitoring: ON, OFF
MA501-SW02 · Date 31.03.2017 · Art. No. 84935 · Mod. status 263/16
Sensor movement
20.0
20.2
20.2
Sensor movement
20.0
20.6
20.6
Sensor movement
20.0
20.9
20.9
Standard
programming
00
ON
001.0000
0.1 MM
00000.00
00000.00
DOWN
LINEAR
00.20
00.30
+01.00
ON
ON
X
20.0
X
20.0
X
20.0
your
programming
English 25
