Siko MA501 Zusatz Zur Originalmontageanleitung Seite 19

MA501-SW02
Parameter description
Display
"choice"
FUNCTION
INPOSITION Defines the the control range (= range of how long the
RANGE
LOOP
SCOPE
BATTERY
MA501-SW02 · Date 31.03.2017 · Art. No. 84935 · Mod. status 263/16
Designation / description
Selection of measurement type: linear or rotative.
LINEAR: with this setting, travel to the target value is
enabled from both sides; i.e., if the RANGE value was
exceeded, traveling to the opposite direction is immedi-
ately possible.

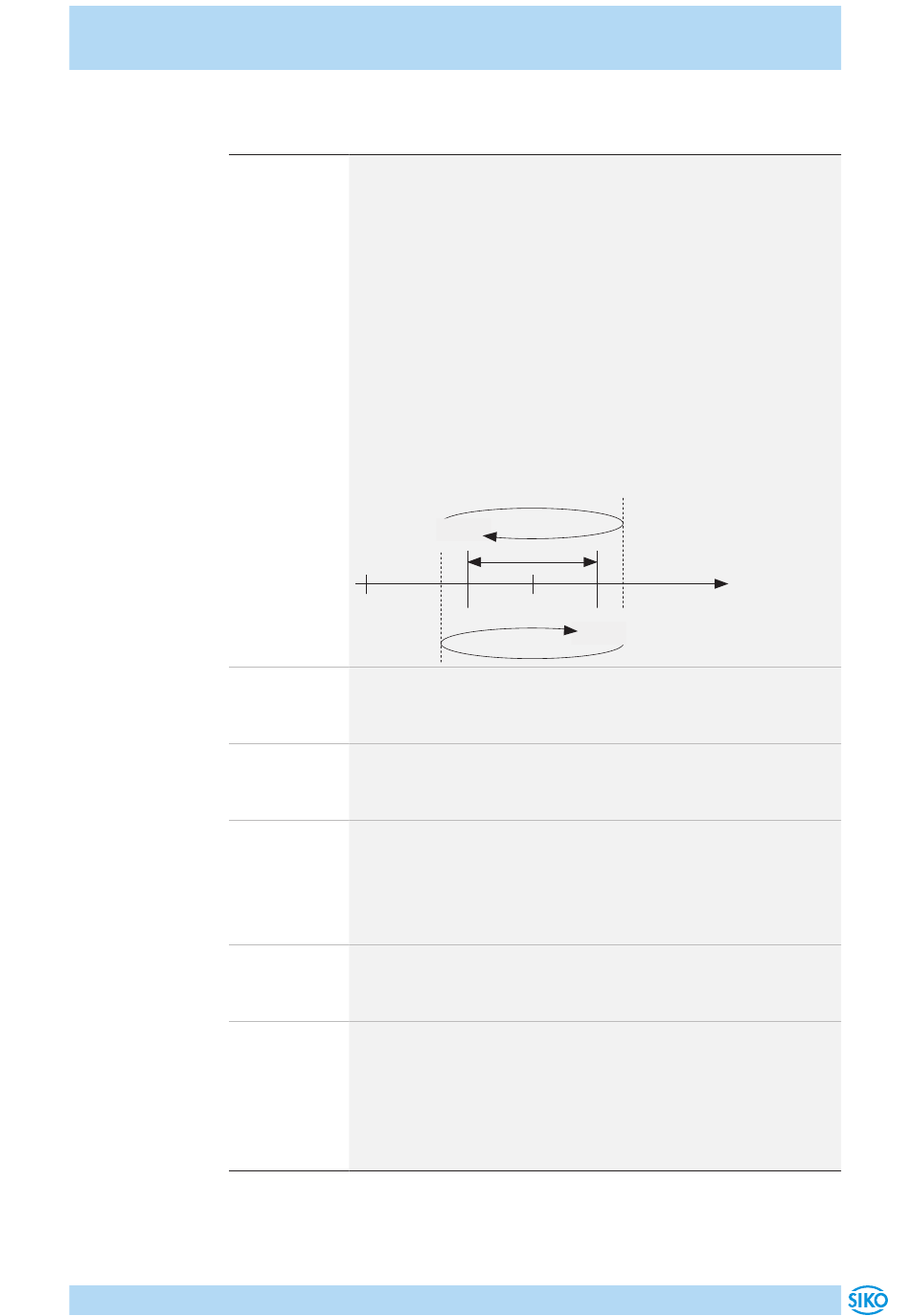

ROTARY: This function is intended for rotary measuring
arrangements (using a magnetic ring MR500), where loop
travel must be conducted to compensate spindle play. The
function defines the direction from which the target value
is driven to and the value by which it must be exceeded if
travel was beyond the range of validity. To attain compen-
sation of spindle play, the target value must be traveled
to always from the same side (=loop travel). The direction
and the value are defined by the 'LOOP' parameter.
+ 1
RANGE
Target value
0
- 1
filled bar is displayed)
Value range: 0.01 mm ... 99.99 mm
Defines the range of target proximity (= display of the
arrows and the bar)
Value range: 0.01 mm ... 99.99 mm
Defines the excess loop travel (= value that must be
exceeded to compensate spindle play)
-: travel from below
+: travel from above
Value range: 0.01 mm ... 99.99 mm
Display of the loop travel orientation sign (display of
arrow and bar)
Value range: ON, OFF
Battery monitoring: indication by the electronic display,
whether a backup battery is connected. The battery sta-
tus is transferred in the protocol with every query by the
master. The battery symbol is displayed when the battery
should be replaced.
Value range: ON, OFF
English 19
