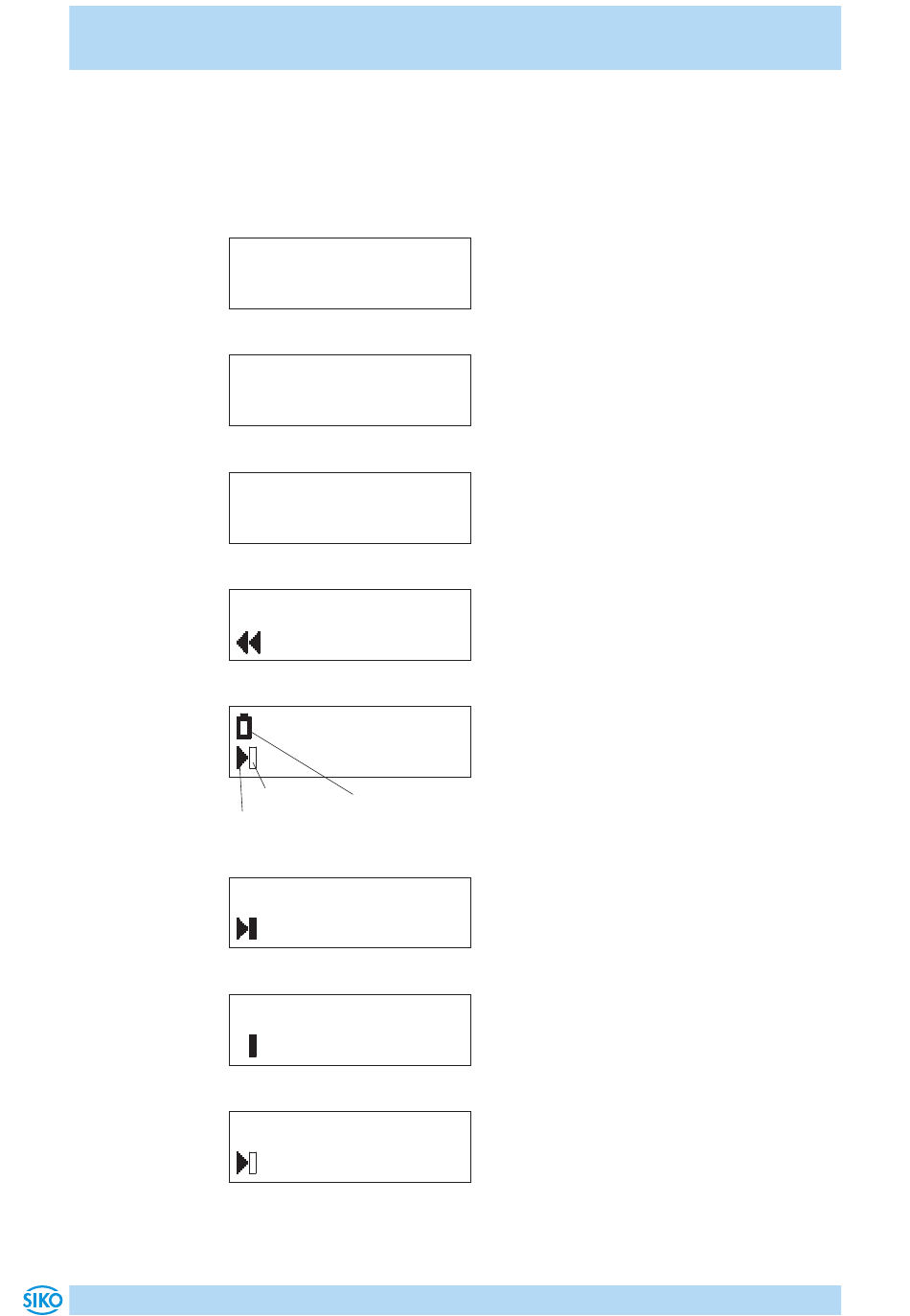

16 Display description
4 Display description
The MA501 has a DOT matrix display. The display and the individual sym-
bols will be explained below.
Switching on
MA501
Upload
ADDR 00
SV 1.02
Display in the normal mode
167.9
Display in the normal mode 'incremental measurement'
Display of target value
200.0
Battery status:
Target bar
Replace backup battery
Direction arrow
Approximate to target value
200.0
205.0
Actual value = target value
200.0
200.0
Display of difference value
204.9
Example: target value = 200 mm
MA501-SW02 · Date 31.03.2017 · Art. No. 84935 · Mod. status 263/16
Address
Software version
0.5
Target value
97.5
Actual value
Target value
Actual value
Target value
Actual value
Difference value =
4.9
Actual value - target value
Actual value
